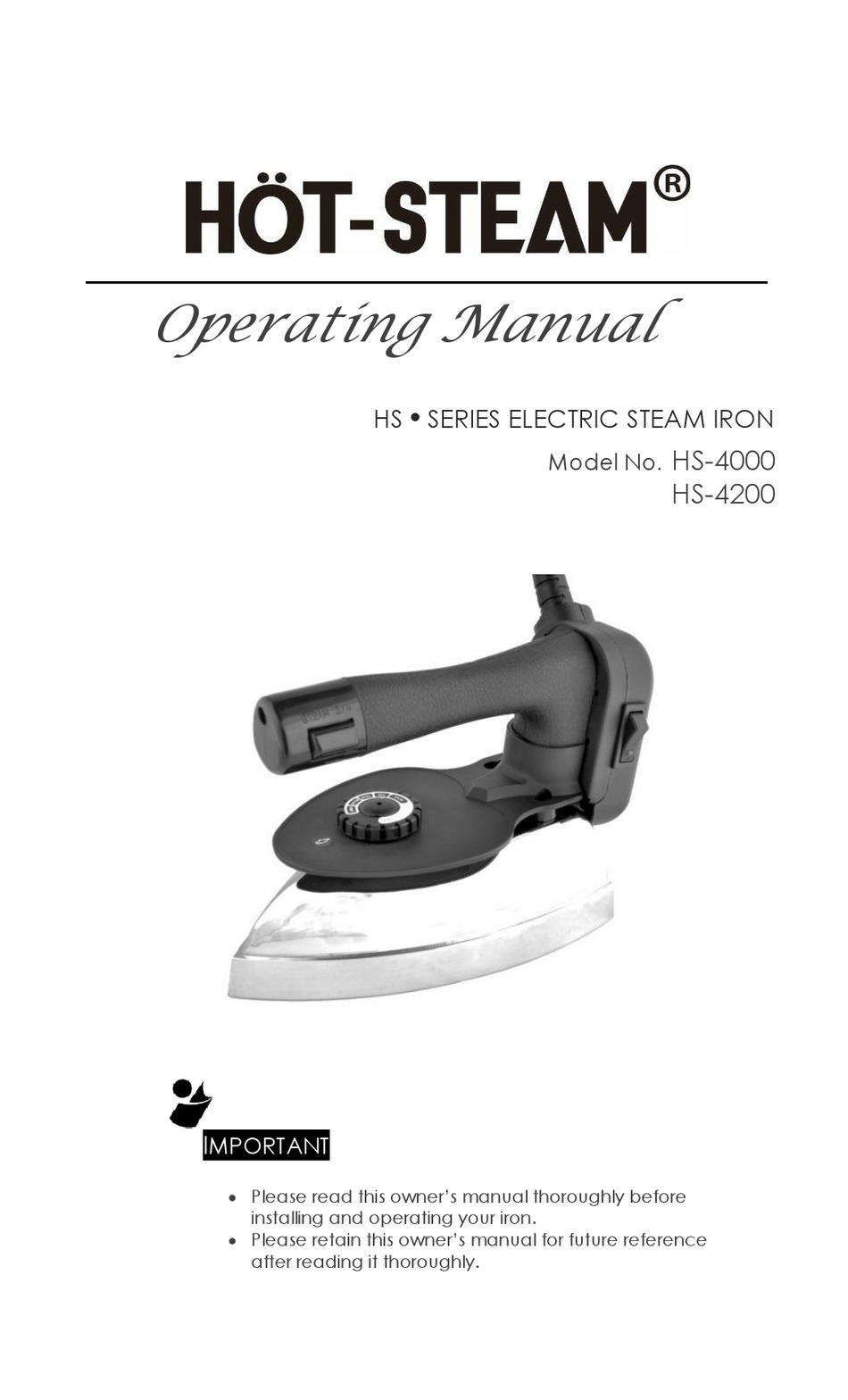

- Page 1 Operating Manual SERIES ELECTRIC STEAM IRON HS-4000 Model No. HS-4200 MPORTANT • Please read this owner’s manual thoroughly before installing and operating your iron. • Please retain this owner’s manual for future reference after reading it thoroughly.
- Page 2 OPERATING MANUAL Hö t-Steam® HS Series – Model No. HS4000, HS4200 Thank you for purchasing the Hö t-Steam® HS Series HS-4000 Model No. Electric Steam Iron. Please read this instruction manual carefully before using the iron to ensure its longest possible life. Table of Contents A.
- Page 3 Mod.HS4000 Hot-Steam® Electric Steam Iron (Consult to manufacturer’s manual when connecting a different iron brand) • 4-P Plug Wiring Instructions Connecting iron (Mod.HS4000) to a steam regulator (Mod.SP3 Hot-Steam® ) (Consult to manufacturer’s manual when connecting a different steam regulator brand) (Male 4-P Plug) •...
- Page 4 Mod.HS4000 Hot-Steam® Electric Steam Iron (Consult to manufacturer’s manual when connecting a different iron brand) • 4-P Plug Wiring Instructions Connecting iron (Mod.HS4000) to a steam regulator (Mod.SP3 Hot-Steam® ) (Consult to manufacturer’s manual when connecting a different steam regulator brand) (Male 4-P Plug) •...
- Page 5 OPERATING MANUAL Hö t-Steam® HS Series – Model No. HS4000, HS4200 D. OPERATION & USE IMPORTANT Initially, you may see water leaking out of the iron. This is not an iron malfunction. It may take few seconds to heat and evaporate the remaining condensation from previous use.
- Page 6 OPERATING MANUAL Hö t-Steam® HS Series – Model No. HS4000, HS4200 E. MAINTENANCE • Once finished operating the iron, press the Microswitch to release any remaining steam inside the iron. • Be sure to clean the base of the iron regularly. Keep the base clean of dust and adhered starch-residues.
- Page 7 OPERATING MANUAL Hö t-Steam® HS Series – Model No. HS4000, HS4200 EXPLODED VIEW...
- Page 8 OPERATING MANUAL Hö t-Steam® HS Series – Model No. HS4000, HS4200 PARTS BREAKDOWN Ref# Item# Description HS401 Sole Plate Assembly HS402 Fitting for Sole Plate Assembly HS403 Tap and Threaded Bolt HS404 Lead Wires (Set of 2) HS405 Thermostat HS406 Screw for Thermostat HS407...
- Page 9 OPERATING MANUAL Hö t-Steam® HS Series – Model No. HS4000, HS4200 ELECTRIC DIAGRAM MOD. HS4000 ELECTRIC DIAGRAM MOD. HS4200...
- Page 10 No defective iron or part may be returned to Hö t-Steam® for repair or replacement without prior written authorization from Hö t-Steam® . For warranty service, contact an Authorized Distributor from whom the Hö t-Steam® Electric Steam Iron was purchased. www.hot-steam.com Copyright© 2019 Hö t-Steam® All rights reserved...
