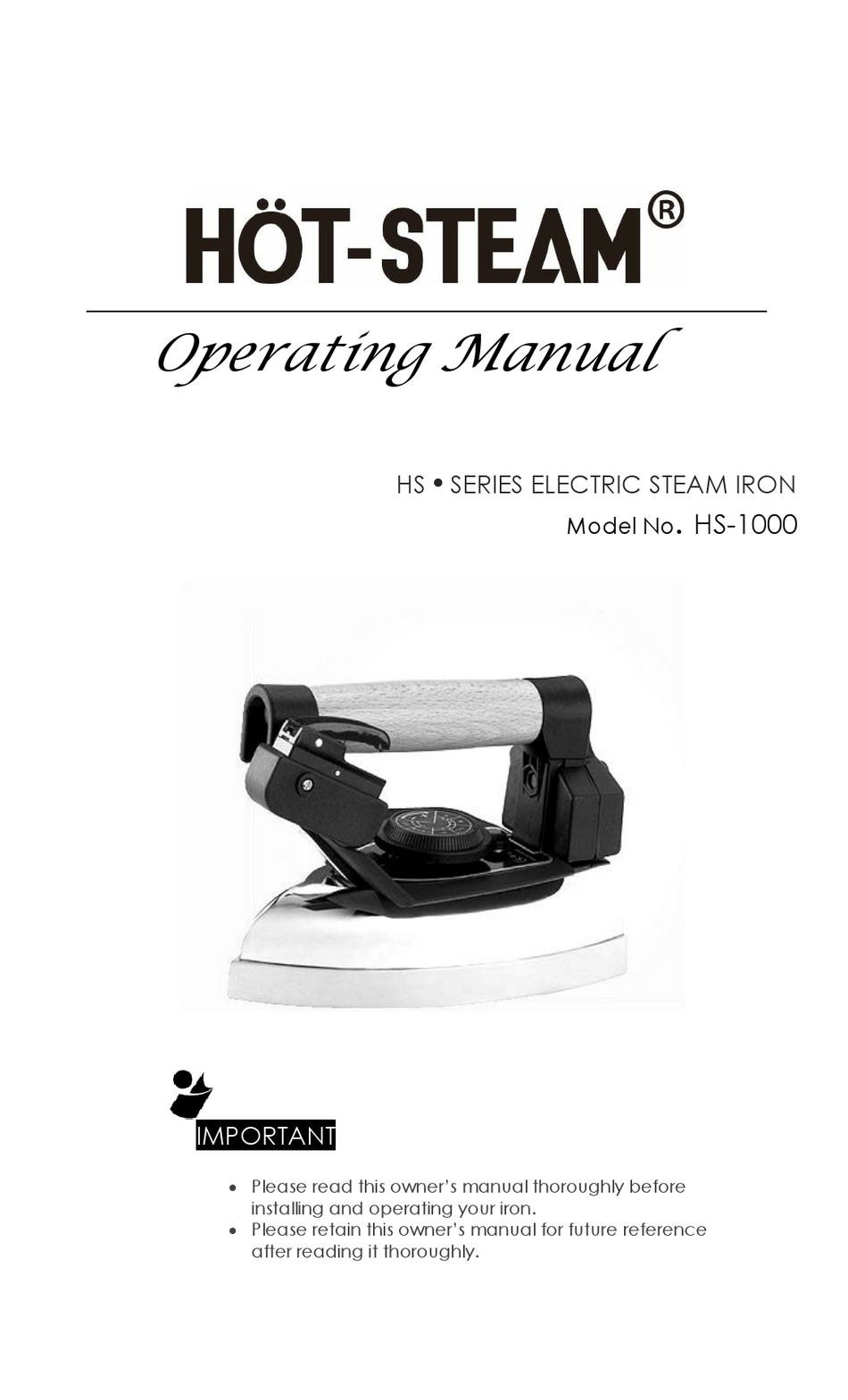

- Page 1 Operating Manual SERIES ELECTRIC STEAM IRON HS-1000 Model No IMPORTANT • Please read this owner’s manual thoroughly before installing and operating your iron. • Please retain this owner’s manual for future reference after reading it thoroughly.
- Page 2 OPERATING MANUAL Hö t-Steam® HS Series – Model No. HS1000 Thank you for purchasing the Hö t-Steam® HS Series Electric Steam Iron. Please read this instruction manual carefully before using the iron to ensure its longest possible life. Table of Contents A.
- Page 3 Solenoid (110V) or (220V) Green/Yellow Ground • 4-P Plug Wiring Instructions Connecting iron (Mod.HS1000) to a steam regulator (Mod.SP3 Hot-Steam® ) (Consult to manufacturer’s manual when connecting a different steam regulator brand) Green/Yellow White Hot (+) 110V Blue Hot (+) 220V...
- Page 4 OPERATING MANUAL Hö t-Steam® HS Series – Model No. HS1000 C. OPERATION & USE IMPORTANT Initially, you may see water leaking out of the iron. This is not an iron malfunction. It may take few seconds to heat and evaporate the remaining condensation from previous use.
- Page 5 OPERATING MANUAL Hö t-Steam® HS Series – Model No. HS1000 D. MAINTENANCE • Once finished operating the iron, press the Microswitch to release any remaining steam left inside the iron. • Be sure to clean the base of the iron regularly. Keep the base clean of dust and adhered starch-residues.
- Page 6 OPERATING MANUAL Hö t-Steam® HS Series – Model No. HS1000 PARTS BREAKDOWN Ref# Item# Description HS101 Screw for Thumb Switch HS102 Thumb Switch Cover HS103 Microswitch HS104 Front Crown Nut HS105 Front Handle End HS106 Thumb Switch Wire (Set of 2) HS107 Cork Handle HS108...
- Page 7 OPERATING MANUAL Hö t-Steam® HS Series – Model No. HS1000 EXPLODED VIEW...
- Page 8 No defective iron or part may be returned to Hö t-Steam® for repair or replacement without prior written authorization from Hö t-Steam® . For warranty service, contact an Authorized Distributor from whom the Hö t-Steam® Electric Steam Iron was purchased. www.hot-steam.com Copyright© 2019 Hö t-Steam® All rights reserved...
