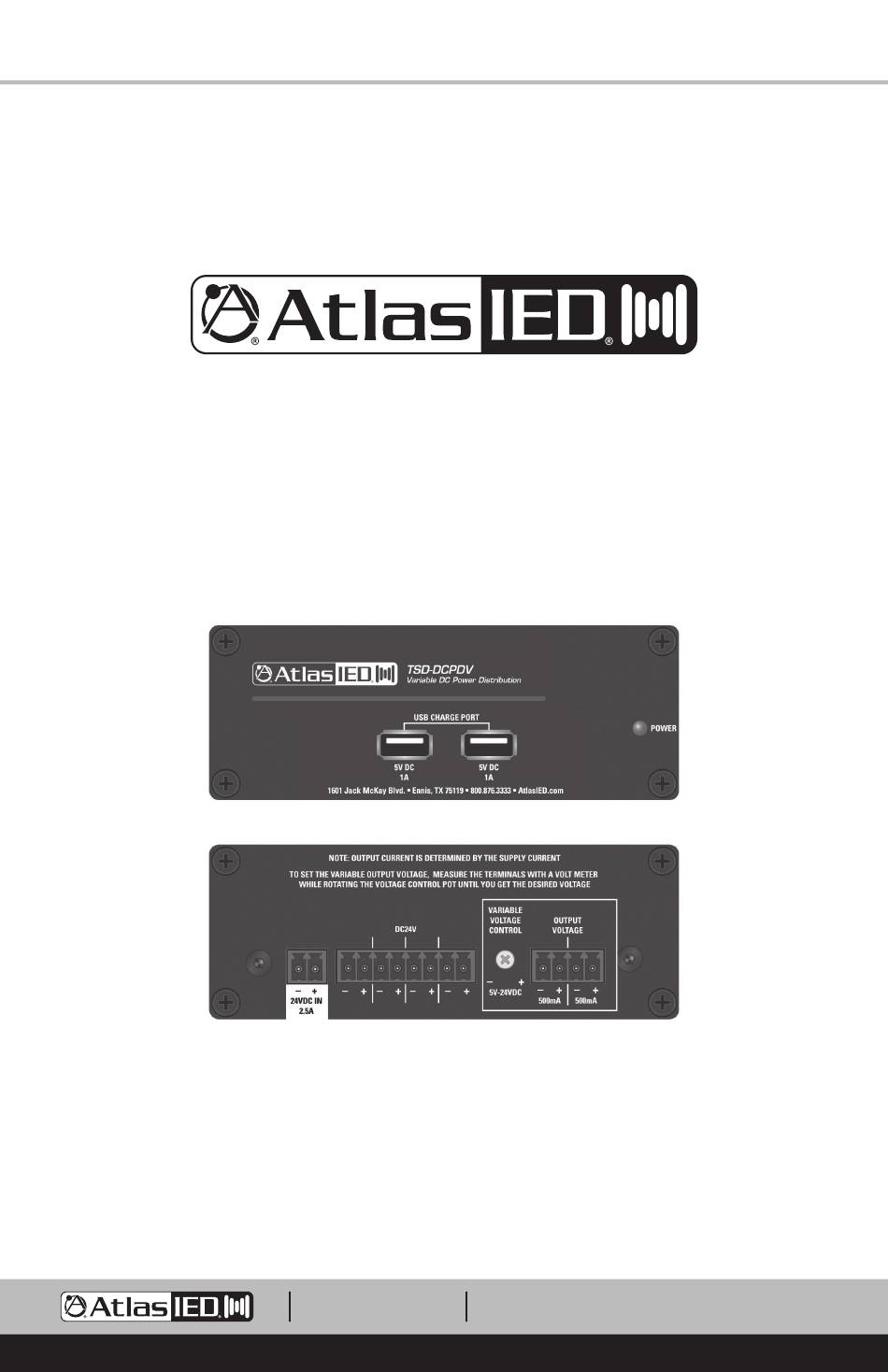

- Page 1 TSD-DCPDV DC Power Distribution with Fixed & Variable Outputs 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 1 –...
-
Page 2: Key Features
The current output also depends on the power supply current rating. The TSD-DCPDV is part of a full line of AtlasIED Time Saving Devices. These compact (1.5" x 4" x 2.75") units are designed to solve some of the common audio system problems in the easiest and in the most efficient and cost-effective way. -
Page 3: Front Panel
TSD-DCPDV Owner’s Manual Front Panel 1. USB Charge Ports Connect USB devices to these 2 ports. Maximum current draw from each port is 1A at 5VDC. Note: These USB charge ports may not charge all devices. 2. Power LED Illuminates BLUE when 5-24VDC power is present. -
Page 4: Rear Panel
TSD-DCPDV Owner’s Manual Rear Panel TSD input / output connections are removable for easy system wiring. The connector has a 3.5mm pitch between pins. 1. DC Power Input Each TSD that requires DC power comes with a 2 position connector for an external 24VDC power supply (sold separately). -
Page 5: Cable Management
TSD-DCPDV Owner’s Manual Cable Management Knob and Security Cover All front panel level controls feature a removable knob that can be replaced with an included security cover. Follow these steps to prevent potentiometer damage or unwanted changes. 1. Knob Installation - Turn the potentiometer shaft fully counter-clockwise. Align the knob indicator to the lowest setting on the panel and the potentiometer shaft slot. - Page 6 TSD-DCPDV Owner’s Manual Mounting Listed below are the ways to mount the TSD and the optional accessories that can be purchased. 1. Velcro™ - Each unit includes two 2" x 2" pieces of industrial-grade Velcro™ with adhesive backing to adhere to any flat surface. Clean all surfaces before applying the adhesive side of the Velcro™.
-
Page 7: Optional Mounting Accessories
TSD-DCPDV Owner’s Manual Optional Mounting Accessories 1. TSD-RMK 19" Width Rack Mount Kit - For 19" rack mounting, AtlasIED offers an optional rack mount kit, the TSD-RMK. This rack mount kit can support up to four TSD units. The kit includes three blank panels designed to fill any unused slots. - Page 8 TSD-DCPDV Owner’s Manual 3. TSD-RRMK Rear Rack Mounting Kit - For complete flexibility in mounting a TSD or TSD external power supplies the optional TSD-RRMK is available. The TSD-RRMK can support mounting of either two larger TSDs with external power supplies or up to 4 TSD models.
-
Page 9: Block Diagram
TSD-DCPDV Owner’s Manual Block Diagram DC 24V OUT DC 24V OUT AUTO RESET DC 24V THERMAL SWITCH 5V - 24VDC DC TO DC ADJUSTABLE POWER OUPUT VOLTAGE SUPPLY 2X0.5A VARIABLE VOLTAGE CONTROL AUTO RESET THERMAL SWITCH DC TO DC DC 5V OUT... - Page 10 TSD-DCPDV Owner’s Manual System Type DC Power Distribution with Fixed & Variable Outputs Inputs DC Voltage Input 1A - 3A, 24V DC, 3A Max Connection Removable 2 Position Captive Screw 3.5mm Spacing Outputs DC Voltage Output Fixed 24V DC, Current Output Related to Input Power Supply and Load Connection Qty 4, Removable 2 Position Captive Screw 3.5mm Spacing...
- Page 11 TSD-DCPDV Owner’s Manual Included Accessories Velcro™ Qty 2, Industrial-Grade 2" x 2" Multi-Mount Plate Qty 1, Includes Two (2) M3 x 4mm Screws Cable Retainer Qty 2 Optional Accessories TSD 24VDC Power Supply TSD-RMK 1 RU 19" Width Rack Mount Panel (Supports 4 TSD Units)
-
Page 12: Dimensional Drawings
TSD-DCPDV Owner’s Manual Dimensional Drawings 4" (101mm) TSD-DCPDV Variable DC Power Distribution 1.5" (39mm) USB CHARGE PORT POWER 5V DC 5V DC 1601 Jack McKay Blvd. • Ennis, TX 75119 • 800.876.3333 • AtlasIED.com NOTE: OUTPUT CURRENT IS DETERMINED BY THE SUPPLY CURRENT... - Page 13 TSD-DCPDV Owner’s Manual Notes 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 13 –...
- Page 14 TSD-DCPDV Owner’s Manual Notes 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 14 –...
- Page 15 TSD-DCPDV Owner’s Manual Service Should your TSD-DCPDV require service, please contact the AtlasIED warranty department through the online warranty claim process. Online Warranty Claim Processes Warranty submissions are accepted at: https://www.atlasied.com/warranty_statement where the type of return Warranty or Stock return can be selected.
-
Page 16: Limited Warranty
TSD-DCPDV Owner’s Manual Limited Warranty All products manufactured by AtlasIED are warranted to the original dealer / installer, industrial or commercial purchaser to be free from defects in material and workmanship and to be in compliance with our published specifications, if any. This warranty shall extend from the date...
