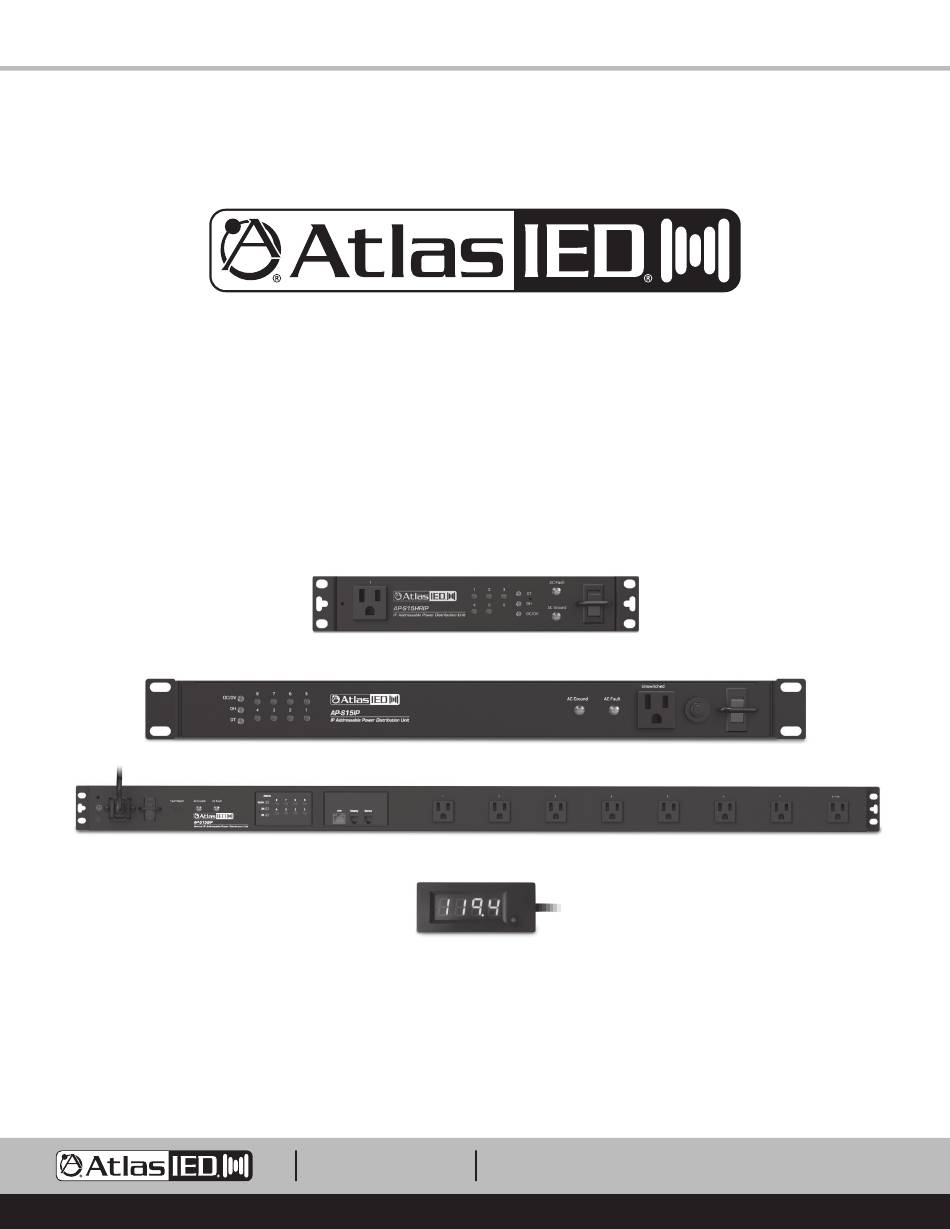

- Page 1 AP-S15HRIP / AP-S15IP / AP-S158IP IP Power Distribution Systems AP-S15HRIP AP-S15IP AP-S158IP AP-LEDIP 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 1 –...
- Page 2 Unit Features and Installing the AP-IP Power Distribution System Rack Mount Ears - Install the power strip rack ears (if applicable) and secure the unit in an equipment rack. Note: The AP-S15HRIP is shipped with a rack mount kit so it can be rack mounted into an AtlasIED wall mount half rack or a 19" rack. It can be mounted alone or with any AtlasIED half width products such as the DPA-102PM, PA40G / PA60G, or MA40G / MA60G in a 19"...
- Page 3 AP-S15HRIP / AP-S15IP / AP-S158IP Quick Start Guide Opening the Carton Each carton contains: • AP-IP power distribution system • Rack ears & screws (Except AP-S158IP) • Power cord • Power cord retainer clip & screws • Temperature / humidity sensor probe •...
- Page 4 AP-S15HRIP / AP-S15IP / AP-S158IP 10.4" (264.1mm) Quick Start Guide Switched Alarms AC Fault Finding the IP Address 1.75" Using the AP-LEDIP external display is the fastest way to discover the IP Address. Plug the AP-LEDIP display into the AP-IP power distribution...
- Page 5 AP-S15HRIP / AP-S15IP / AP-S158IP Quick Start Guide Web GUI User Interface Grouped Outlets Sequence On / Off Button Temperature, Humidity, Voltage, and Current Page Selections Readings Alarm Status Outlet On / Off Status There are 5 pages to the AP-IP Power Strip WEB Interface: Status, Alarm Settings, Schedule Setting, Network Settings and Configuration settings.
- Page 6 Rack Mounting the AP-S15HRIP A rack kit is included with the purchase of the AP-S15HRIP . The AP-S15HR width fits most rack cabinets that are classified as half-width. There are no industry standards for these types of racks and rack widths may vary between manufactures. The AP-S15HRIP can be mounted into an AtlasIED wall mount half-width rack or a 19”...
- Page 7 AP-S15HRIP / AP-S15IP / AP-S158IP Quick Start Guide Configuration 1 - Mounting a Single 1 RU Model Remove amplifier from electrical source. 2. Remove the four feet. 3. Align and secure the chassis extension plate to a rack mount ear with the enclosed screws and nuts.
- Page 8 Note: Not all 1RU half rack models can be joined next to each other. The following combinations can be joined: ASP-MG2240, DPA102PM, MA40G, MA60G, PA40G, PA60G, AP-S15HR, AP-S15RTHR, and AP-S15HRIP are interchangeable. Note: Two AP-S15HR units cannot be rack mounted together side-by-side.
- Page 9 AP-S15HRIP / AP-S15IP / AP-S158IP Quick Start Guide Front Panel Joiner Plate Not used on PA702 or PA1001G 4-40 x Flat Head Screw AP-S15HRIP System Diagram Example 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM...
- Page 10 Outlet On / Off Switches Momentary Manual NEMA5-15R Switched (Programmable), Qty 8 (AP-S15HRIP Qty 5) AC Outlets Note: Outlet 8 Can Be Used to Activate a Fan Triggered by Temperature Range of On: 51° - 176°F / Off: 50° - 175°F...
- Page 11 North America UL60950-1, CAN/CSA C22.2 No. 60950-1, UL1449 Note 1: The AP-S15HRIP , AP-S15IP , and AP-S158IP meet the Californian law SB-327 . Each unit is shipped with a unique password that can be changed for accessing the device over the network. They are LAN (Local Area Network) devices and require a firewall or VPN for secure connection outside the network operation.
-
Page 12: Limited Warranty
AP-S15HRIP / AP-S15IP / AP-S158IP Quick Start Guide Limited Warranty All products manufactured by AtlasIED are warranted to the original dealer/installer, industrial or commercial purchaser to be free from defects in material and workmanship and to be in compliance with our published specifications, if any. This warranty shall extend from the date of purchase for a period of three years on all AtlasIED products, including SOUNDOLIER brand, and ATLAS SOUND brand products except as follows: one year on electronics and control systems;...
