Summary of Contents for Atlas IED TSD-DCPD

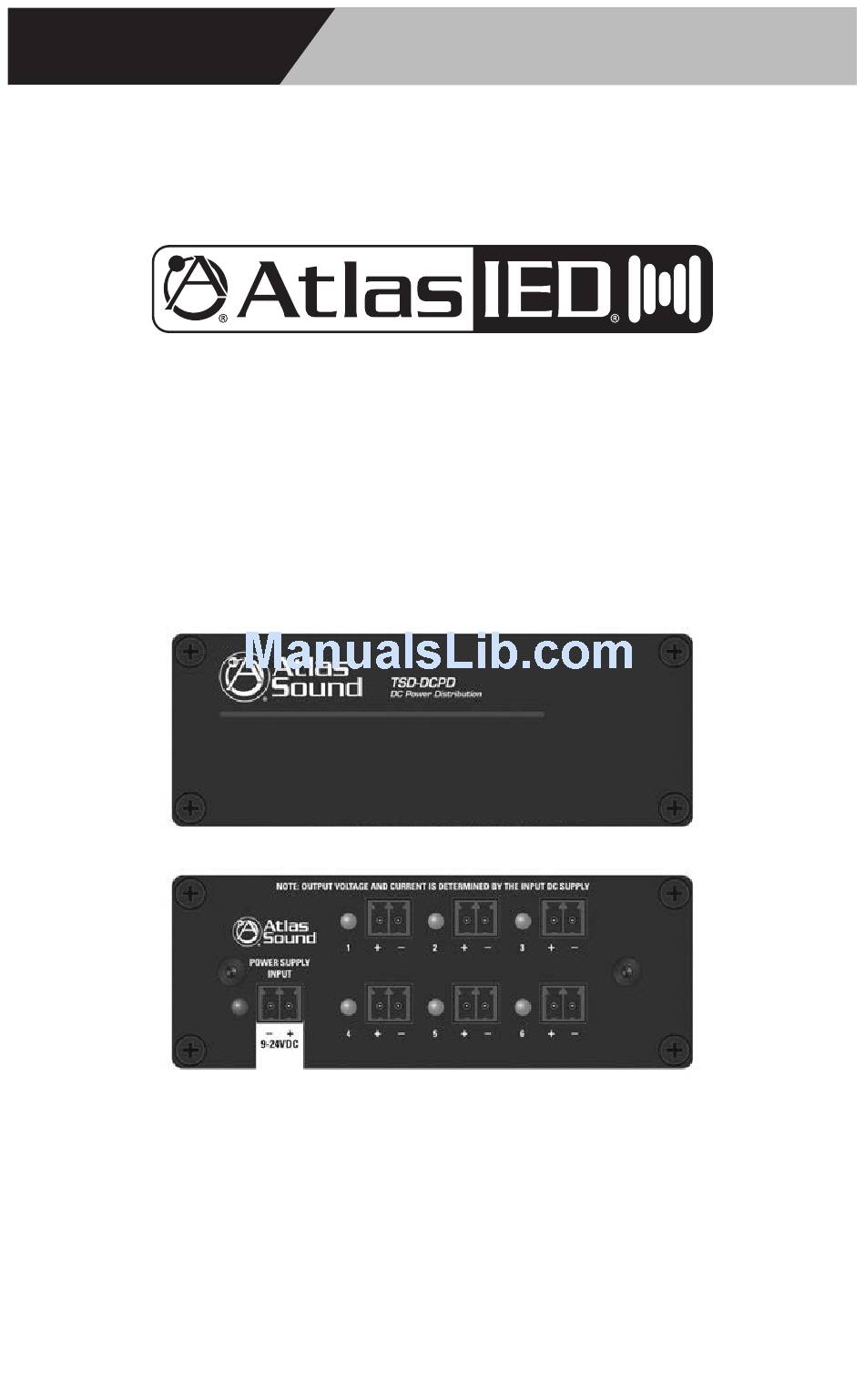

- Page 1 TSD-DCPD Owner’s Manual 1x6 DC Power Distribution TSD-DCPD 1x6 DC Power Distribution with Isolation & Filtering...
-
Page 2: Installation
1x6 DC Power Distribution Description The AtlasIED TSD-DCPD DC Power Distribution Block is designed to save cost and wiring clutter in installations where multiple DC power supplies with the same voltage are required. Each unit has one input and 6 isolation outputs. Each output has additional filtering to negate any AC ripple that may be present in the DC signal. -
Page 3: Rear Panel Description
TSD-DCPD Owner’s Manual 1x6 DC Power Distribution Rear Panel Description TSD Input/Output connections are removable for easy system wiring. The connector has a 3.5mm pitch between pins. 1. DC Power Input - Each TSD that requires DC power comes with a 2 position connector for an external 24VDC power supply (sold separately). -
Page 4: Cable Management
TSD-DCPD Owner’s Manual 1x6 DC Power Distribution Cable Management Knob and Security Cover All front panel level controls feature a removable knob that can be replaced with an included security cover. Follow these steps to prevent potentiometer damage or unwanted changes. - Page 5 TSD-DCPD Owner’s Manual 1x6 DC Power Distribution Mounting Listed below are the ways to mount the TSD and the optional accessories that can be purchased. 1. Velcro™ - Each unit includes two 2" x 2" pieces of industrial-grade Velcro™ with adhesive backing to adhere to any flat surface. Clean all surfaces before applying the adhesive side of the Velcro™.
-
Page 6: Optional Mounting Accessories
TSD-DCPD Owner’s Manual 1x6 DC Power Distribution Optional Mounting Accessories 1. TSD-RMK 19" Width Rack Mount Kit - For 19" rack mounting, AtlasIED offers an optional rack mount kit, the TSD-RMK. This rack mount kit can support up to four TSD units. The kit includes three blank panels designed to fill any unused slots. Use the included hardware to mount the TSD... - Page 7 TSD-DCPD Owner’s Manual 1x6 DC Power Distribution 3. TSD-RRMK Rear Rack Mounting Kit - For complete flexibility in mounting a TSD or TSD external power supplies the optional TSD-RRMK is available. The TSD-RRMK can support mounting of either two larger TSDs with external power supplies or up to 4 TSD models. Note: Only use the included M3 x 4mm screws as other screws may be too long and will cause internal damage to the TSD.
-
Page 8: Block Diagram
TSD-DCPD Owner’s Manual 1x6 DC Power Distribution Block Diagram NOTE: OUTPUT VOLTAGE AND CURRENT IS DETERMINED BY THE INPUT DC SUPPLY VOLTAGE 1 DC OUT 2 DC OUT 3 DC OUT 9~24V DC IN 4 DC OUT 5 DC OUT... -
Page 9: Specifications
TSD-DCPD Owner’s Manual 1x6 DC Power Distribution Specifications Description 1x6 Power Distribution Block with Isolation & Filtering Chassis Color Black Chassis Material Aluminum Inputs DC Voltage Input 9V - 24V DC, 5A Max Connection Removable 2 Position Captive Screw 3.5mm Spacing...
