Clas Ohlson YH-6036 Assembly Instructions

Workbench
Art.no. 40-7292 Model YH-6036
Please read the entire instruction manual before use and save it for future reference. We reserve the right for any errors in text or images and for making any
necessary technical changes to this document. If you should have any questions concerning technical problems please contact our Customer Services.
Parts
Item Description
A Leg (897 mm)
B Rubber foot
C Short batten (592 mm)
D Long batten (1200 mm)
E Drawer mounts (605 mm)
F Front panel of drawer
G Back panel of drawer
H Left panel of drawer
(with drawer runner) (455 mm)
I Right panel of drawer
(with drawer runner) (455 mm)
J Drawer handle
K Bottom panel of drawer (1104 x 450 mm)
L Worktop (1210 x 605 mm)
M Bottom shelf (1210 x 605 mm)
Drawer handle fixings: M4 x 10 bolts,
M4 nuts, washers
GREAT BRITAIN For consumer contact, please visit www.clasohlson.co.uk and click on customer service.

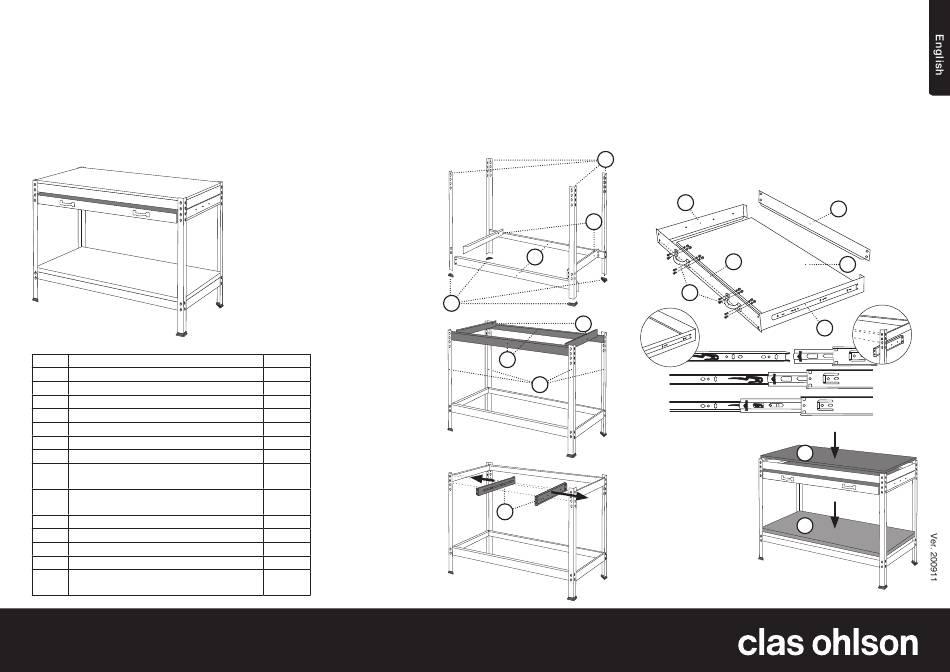

Assembly
1. Assemble:
Rubber feet
(B), lower short
battens (C) and
the lower long
battens (D) onto
the legs (A).
B
2. Assemble: Upper
short battens (C)
and upper long
Qty battens (D) onto
the legs (A).
4
4
4
4
2
1
1
3. Assemble: Drawer
1
mounts (E), left
and right.
1
2
1
1
1
24
4. Drawer assembly: First assemble the front (F), back (G),
sides (H) and (I). Attach the handles (J). Insert the bottom
A
(K) of the drawer last. Extend the drawer runners and mount
the drawer into the drawer mounts.
C
D
C
D
A
5. Insert the shelf (L)
and worktop (M).
E
H
G
F
K
J
I
L
M
