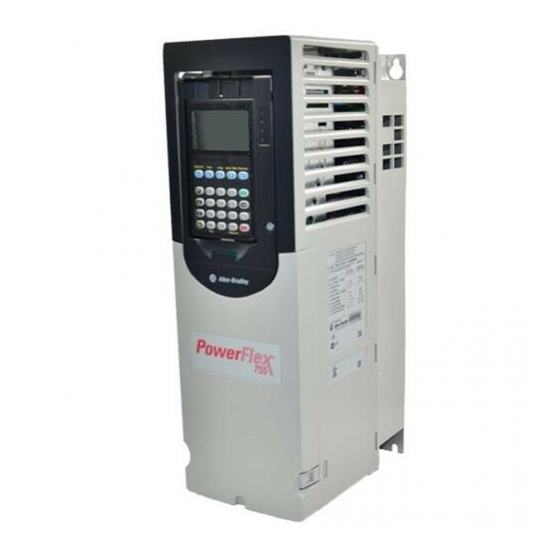

Installation Instructions Original Instructions Remote Monitoring for PowerFlex 755 AC Drive Catalog Numbers 9300-VSELV, and 9300-VSELVCELL Topic Page Remote Monitoring Kit Field Mounting Instructions Connection Instructions Apply Power Verify Internet Connection...
Page 2
Remote Monitoring for PowerFlex 755 AC Drive ATTENTION: Read this document and the documents listed in the Additional Resources section about installation, configuration and operation of this equipment before you install, configure, operate or maintain this product. Users are required to familiarize themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards. Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to be carried out by suitably trained personnel in accordance with applicable code of practice.
The gateway device is the bridge between your PowerFlex 755 drive and the Rockwell Automation remote monitoring platform. The version ordered determines the gateway device. Catalog number 9300-VSELV uses an Ethernet connection to access the Internet, for which the Netbiter EC310 is provided.
Remote Monitoring for PowerFlex 755 AC Drive Connection Instructions Both the Netbiter EC310 and EC350 have two Ethernet ports, labeled WAN and LAN. For both models, the LAN port is used to connect to the PowerFlex 755 via EtherNet/IP, using the supported topologies on page When installing a Netbiter EC310, the Ethernet WAN port connects to the enterprise Internet network.
Page 5
Remote Monitoring for PowerFlex 755 AC Drive EC350 Network Wiring Possible LAN Topologies IMPORTANT When installing a Netbiter EC310, the Ethernet WAN port connects to your internet network. Your internet firewall is required to allow a Port 443 outbound connection to https://www.ramonitoring.com and xx.netbiter.net (the “xx”...
Remote Monitoring for PowerFlex 755 AC Drive Apply Power The Netbiter EC310/EC350 devices require a 12...48V DC power source to be powered on. Connect the Netbiter to the power source as described in the schematic below. EC310/EC350 Power and Ground Wiring Verify Internet Connection Rockwell Automation Publication GMSP-IN002A-EN-P - March 2016...
Page 7
Remote Monitoring for PowerFlex 755 AC Drive Status Indicator Descriptions Status Indicator Color Indication Possible Action Port disabled RS485/RS232 Steady red Port failure Contact support Steady green Port enabled from Netbiter Argos Steady green Connected to Netbiter Argos Dynamic IP Address - check for DHCP server on network Uplink/WAN Steady red Incorrect IP settings...
