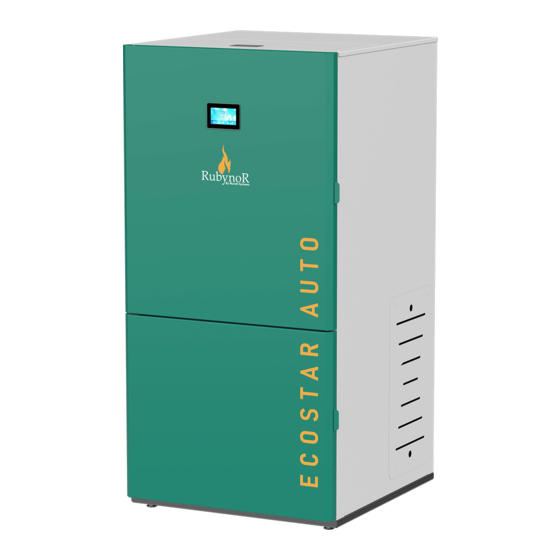

- Page 1 Mareli Systems ECOSTAR AUTO 50 KW Pellet BOILER Assembly and exploitation manual...
-
Page 2: Safe Distances
Mareli Systems Observing the prescriptions of the present manual is in the user’s favour and is one of the warranty conditions. Compliance with this instruction is in the interest of the con- sumer and one of the warranty terms. INSTRUCTIONS FOR SECURITY: •... - Page 3 Mareli Systems 1. PURPOSE e boiler is purposed to heat domestic and public premises by the means of pellets. e boiler is equipped with a steel water jacket designed for heating systems with water temperature up to 90º C at a maximum super pressure up to 0,15 Mpa. Tests are run at pressure of 0,3 Mpa.
- Page 4 Mareli Systems...
- Page 5 Mareli Systems...
- Page 6 Mareli Systems m³ Φ6 Φ8 Pellet Bunker Display Manual cleaning mechanism for the turbulators Automatic cleaning mechanism for the turbulators (OPTIONAL) Combustion Chamber Igniter Automatic cleaning Mechanism for the brazier Ashtray...
- Page 7 Mareli Systems 3. ASSEMBLY 3.1 General conditions. All national, regional and European requirements for safe operation of the appliance must be respected during installation and operation. Prior to installation, load capacity of the place where the boiler will be intended must be ensured.
- Page 8 Mareli Systems CHECK ITEMS BEFORE INSTALLATION Chimney exit Chimney Connection to chimney Connection to the boiler Security e chimney distances revision door Inlet air e oor...
- Page 9 • “Mareli Systems” provides a warranty and out of warranty service and replacement of the water jackets. • e warranty is not valid in case of a boiler with a swollen water jacket which is a result of pressure increase in the system and improper connecting.
- Page 10 Mareli Systems Example scheme for installation of an anti-condensation valve. It is recommended that the valve be at least 50 C. At the discretion of the installer, a valve with a higher return water temperature may be installed. 3.3 Assembly of the duct components.
- Page 11 Mareli Systems Chimney e chimney or the duct component must conform with the following requirements: to be airtight, waterproof and prop- erly insulated, to be constructed with materials resistant to the normal mechanical wear and to the heat coming from the (MAX) combustion products and condensation.
- Page 12 Mareli Systems 3.4 Types of connection to the chimney Chimney exit Moisture channel Chimney ermal insulation External wall Connection to chimney Flue gas connection Heat generator e chimney revision door “T” connection...
-
Page 13: Combustion Chamber
Mareli Systems 3.5 Air intake Suction pipe or air intake is placed in the back and has a circular section with a diameter of 48 mm. e combustion air can be aspirated: • From the camera, as long as it is near an air intake communicating with the outside wall hav- ing a minimum area of 100 cm2, properly positioned and protected by a grid. - Page 14 Mareli Systems ECOSTAR AUTO CLEANING THE PELLET TANK...
- Page 15 Mareli Systems ECOSTAR AUTO Le inspection door ECOSTAR AUTO Right inspection door...
- Page 16 Mareli Systems HOT WATER OUTLET PUMP 2 230V/50HZ PUMP COLD WATER SAFETY VALVE EXHAUST...
- Page 17 Mareli Systems ECOSTAR AUTO IT IS MANDATORY THAT AT EACH EMPTYING OF THE ASH CONTAIN ERS, THE COMBUSTION BOX IS ALSO CLEANED.
- Page 18 Mareli Systems ECOSTAR AUTO EMPTY THE FIRST ASH CONTAINER...
- Page 19 Mareli Systems ECOSTAR AUTO REMOVE THE 2 OTHER ASH CONTAINERS FROM THE SIDES.
- Page 20 Mareli Systems ECOSTAR AUTO EMPTY THE 2 SIDE ASH CONTAINERS...
-
Page 21: Maintenance Program
Mareli Systems Maintenance program At each Twice Weekly Annual ignition per season Combustion chamber Clean the ashtray Glass e Door Clean the ue gas outlet Door seals Chimney 5 Safety and unexpected risks Terms of danger may arise in the following cases: •... - Page 22 Mareli Systems K400 TOUCH SCREEN DISPLAY 1. HOMEPAGE Date & Time Errors Code 11:24 Fri 14 Oct 2016 Er.01 21° Main Temperature IGNITION Functioning State 65° Main ermostat ON/OFF Settings Display Info Chrono...
- Page 23 Mareli Systems Main Commands In order to go to Homepage 2 a horizontal swipe must be performed to the right side of the screen. 12:18 Fri 14 Oct 2016 Er.01 Igniter Auger Pump 1 Pump 2 Aux1 Aux1 Aux3 Pump 3...
-
Page 24: Error List
Mareli Systems Quick visualization of the system main function 2. ERROR LIST 12:18 Fri 14 Oct 2016 Blocking or non-blocking error Er.01 21° is highlighted with a and the related error code. When pressed the error window opens IGNITION 65°... -
Page 25: Main Commands
Mareli Systems IGNITION Blocking / Removing Error 65° 4. MAIN COMMANDS 11:24 Ven 14 Ott 2016 Er.01 ON/OFF Menu 21° Screen image : Swipe to Ignite • System power ON • System power OFF IGNITION • Alarms reset 65° 11:24 Ven 14 Ott 2016 Er.01... - Page 26 IGNITION Mareli Systems 65° 5. CHRONO 12:18 12:18 Ven 14 Ott 2016 Ven 14 Ott 2016 Er52 Er52 Chrono - Daily CHRONO 22° 22° 22° 22° 22° 22° 22° 22° 22° 22° 22° 22° 22° 22° 22° 22° 22° 22°...
- Page 27 Mareli Systems 5. INTERNAL MENU STRUCTURE From the display Menu the user can access the panel settings and select one of 24 languages Brightness. Minimum brightness: this function allows you to choose the minimum brightness level which the device automatically sets to a er 30 sec. of inactivity.
- Page 28 FAN ENCODER N.O. RELAY FOR THE CLEANING MECHANISM POWER CABLE COMBUSTION PROGRAMMER COMBUSTION FAN 2 PUMP 1 IGNITER PROTECTION AGAINST OVERHEATING OF WATER PROTECTION RETURN FLAME BUFFER PROBE AUGER BOILER PROBE 31 GND MOTOR FOR CLEANING 29 GND N.C. MECHANISM N.O.
- Page 32 MARELI SYSTEMS disclaims any responsibility for possible inaccuracies contained in this manu- al if they are due to printing or transcription errors. We reserve the right to make any change that appears to be necessary or useful without harm the essential characteristics.
