Marvel 30iMA-BS Dimensions

www.dexpress.com
This Data Sheet Includes Information On
Marvel
• Product Model Number (s):
Clear Ice Machine:
30iMA-BS and 30iMA-R-B-BRPE-SSP
• Dimensions (Actual Size)
Overall depth NOT including handle:
Depth not including door:
Height at full leg adjustment:
Height at 0" leg adjustment:
Height without legs installed:
Toe Kick height:
Floor to top of grille:
Door swing at 90°:
Recommended opening width:
Recommended opening depth:
Recommended opening height:
• Additional Information
• Electrical requirements: 120 volts, 3 amps running
max. 15 amp circuit required.
• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.
• Door is reversible in field.
• Shipping weight: 100 pounds.
• U.L. Listed.
• You need to have the following materials for proper
installation: 1/4" OD copper tubing, shutoff valve and
5/8" ID rubber drain tube.
• Water supply : 1/4" OD copper tube (subject to local
codes). 20-100 PSI. For water connection, allow 2"
behind the unit.
• Drain : 5/8" ID rubber tube (subject to local codes)
Unit must drain into a 1 1/2" ID minimum stand pipe.
• Does not accept custom panels.
• 30iMA-BS :Black cabinet, black door frame, stainless
door panel, professional style handle (add 2 1/8" to
depth).
• 30iMA-R-B-BRPE-SSP :Black cabinet, black door
frame, stainless door panel, clip on handle (add 7/8" to
depth).
Accessories:
• Drain pump kit: P/N 42242436.
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of deter-
mining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2007.
• NEVER reuse Data Sheets. Data Sheets are subject to change without
notice. Dimension Express is a FREE service bureau and is updated daily,
it makes far more sense to spend the time necessary to request new Data
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
DIMENSION EXPRESS
•
•
23 5/8"
21 1/4"
32 1/2"
31 3/4"
31 1/2"
Width: 14 7/8"
3 3/4"
8"
16 3/8"
15"
24"
32"
•
318

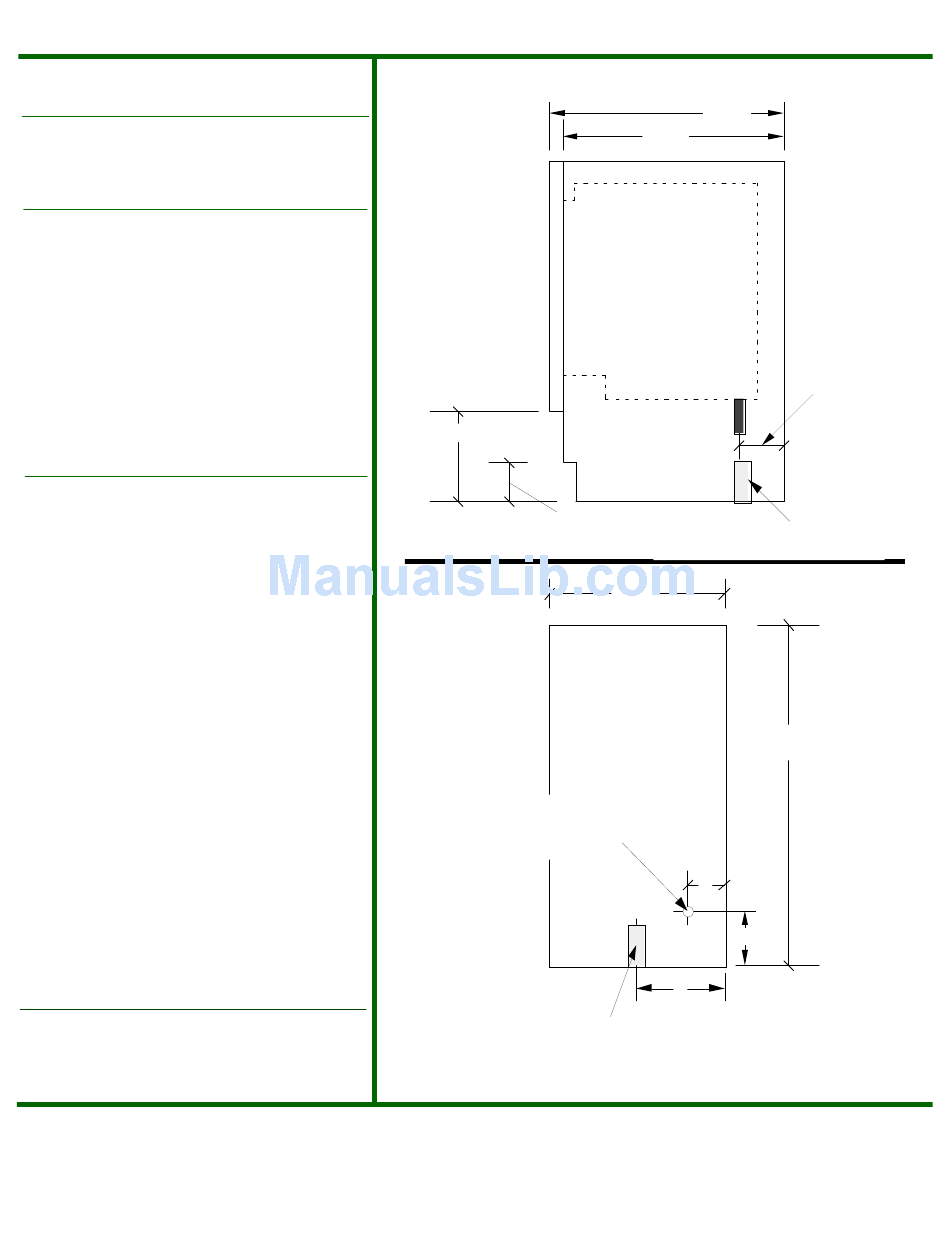

Side View
(not to scale)
Top of Grille: 8"
3 3/4"
Back View
(not to scale)
Water supply : 90°
1/4" OD waterline
compression fitting
at water valve
Drain: 1 1/2" minimum ID stand pipe
up to 3" minimum high above floor.
• Call Dimension Express if you have any questions at (800) 940-2059 •
• Always refer to a current Code at a Glance or manufacturer directory •
• Data Sheet codes change on the first of each quarter at 12:01am •
Fax on Demand (925) 284-3558
23 5/8"
21 1/4"
1 1/2" minimum ID stand pipe up to
3" maximum high above floor
(Subject to local code)
14 7/8"
32 1/2" Max
31 1/2" Min
2"
5 1/4"
8"
(Subject to local code)
BN • A318 • • 070612 • 115526 • 47026
2"
