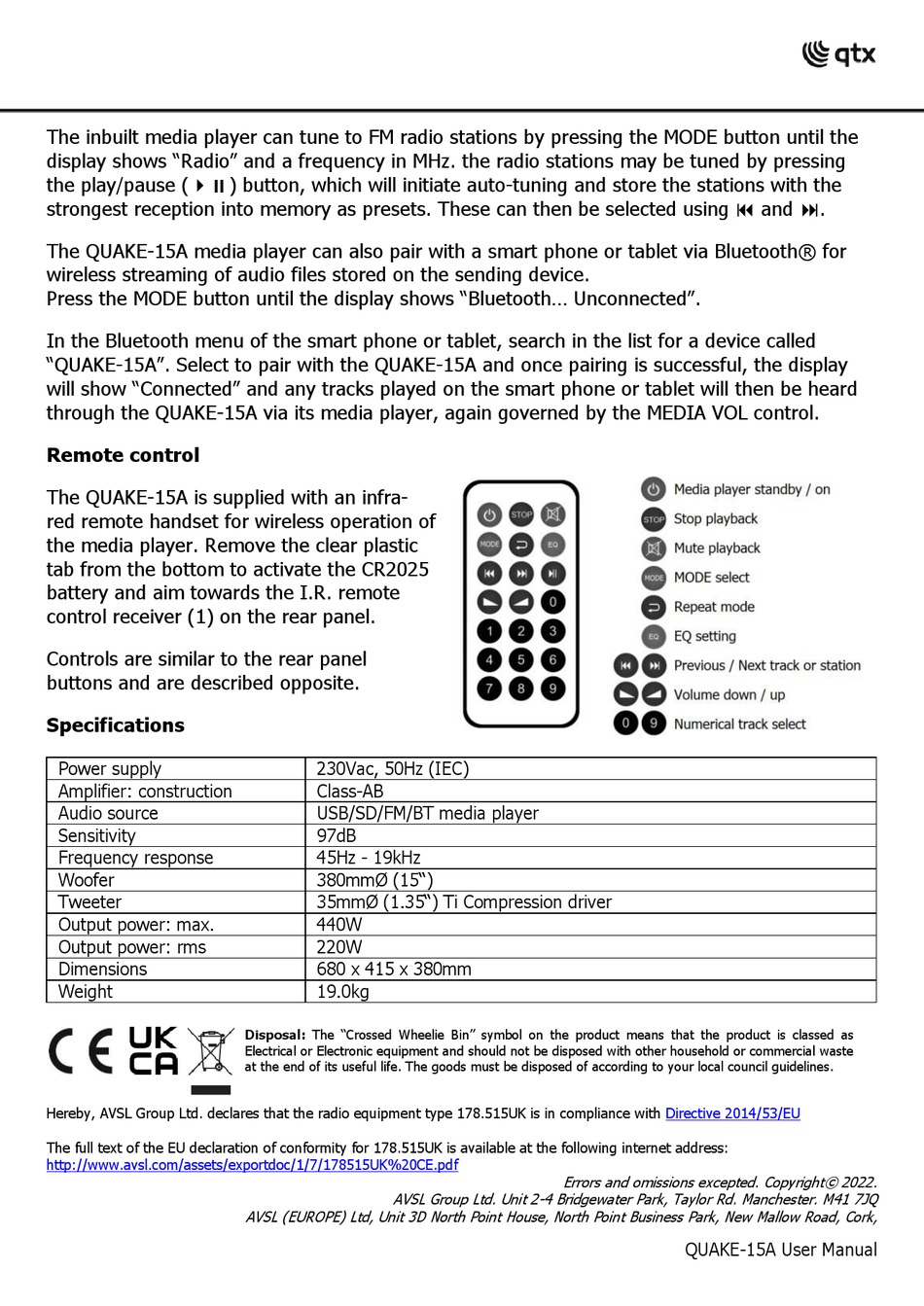

The inbuilt media player can tune to FM radio stations by pressing the MODE button until the
display shows "Radio" and a frequency in MHz. the radio stations may be tuned by pressing
the play/pause () button, which will initiate auto-tuning and store the stations with the
strongest reception into memory as presets. These can then be selected using and .
The QUAKE-15A media player can also pair with a smart phone or tablet via Bluetooth® for
wireless streaming of audio files stored on the sending device.
Press the MODE button until the display shows "Bluetooth... Unconnected".
In the Bluetooth menu of the smart phone or tablet, search in the list for a device called
"QUAKE-15A". Select to pair with the QUAKE-15A and once pairing is successful, the display
will show "Connected" and any tracks played on the smart phone or tablet will then be heard
through the QUAKE-15A via its media player, again governed by the MEDIA VOL control.
Remote control
The QUAKE-15A is supplied with an infra-
red remote handset for wireless operation of
the media player. Remove the clear plastic
tab from the bottom to activate the CR2025
battery and aim towards the I.R. remote
control receiver (1) on the rear panel.
Controls are similar to the rear panel
buttons and are described opposite.
Specifications
Power supply
Amplifier: construction
Audio source
Sensitivity
Frequency response
Woofer
Tweeter
Output power: max.
Output power: rms
Dimensions
Weight
Hereby, AVSL Group Ltd. declares that the radio equipment type 178.515UK is in compliance with
The full text of the EU declaration of conformity for 178.515UK is available at the following internet address:
http://www.avsl.com/assets/exportdoc/1/7/178515UK%20CE.pdf
230Vac, 50Hz (IEC)
Class-AB
USB/SD/FM/BT media player
97dB
45Hz - 19kHz
380mmØ (15")
35mmØ (1.35") Ti Compression driver
440W
220W
680 x 415 x 380mm
19.0kg
Disposal: The "Crossed Wheelie Bin" symbol on the product means that the product is classed as
Electrical or Electronic equipment and should not be disposed with other household or commercial waste
at the end of its useful life. The goods must be disposed of according to your local council guidelines.
AVSL Group Ltd. Unit 2-4 Bridgewater Park, Taylor Rd. Manchester. M41 7JQ
AVSL (EUROPE) Ltd, Unit 3D North Point House, North Point Business Park, New Mallow Road, Cork,
Directive 2014/53/EU
Errors and omissions excepted. Copyright© 2022.
QUAKE-15A User Manual
