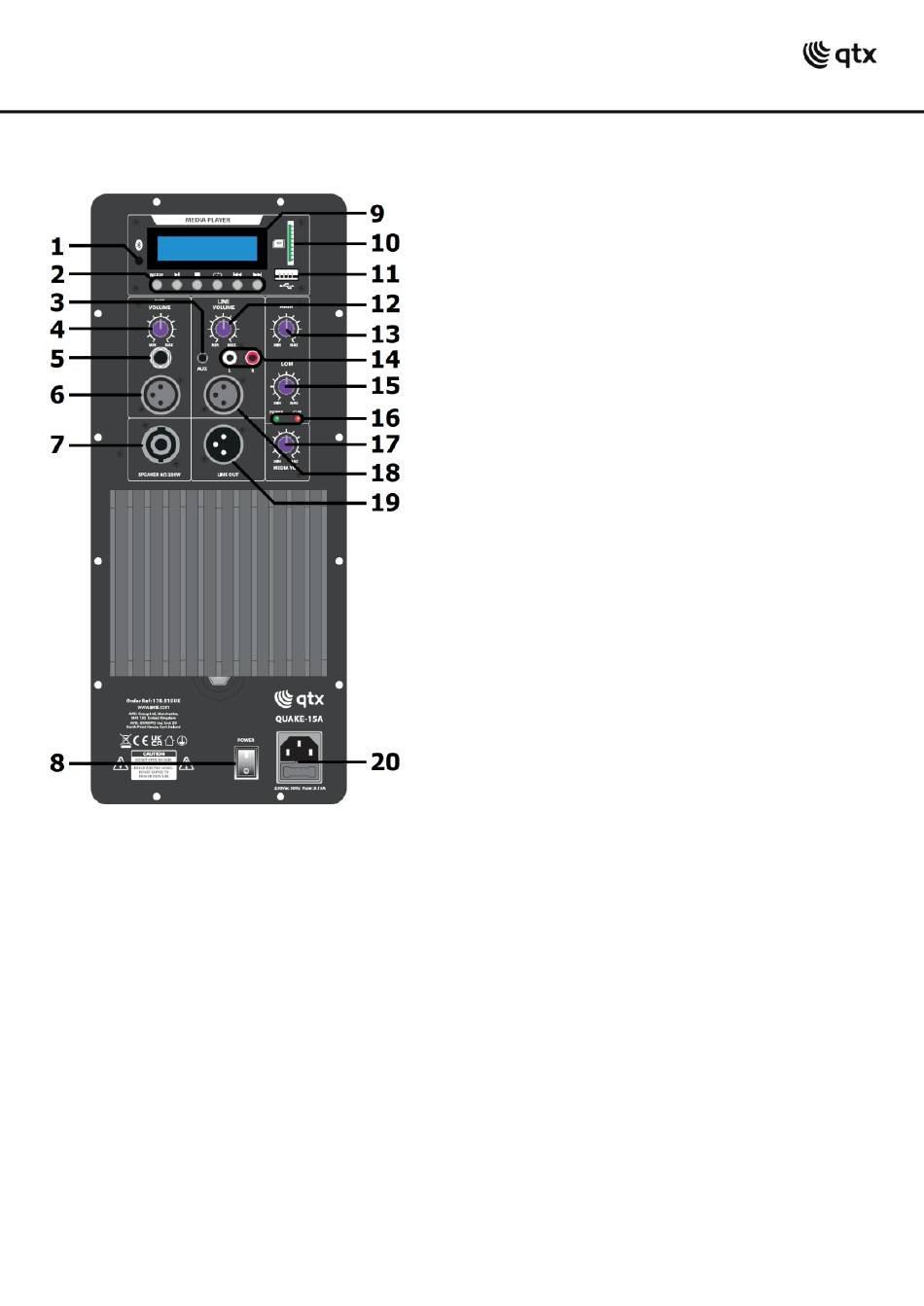

Control panel

Connections

If a microphone is to be used directly with the QUAKE-15A cabinet, this may be connected to
either the 6.3mm jack or XLR input (5, 6) on the rear panel.
For a line level input, this may be connected by RCA (14), XLR (18) or 3.5mm mini jack (3).
The QUAKE-15A is capable of sharing its output with a passive cabinet for a 2-speaker system.
Ensure that the additional cabinet is 8Ω and capable of handling up to 220W power.
Connect the passive cabinet using a Speakon lead from the rear panel speaker output (7).
If additional active cabinets are to be used, the signal from the QUAKE-15A can be linked from
the Line Out XLR, which carries a mix of all inputs (i.e. Microphone, Line In and Media player).
With power switched off (8), use the IEC lead provided to connect to the 230Vac supply (20).
1 I.R. remote control receiver
2 Media player controls
3 3.5mm AUX input
4 Microphone input volume control
5 Microphone input 6.3mm jack
6 Microphone input XLR
7 Optional 8Ω speaker output
8 Power on/off switch
9 Media player display
10 SD card slot
11 USB port
12 Line/Aux input volume control
13 High EQ control
14 Line input 2 x RCA
15 Low EQ control
16 Power on and Clip LED indicators
17 Media player volume control
18 Line input XLR
19 Line output XLR (mix of all inputs)
20 IEC power inlet & fuse holder
