Klein NCVT-6 Instructions

FIG. 1
6
1.888.610.7664
FIG. 2
C D
C
B
7
A
5
ENGLISH
4

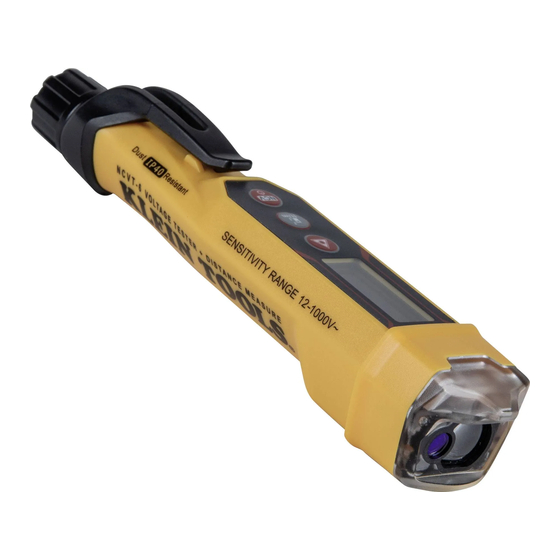

TESTER (FIG. 1)
1. NCV On/Off Button
2. Laser Distance Meter Control Button
3.
Change Units / Reference Point Button
2
4. LCD Display
5.
3 NCV Indicator
6.
Laser Distance Meter
1 1
7. NCV Antenna
8.
Pocket Clip
9.
O-ring Seal
10.
2x AAA Batteries (Included)
8
11.
Battery Cap
• Detects AC voltage from 12V to 1000V with visual & audible
indicators
• Measures distance from 2 in. to 65.6 ft. (51 mm to 20 m)
9
Durability
Ingress Protection
Drop Protection
Safety Rating
Symbols on tester
Warning – Risk of electric shock
10
Risk of danger. Important information: It is important that users of this tester read, understand, and
follow all warnings, cautions, safety information, and instructions in this manual before operating or
servicing this tester. Failure to follow instructions could result in death or serious injury.
Double insulated
Read instructions
This product has been independently tested by Intertek and meets applicable published
standards.
CAT IV
For measurements performed at the source of low-voltage installation and
11
outside lines.
D
www.calcert.com
15
10 20
5 25
0 30
INSTRUCTIONS – Non-Contact
E H F
Voltage Tester with Laser distance
meter
G
NCVT-6
LCD (FIG. 2)
A.
Measurement
B.
Laser Active
C.
Ref. Point #1
D.
Ref. Point #2
E.
NCV On
F.
Battery Status
G.
Units (ft, in, m)
H.
Silent Mode
NOTE: There are no user-
serviceable parts inside
tester.
IP4
0
6.6
ft. (2
m)
CAT
IV 1000
V
