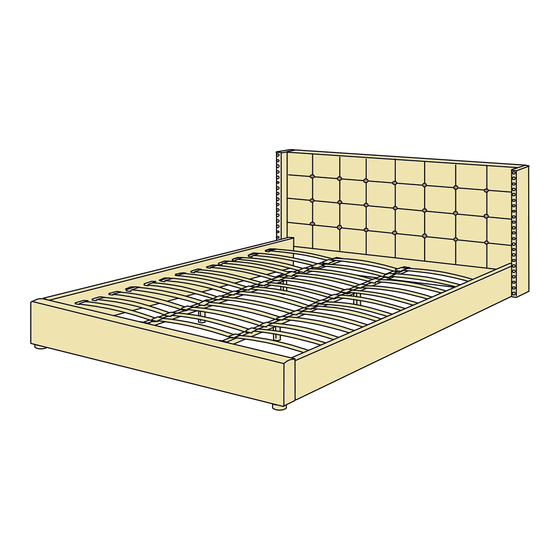

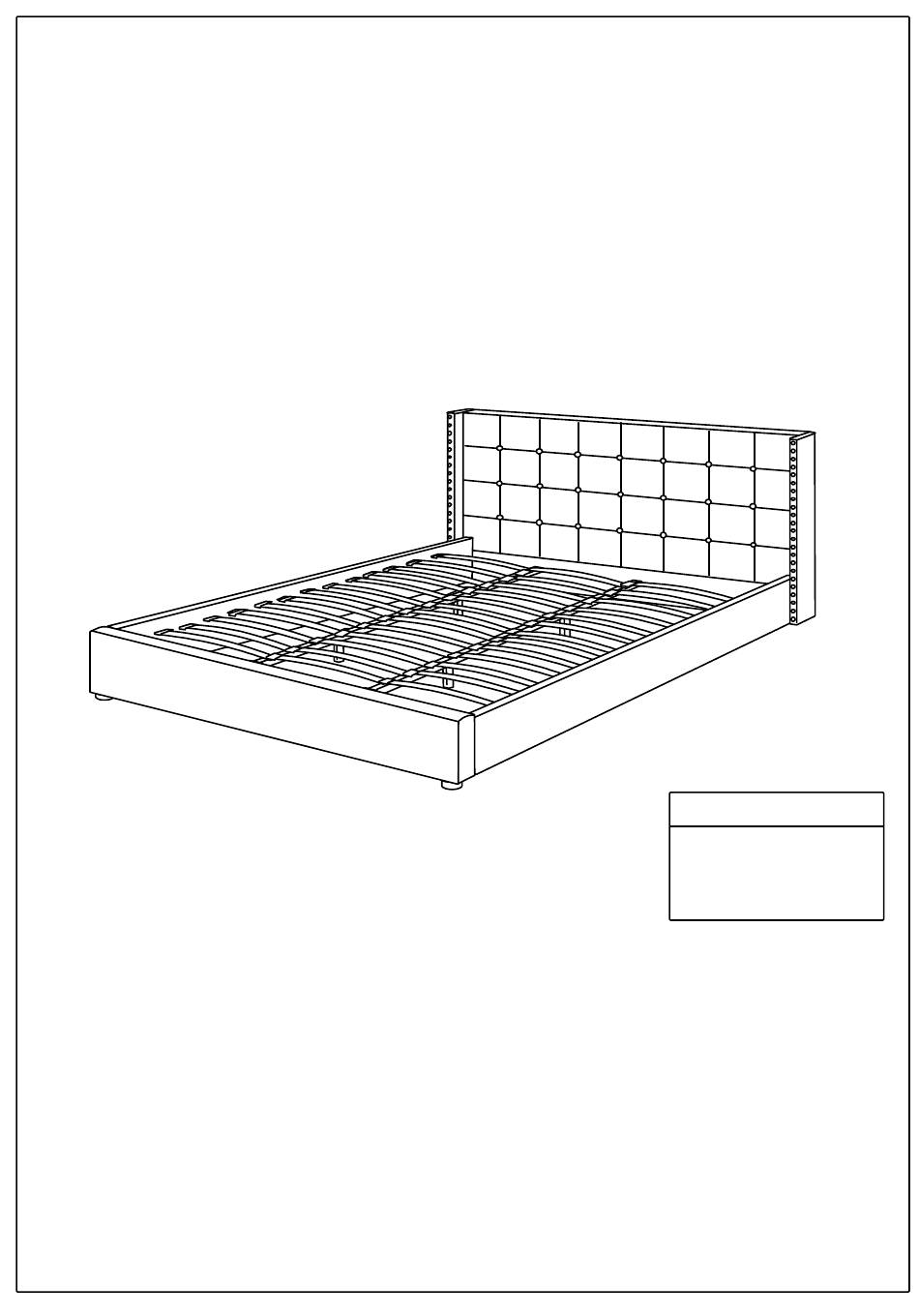

- Page 1 Please keep for future reference only ASSEMBLY INSTRUCTION Dimension Height : 1025 mm Width : 1970 mm Length : 2180 mm LUNA KING BED Important : Please read these instruction carefully before starting assembly. LN-KGL183 / Page 1...
- Page 2 IMPORTANT TIPS AND MAINTANANCE HARDWARE Please check you have all the fitting parts or tools listed below Fittings / Tools Quantities Fittings / Tools Quantities 8pcs 12pcs Washer Bolt M8 x 20mm 24pcs 4pcs Wood Screw x 40mm Bolt M8 x 30mm 18pcs Screw Driver M8 x 40mm...
- Page 3 PARTS Please check you have all the parts listed below Head End Gas Lift Frame(Right) Foot End Gas Lift Frame(Left) Side Panel(Right) 2pcs Gas Lift Tube Wood Slat Siderail Panel(Left) 39pcs 2pcs Centre Plastic Holder Bed Frame Side Rail 26pcs 2pcs Side Plastic Holder Bed Frame Cross Bar...
- Page 4 Hardware Needed Step 1 Bolt M8 x 30 16pcs Bolt M8 x 50 4pcs 8pcs Spring Washer 8pcs Washer Allen Key Step 2 Hardware Needed Wood Screw 4pcs Screw Driver Attached the Fabric Cover to the bottom side of the bed first, then followed by the Plastic Feet to the 4 corner of Bedend.
- Page 5 Hardware Needed Step 3 Bolt M8 x 30 8pcs Allen Key Spanner The nut to secure the gas lift tube to the mechanism part are attached on it, please remove the nut before attaching the gas lift tube to the mechanism part .
- Page 6 Step 4 Hardware Needed Bolt M8 x 20 8pcs Bolt M8 x 40 8pcs Bolt M6 x 20 8pcs 8pcs Insert Nut 8pcs Hex Nut Spanner Allen Key Screw Driver Step 5 Hardware Needed Bolt M8 x 40 6pcs M8 Hex Nut 6pcs Allen Key Spanner...
- Page 7 Step 6 LN-KGL183 / Page 7...
