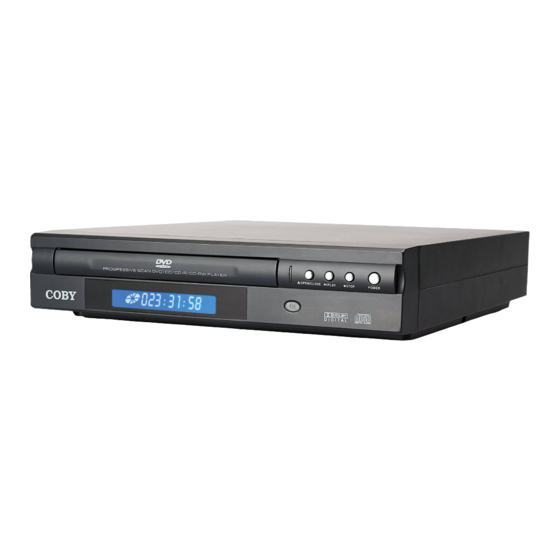

- Page 1 DVD-514 Compact 5.1-Channel Progressive Scan DVD Player Instruction Manual Please read this manual carefully before operation.
-
Page 2: Precautions
For recycling or disposal information about this product, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org. PRECAUTIONS For Customer Use: Enter below the serial number that is located on the bottom of the unit. Retain this information for future reference. Model No. Serial No. DVD-514... -
Page 3: Important.safety.instructions
IMPORTANT SAFETY INSTRUCTIONS Read these instructions carefully. Keep these instructions for future reference. Heed all warnings and follow all instructions. Do not expose to water or moisture. Clean only with a dry cloth. Keep objects away from ventilation openings. Do not block ventilation openings at any time. Do not install near any apparatus that produces heat such as stoves, radiators, amplifiers, etc. -
Page 4: Table Of Contents
TABLE OF CONTENTS PRECAUTIONS..2 IMPORTANT.SAFETY.INSTRUCTIONS... 3 TABLE.OF.CONTENTS..4 ABOUT.OPTICAL.DISCS..6 Disc Requirements ...6 Disc Care and Maintenance ...6 Handling a Disc ...6 Cleaning a Disc ...6 FEATURES..7 LOCATION.OF.CONTROLS... 8 Front Panel ...8 Rear Panel ...8 Remote Control ...9 CONNECTIONS... - Page 5 TABLE OF CONTENTS Repeat Mode...17 Repeat A-B Mode ...17 Multi-Angle/Subtitle/Audio ...17 Zoom ...17 Program ...17 DVD Program Mode...18 CD Program Mode ...18 SETUP... 19 Language Setup ...19 Screen Setup ...19 Audio Setup ...20 Custom Setup ...20 SPECIFICATIONS..21 TROUBLESHOOTING.
-
Page 6: About.optical.discs
ABOUT OPTICAL DISCS Disc Requirements This DVD player supports playback of the following discs. Type DVD-Video Discs Audio Compact Discs (CDs) JPEG CDs This unit can play back CD-R and CD-RW discs that contain audio titles or JPEG picture files. -
Page 7: Features
• Progressive Scan DVD Player • Compact, Slim Design (2” High) • Dolby Digital Decoder • 5.1-Channel Output • Digital, Optical, and Analog AV Outputs • DVD, DVD±R/RW, CD, CD-R/RW, and JPEG Compatible • NTSC/PAL Compatible • Convenient Front Panel LCD and On-Screen Display •... -
Page 8: Location.of.controls
LOCATION OF CONTROLS Front Panel Disc Tray Power Indicator Open/Close button Play/Pause button Rear Panel Audio (Front Left) Audio (Surround Left) Audio (Front Right) Audio (Surround Right) Audio (Center) Audio (Subwoofer) Audio (Digital Optical) Stop button Power button Front Panel Display Remote Control sensor Audio (Left) Audio (Right) -
Page 9: Remote Control
LOCATION OF CONTROLS Remote Control STANDBY key TITLE key SUBTITLE key MENU PBC key AUDIO key MUTE key PROGRAM key SETUP key NAVIGATION keys SLOW key PLAY/PAUSE key STOP key FWD/REV keys STEP key VOLUME keys ENTER key P-SCAN key ZOOM key A-B key REPEAT key... -
Page 10: Connections
CONNECTIONS Audio/Video Connections... -
Page 11: Standard Television Set Connection
CONNECTIONS Standard Television Set Connection The Progressive Scan connection Y/Cb/Cr Progressive Scan Video Connection Green Blue Blue Green... -
Page 12: Stereo Audio (2-Channel) Connection With Amplifier
CONNECTIONS Stereo Audio (2-Channel) Connection with Amplifier Digital Audio (5.1-Channel Connection with Digital Decoding Amplifier... -
Page 13: Getting Started
GETTING STARTED Remote Control • Refer to the diagram. Remove the bat- tery compartment cover located on the rear of the remote control. Insert batter- ies, making sure to match their polari- ties (+/-) to the markings on the inside of the compartment. -
Page 14: Basic.operations
Basic Playback Prepare the power supply. Set the Power Switch to the ON position to turn the player on. Load a disc. Press the Open/Close button to open the disc tray. Insert a disc with the label-side up. Press the Open/Close button again to close the disc tray. •... -
Page 15: Menu Navigation
BASIC OPERATIONS Menu Navigation To navigate DVD disc menus or the player’s setup menus: • Press the NAVIGATION keys (arrows) to select a desired feature or op- tion in the menu. • Press ENTER to confirm a selection in the menu. •... -
Page 16: Player.functions
Menu / Title • Press the MENU key during DVD playback to return to the DVD’s Main menu. • Press the TITLE key during DVD playback to return to the DVD’s Title menu. Setup Press the SETUP key to enter the player’s setup menu. Enter the Setup menu to adjust the play- er’s internal settings;... -
Page 17: Repeat Mode
PLAYER FUNCTIONS Repeat Mode Press REPEAT to change the repeat mode of the player. Each successive press of REPEAT will change the mode as follows: Track Folder Disc Chapter Title Disc Track Disc Repeat A-B Mode To repeat playback of a specific section of a disc (loop): Press A-B to set the desired start point (“A”) of the section to be repeated. -
Page 18: Dvd Program Mode
DVD Program Mode Load a DVD and press PROGRAM. Press the right NAVIGATION key to select the “Title” column; press the up/down NAVIGATION keys to select a title. Press the right NAVIGATION key to select the “Chapter” column; press the up/down NAVIGA- TION keys to select a chapter. -
Page 19: Setup
Enter Setup mode to adjust the various internal settings of the player. Make sure the player has been completely stopped before entering Setup mode. Press SETUP to enter Setup mode. Use the NAVIGATION keys to select a desired item. Press ENTER to confirm a selection. Press SETUP to exit Setup mode (or select EXIT and press ENTER). -
Page 20: Audio Setup
Audio Setup Use the NAVIGATION keys to highlight the desired audio selection and press ENTER to confirm. Item Sets the player’s Optical Out (audio) signal. For use with 5.1-channel re- Digital Out ceivers (see your receiver’s manuals for more details). Custom Setup Use the NAVIGATION keys to highlight the desired Custom Setup selection and press ENTER to confirm. -
Page 21: Specifications
SPECIFICATIONS Power Supply Video Signal System Video Output Audio Output Media Supported Accessories Included Unit Dimensions Specifications are subject to change without notice. AC: 100-240V Automatic Power Switching NTSC / PAL Component Video (Progressive Scan) S-Video RCA Composite Video Optical Digital Out Coaxial Digital Out RCA Stereo Out DVD, DVD±R/RW, CD, CD-R/RW, JPEG-CD... -
Page 22: Troubleshooting
If you have a problem with this player, please read the troubleshooting guide below and check our website at www.cobyusa.com for Frequently Asked Questions (FAQs) and firmware updates. If these resources do not resolve the problem, please contact Technical Support. COBY Electronics Technical Support Hours: Monday to Friday, 8:30 AM–11:00 PM EST... - Page 23 TROUBLESHOOTING The remote control doesn’t work. • Ensure that the Power Switch has been physically set to the ON position. • Ensure that there are no obstacles between the remote and the player. • Point the remote at the remote sensor on the main unit. •...
- Page 24 COBY Electronics Corp. 56-65.Rust.Street. Maspeth,.NY.11378 www.cobyusa.com. www.ecoby.com...
