Coby DVD606 User Manual

High-resolution 5.1 channel dvd player
Hide thumbs Also See for DVD606:
Table of Contents

Advertisement

Quick Links

See also: Troubleshooting
Please read carefully before operation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVD606 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coby DVD606

Summary of Contents for Coby DVD606

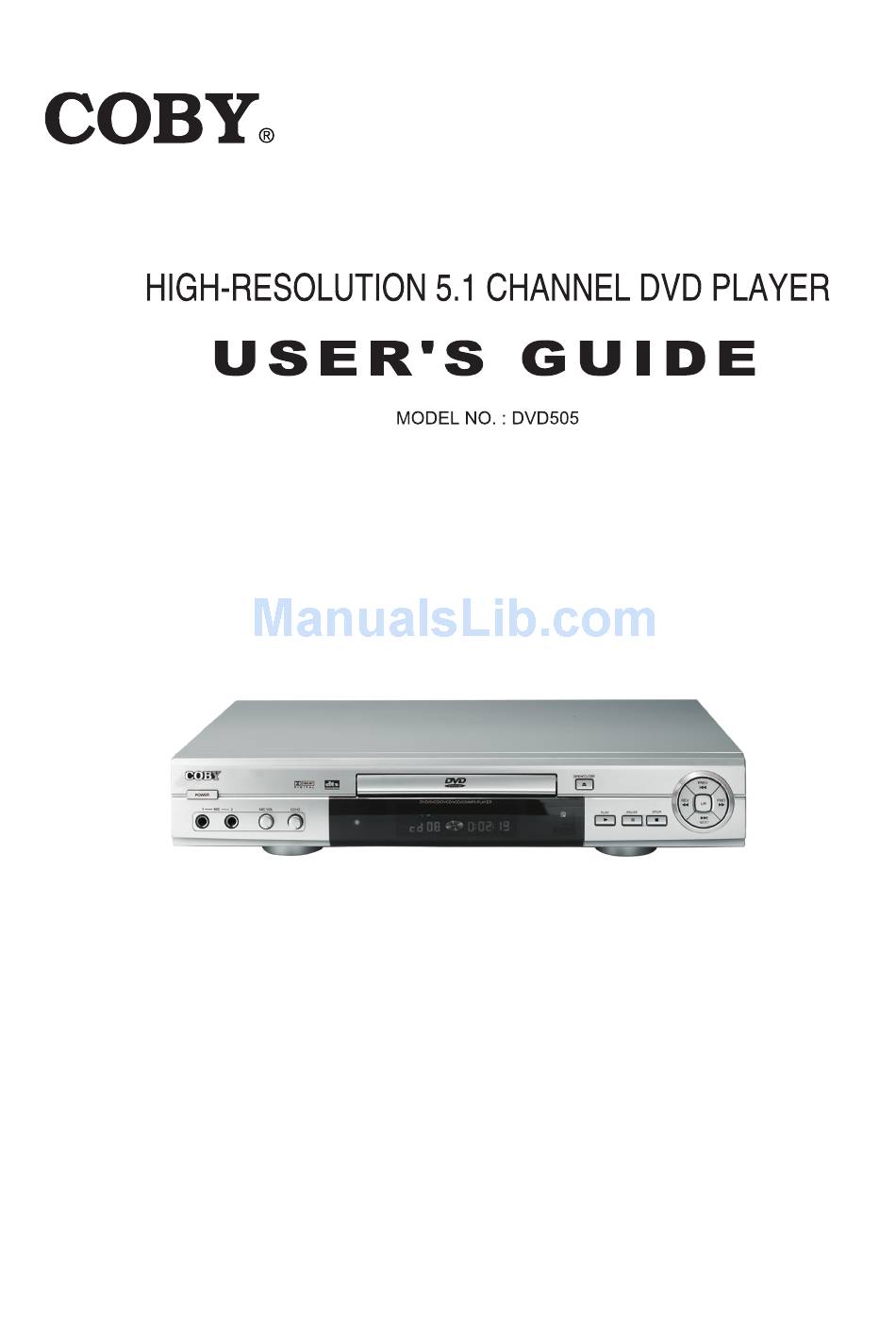

  • Page 1 Please read carefully before operation...
  • Page 2 Please read carefully before operation...

  • Page 3: Dear Customers

    Depending on the reception conditions of the broadcast, interference may appear on the TV while you are watching a channel with the DVD player on. This is not a malfunction of the unit or the TV. Should this occur, simply switch off the DVD player.

  • Page 4: Features

    Features DVD: a completely new dimension in video entertainment 1. Subtitles may be displayed in one of a maximum of 32 languages. 2. The audio soundtrack can be heard in up to 8 languages. 3. The multi-angle function allows you to choose the viewing angle of which scenes were shot from many different angles (limited to DVD discs recorded with multiple camera angles).

  • Page 5: Table Of Contents

    Table of contents Getting Started: Safety information .....1 Features ......2 Selecting the type of disc compatible with your TV .

  • Page 6: Control Reference Guide

    Control reference guide POWER MIC VOL ECHO Main unit 1. POWER ON/OFF 2. DISC TRAY 3. OPEN/CLOSE 4. FAST REWIND 5. CHANNEL SELECT 6. PREVIOUS TRACK 7. FAST FORWARD 8. MIC INPUT1 Remote control unit 1. POWER button 2. NUMERIC buttons 3.

  • Page 7: Connection To Tv & Audio Players(Inc.advanced Setup)

    Connecting to Stereo TV (configuration [A] ) 1. TV set 2. DVD player 3. L/R (Front ) Audio Output 4. S-video Output (Video option 1 ) 5. To Audio In on Stereo Amp 6.

  • Page 8: Audio Connections

    Audio connections Connecting to a TV amplifier with 5.1ch input connector supporting Dolby Digital decoder This player contains Dolby Digital decoder.This enables the playback of DVDs recorded in Dolby Digital surround without the need for an external decoder with Dolby Digital processing. When the player is connected to an AV amplifier with 5.1ch input connectors you can enjoy cinema quality audio in your home when playing discs recorded Digital Surround Sound.

  • Page 9: Digital Audio Connections

    Digital audio connections Connecting to a decoder with Dolby Digital processing or MPEG processing When DVDs recorded in Dolby Digital or MPEG audio are played, Dolby Digital bitstream or MPEG audio bitstream is sent to the player's OPTICAL digital audio output connector or COAXIAL digital audio output connector.

  • Page 10: Remote Control Preparation

    Remote control preparation Insert the batteries while observing the correct (+) and (-) polarities as illustrated. Service life of batteries The batteries normally last for about one year although this depends on how often and for what operations the remote control is used. If the remote control unit fails to work even when it is operated near the player, replace the batteries.

  • Page 11: Basic Operation

    Basic operation Preparations Switch the on the TV and select "Video" as the input source. Switch on the stereo system if the player has been connected to a stereo audio amplifier. Basic play 1.Press POWER by the main unit to switch on the power. 2.

  • Page 12: Stopping Play

    Stopping play Press STOP For you convenience; Memory Stop DVDs and VCDs (without PBC), can utilize a function called Memory Stop. This allows you to temporarily stop a movie and restart it from the same point later. While playing a disc, pressing STOP once will set the player into Memory Stop mode.

  • Page 13: Pause/Step Picture

    Pause picture Press PAUSE during play For your reference: When playing, pressing the PAUSE button pause playback. Press the PAUSE button again to enter step status. The picture will go ahead frame by frame. To return to normal play, press the PLAY button. Step picture Press STEP during play For your reference:...

  • Page 14: Prev

    For your reference: If the power is reset or the disc is removed, subtitles will appear in the default language set by the DVD player. If this language is not recorded on the disc, they will appear in the disc's default language.

  • Page 15: Viewing From Another Angle

    Viewing from another ANGLE [DVDs only] Some DVDs may contain scenes that have been shot simultaneously from a number of different angles. For these discs, the same scene can be viewed from each of these different angles using the ANGLE button.

  • Page 16: How To Use Clear Button

    How to use CLEAR button If you enter a wrong number in selecting a track, title, or passwords etc, you can press CLEAR to delete the number you have entered. TV.SYS setting This function is TV TYPE If you press this button it will allow you to select three TV types: AUTO REPEAT...

  • Page 17: Repeat A-B

    Repeat A-B (allows you to play a small section of the disc repeatedly) press the A-B button on the remote at the point where you wish the repeat play to start. The display will show REP A. Press A-B button again at the point where you wish the repeat play to finish.

  • Page 18: Return Function

    RETURN function For Video CD with PBC and multiple menus, press RETURN button on the controller, playback will return to the previous menu automatically. ZOOM picture Depending on the disc being played, you can press the ZOOM button repeatedly allowing the picture to increase accordingly: ZOOM1.5, ZOOM2 and ZOOM OFF, In the ZOOM mode, you can use CURSOR buttons to move the picture for optimum viewing.

  • Page 19: Initial Setting

    SUBTITLE setup menu(picture 2). If you choose one language, the OSD, MENU, AUDIO, SUBTITLE's language will be this one first. If the disc has not it, the DVD player will use default language of the disc. SCREEN SETUP TV TYPE(picture 3)

  • Page 20: Brightness

    2 CH : the output signal is Analogue 2 ch format. You should select this when you are playing the disc through the AUDIO OUT Right & Left jacks on your DVD player. In this format CENTRE, REAR and SUBWOOFER will not be heard.

  • Page 21: Custom Setup

    CUSTOM SETUP PARENTAL CONTROL(picture 10) When selecting PARENTAL CONTL items, the screen will be changed to the PASSWORD INPUT page Input the correct password, you will enter PARENTAL CHANGE page(picture 11). When playing disc with parent lock function, you may select an age control grade according to grade of disc and your desired.

  • Page 22: For Your Reference

    For Your Reference: Disc handling and maintenance Handling precautions Hold the disc by the edges so the surface will not soiled with fingerprints.(A) Fingerprints, dirt and scratches can cause skipping and distortion. Do not write on the lable side with a ballpoint pen or other writing utensils Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids or any other solvent.

  • Page 23: Troubleshooting

    Troubleshooting Before requesting service for this unit, check the chart below for a possible cause of the problem you are experiencing. Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation. Symptom (common) No power Play fails to start even when...
  • Page 24 Symptom (DVD) Play does not commence even when title is selected. Audio soundtrack and/or subtitle language is not the one selected at the initial settings. The menu is displayed in French(for example). No subtitles. Alternative audio soundtrack (or subtitle) languages fail to be selected. Angle cannot be changed No menu.

  • Page 25: Definition Of Terms

    Definition of terms Angle Recorded onto some DVD discs are scenes, which have been simultaneously shot from a number of different angles (the same scene is shot from the front, from the left side, from the right side, etc.).With such discs, the ANGLE button can used to view the scene from different angles.
  • Page 26 COBY COBY ELECTRONICS CORP.(”COBY”) warrants this product to the original purchaser to be free from defects in material or workmanship under normal use for 90 days from the date of original purchase. COBY agrees under this warranty, torepair or replace it with a new or reconditioned product at no additional charge.

This manual is also suitable for:

Dvd505
