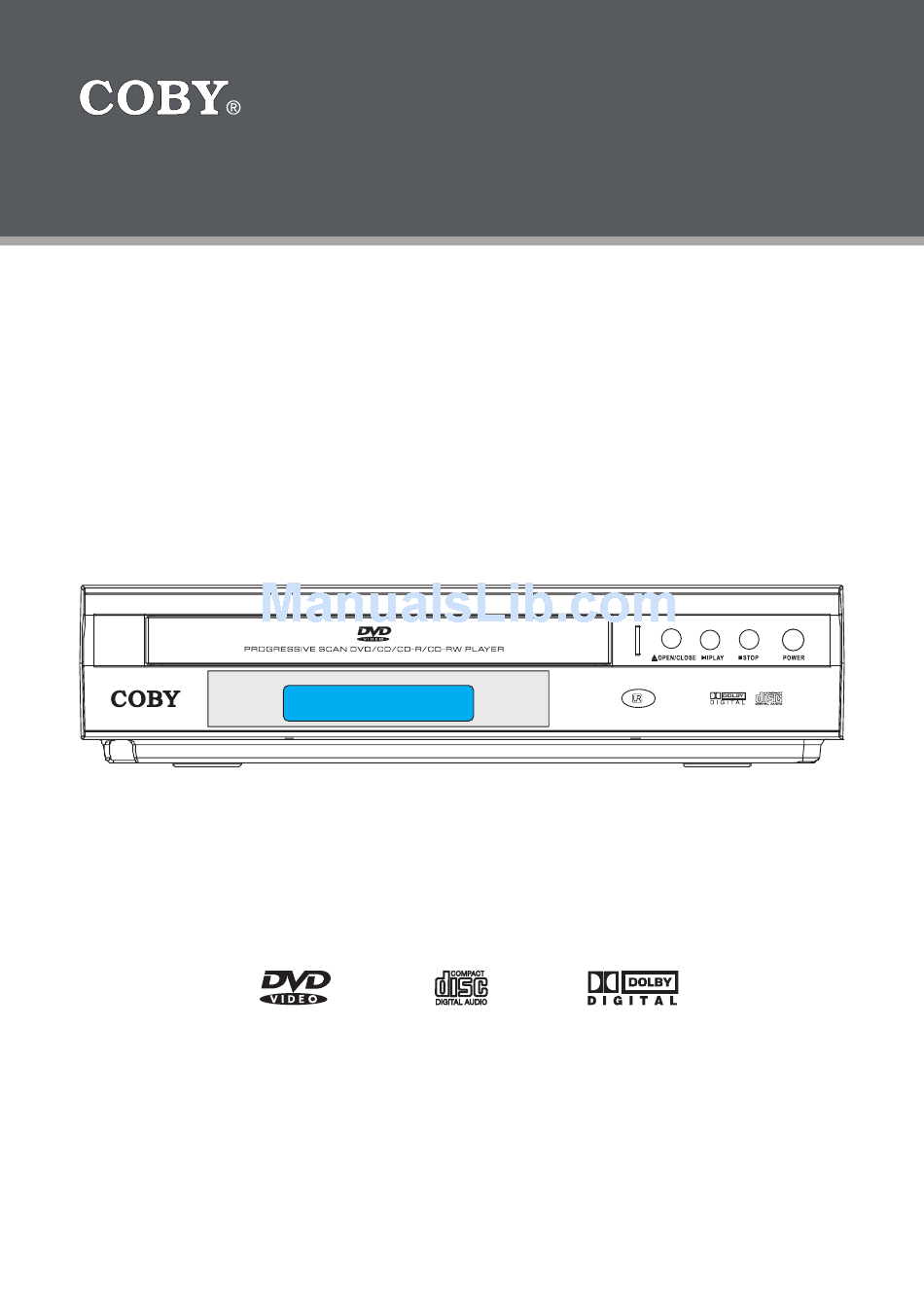

- Page 1 DVD-755 Compact 5.1-Channel Progressive Scan DVD Player Instruction Manual Please read this manual carefully before operation.
-
Page 2: Precautions
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the pres- ence of important operation and servicing instructions in the literature accompanying the appliance. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read Instructions: All the safety and operating instructions should be read before the product is operated. Retain Instructions: The safety and operating instructions should be retained for future reference. Heed Warnings: All warnings on the product and in the operating instructions should be adhered to. Follow Instructions: All operating and usage instructions should be followed. - Page 4 IMPORTANT SAFETY INSTRUCTIONS tion with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode (see figure). Lightning: For added protection for this product, unplug it from the wall outlet and disconnect the antenna or cable system during a lightning storm or when it is left unattended and unused for long periods of time.
-
Page 5: Table Of Contents
TABLE OF CONTENTS PRECAUTIONS ...2 IMPORTANT SAFETY INSTRUCTIONS ...3 TABLE OF CONTENTS ...5 ABOUT OPTICAL DISCS ...7 Disc Requirements ...7 Disc Care and Maintenance ...7 Handling a Disc ...7 Cleaning a Disc ...7 FEATURES ...8 LOCATION OF CONTROLS ...9 Front Panel ...9 Rear Panel ...9 Remote Control ...10 CONNECTIONS ...11... - Page 6 TABLE OF CONTENTS SETUP ... 20 Language Settings ...20 Display Settings ...20 Speaker Settings ...21 Audio Settings ...21 Parental Settings ...21 SPECIFICATIONS ... 22 TROUBLESHOOTING ... 23 Page Page Coby Electronics Corporation Coby Electronics Corporation...
-
Page 7: About Optical Discs
ABOUT OPTICAL DISCS Disc Requirements This DVD player supports playback of the following discs. Type DVD-Video Discs Audio Compact Discs (CDs) JPEG CDs This unit can play back CD-R and CD-RW discs that contain audio titles or JPEG picture files. -
Page 8: Features
• Progressive Scan DVD Player • Compact and Slim Design • DVD, DVD±R/RW, CD, CD-R/RW, and JPEG Compatible • Dolby Digital Decoder • 5.1-Channel Audio for Surround Sound Systems • Optical, Digital, and Analog AV Outputs for Home Theater Use •... -
Page 9: Location Of Controls
LOCATION OF CONTROLS Front Panel Disc Tray Power Indicator Open/Close Button Play/Pause Button Stop Button Power Button Front Panel Display Remote Control Sensor www.cobyusa.com www.cobyusa.com Rear Panel AC Power Cord Component Video Out (Progressive Scan) Composite Video Out S-Video Out 5.1-Channel Audio Out: SL (Surround Left) SR (Surround Right) -
Page 10: Remote Control
LOCATION OF CONTROLS Remote Control Power/Standby Title Subtitle Menu PBC Audio Mute Program Setup Navigation Keypad Slow Play/Pause Stop Prev/Rev Next/Fwd Step Volume + / - Progressive Scan Zoom Repeat A-B Repeat Clear Numeric Keypad Open/Close On-Screen Display Angle The remote control transmits a directional infrared beam. Be sure to aim the remote con- trol directly at the infrared remote sensor during operation. -
Page 11: Connections
CONNECTIONS Audio/Video Connections at a Glance www.cobyusa.com www.cobyusa.com Page 11 Page 11... -
Page 12: Progressive Scan Video (480P) Connection
CONNECTIONS Standard Television Connection Yellow White To TV Composite Video Input Progressive Scan Video (480p) Connection Green Blue White The player is equipped with composite AV outputs at the rear panel (yellow/red/white). Your TV will require at least one set of AV inputs. The supplied AV patch cord will connect your player’s AV output to your TV’s inputs. -
Page 13: Stereo (2-Channel) Audio Connection With Amplifier
CONNECTIONS Stereo (2-Channel) Audio Connection with Amplifier Component or Composite Surround (5.1-Channel) Audio Connection with Amplifier Component or Composite Video Connection Digital Output can be output in two formats: Raw or PCM. For more information, please see the “Setup > Audio Settings” section of this manual or refer to your amplifier’s documentation. -
Page 14: Getting Started
GETTING STARTED Remote Control • Refer to the diagram. Remove the battery compartment cover located on the rear of the remote control. Insert batteries, making sure to match their polarities (+/-) to the markings on the inside of the compartment. Replace the cover. -
Page 15: Basic Operations
BASIC OPERATIONS Basic Playback Prepare the connections and power supply. Set the Power Switch to the ON position to turn the player on. Load a disc. Press the Open/Close button to open the disc tray. Insert a disc with the label-side up. Press the Open/Close button again to close the disc tray. -
Page 16: Menu Navigation
BASIC OPERATIONS Menu Navigation To navigate DVD disc menus or the player’s setup menus: • Press the NAVIGATION keys (arrows) to select a desired feature or option in the menu. • Press ENTER to confirm a selection in the menu. •... -
Page 17: Player Functions
PLAYER FUNCTIONS Menu / Title • Press the MENU/PBC key during DVD playback to return to the disc’s Main menu. • Press the TITLE key during DVD playback to return to the disc’s Title menu. Setup Press the SETUP key to enter the player’s setup menu. Enter the Setup menu to adjust the play- er’s internal settings;... -
Page 18: Repeat A-B Mode
PLAYER FUNCTIONS Repeat A-B Mode To repeat a specific section of a disc (play on a loop): Press A-B to set the desired start point (“A”) of the section to be repeated. Press A-B again to set the desired end point (“B”) of the section to be repeated. The section “A-B”... -
Page 19: Dvd Program Mode
PLAYER FUNCTIONS DVD Program Mode • Load a DVD and enter Program mode. • Use the navigation keys to select a field. • Use the numeric keypad to enter track num- bers in the left “Tt” columns (or press CLEAR to delete). -
Page 20: Setup
Enter Setup mode to adjust the various internal settings of the player. Make sure the player has been completely stopped before entering Setup mode. Press SETUP to enter Setup mode. Use the NAVIGATION keys to select a desired item. Press ENTER to confirm a selection. Press SETUP to exit Setup mode (or select EXIT and press ENTER). -
Page 21: Speaker Settings
Speaker Settings Use the NAVIGATION keys to highlight the desired speaker selection and press ENTER to confirm. Item Sets the audio equalizer option (Off, 3D, Rock, 3D/EQ Classic, Jazz, Pop). Sets the audio reverb effects option (Normal, Reverb Living Room, Hall, Arena, Cave, Concert Hall, Bathroom, Church). -
Page 22: Specifications
SPECIFICATIONS Display Type Disc Support Video Output Audio Output Digital Audio Decoders Video System Power Unit Dimensions Specifications and manual are subject to change without notice. Page Page Front Panel, On-Screen DVD, DVD±R/RW, CD, CD-R/RW, JPEG Component Video (Progressive Scan) S-Video Composite Video Optical Digital Audio... -
Page 23: Troubleshooting
TROUBLESHOOTING If you have a problem with this player, please read the troubleshooting guide below and check our website at www.cobyusa.com for Frequently Asked Questions (FAQs) and firmware updates. If these resources do not resolve the problem, please contact Technical Support. COBY Electronics Technical Support 56-65 Rust Street Maspeth, NY 11378... - Page 24 TROUBLESHOOTING There is no sound or distorted sound. • Ensure that the TV and amplifier have been turned on and properly set up. • Ensure that the TV and amplifier connections are secure and correct. • Try a different Audio track of the DVD by pressing AUDIO. •...
- Page 25 www.cobyusa.com www.cobyusa.com NOTES Page Page ...
- Page 26 Page Page NOTES Coby Electronics Corporation Coby Electronics Corporation...
- Page 27 www.cobyusa.com www.cobyusa.com NOTES Page Page ...
- Page 28 COBY Electronics Corp. 56-65 Rust Street Maspeth, NY 11378 www.cobyusa.com www.ecoby.com...
