Aura RGB headers
The Aura RGB headers allow you to connect RGB LED strips.
A
The Aura RGB headers support 5050 RGB multi-color LED strips (12V/G/R/B), with a
maximum power rating of 3A (12V).
Before you install or remove any component, ensure that the power supply is switched off
or the power cord is detached from the power supply. Failure to do so may cause severe
damage to the motherboard, peripherals, or components.
•
Actual lighting and color will vary with LED strip.
•
If your LED strip does not light up, check if the RGB LED extension cable and the
RGB LED strip is connected in the correct orientation, and the 12V connector is
aligned with the 12V header on the motherboard.
•
The LED strip will only light up when the system is powered on.
•
The LED strip is purchased separately.

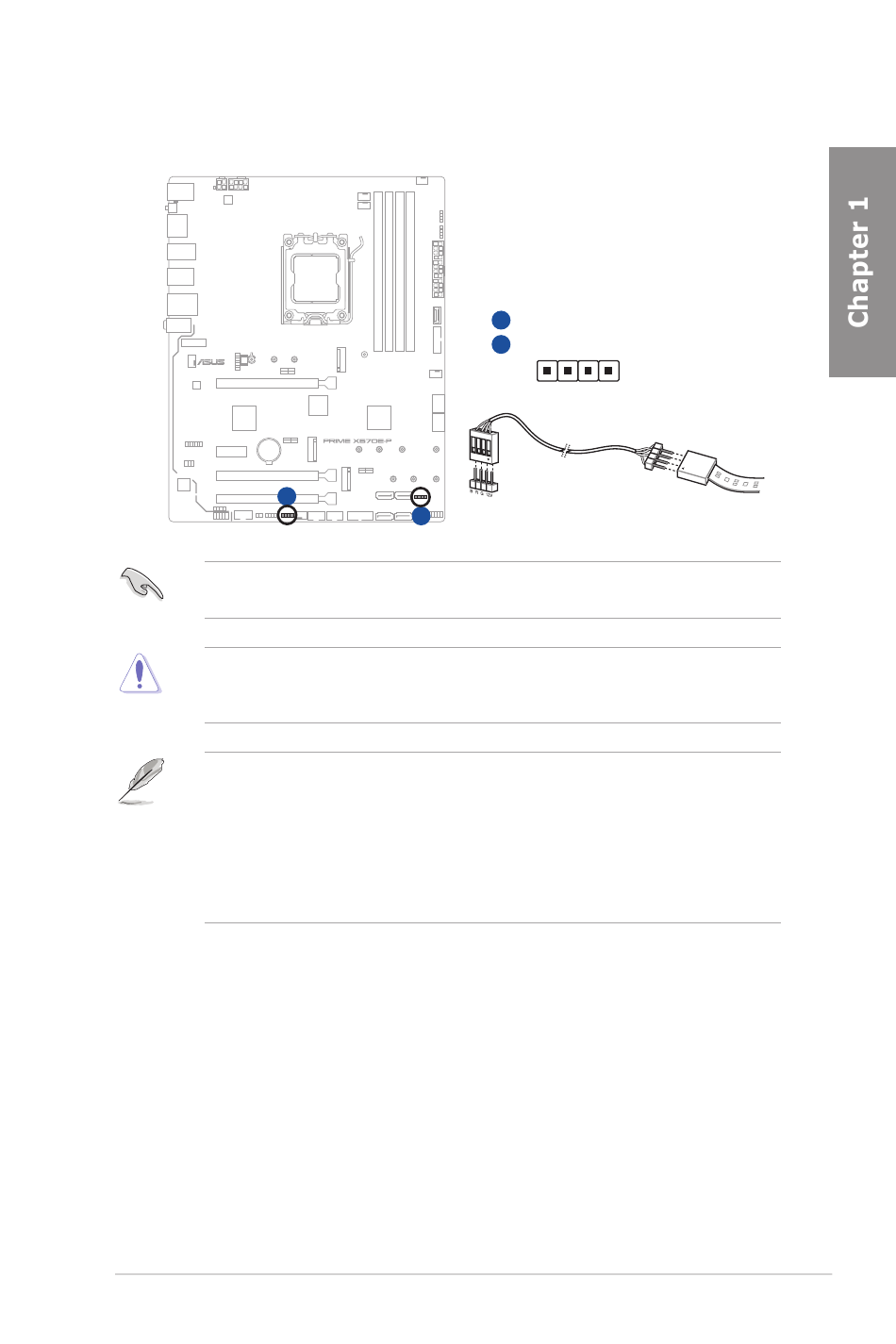

PRIME X670E-P
RGB_HEADER2
A
RGB_HEADER1
B
PIN 1
+12V G R B
B
1-15
