Marantz Mount 12 Installation Instructions

MOUNT12
Projector Mount

INSTALLATION INSTRUCTIONS

Step 1
Invert the projector and place it on a soft and flat surface.
Locate the three (3) 6 (mm) mounting points found on the
bottom of the projector. Secure the two (2) Quick release sleeves
(C) with the two (2) 6 (mm) x 20 (mm) Phillip Screws (B)
(supplied). Align the keyhole openings from the mounting
bracket (A) to the sleeves (C) and secure the bracket with the
6 (mm) x 12 (mm) knurl knob (D) (supplied). Do not over
tighten!

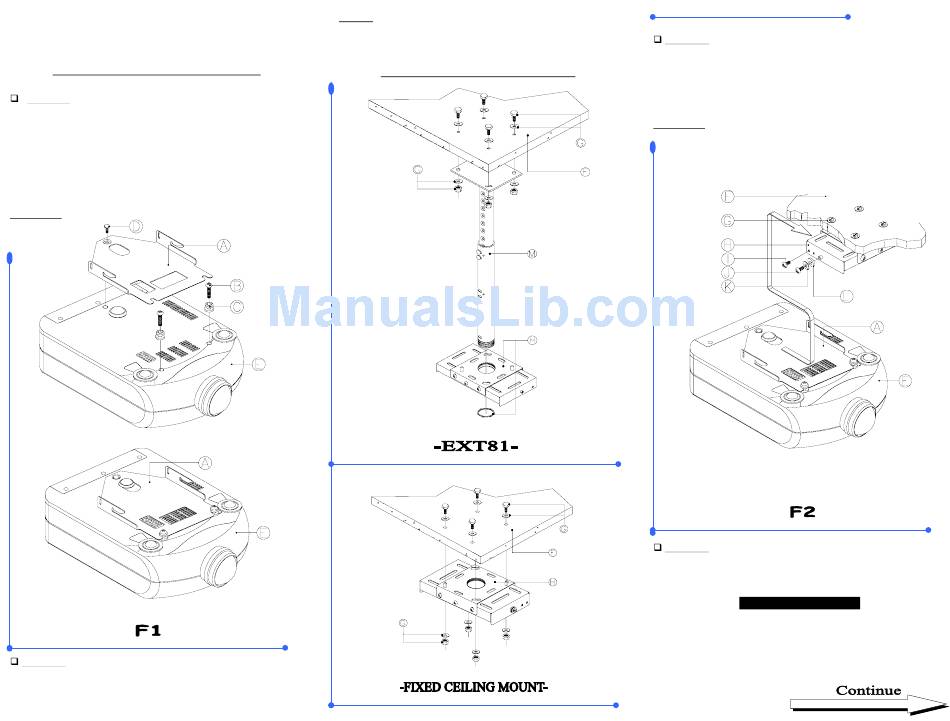

See Figure 1
Step 2
Install the base box securely to the ceiling structure in
accordance with proper commercial standards. Use
(commercially available) suitable hardware depending on the
installation requirements.
NOTE:
If the (Optional) EXT81 adjustable height suspension
adapter is a part of the installation, securely install the ceiling
adapter to the ceiling at this time.
(Refer to its Installation Instructions)
Step 3
Install the two (2) conical spacers (L) and two (2) flat washers (K), two
(2) hinge screws (J) loosely on both sides of the base box (H). Raise
the projector with the mounting bracket attached and slip though the
hinge pin slots openings on the bracket into the base box. Install the
two (2) angle locking screws (I) adjust the angle, lock it, and then
tighten the hinge pin screws.
See Figure 2
Step 4
Check all the hardware for proper tightness and security. Do not
over tighten hardware.
PORTABLE PROJECTORS
(1) Remove the knurl knob screw and hold the projector with
two hands.
(2) Slide it backwards to detach the sleeves from the keyholes.
(3) Reverse the process for quick reinstall.
