Timewatch ULtraFace Series Quick Start Manual

TimeWatch
ULtraFace Series
Quick Start Guide
1

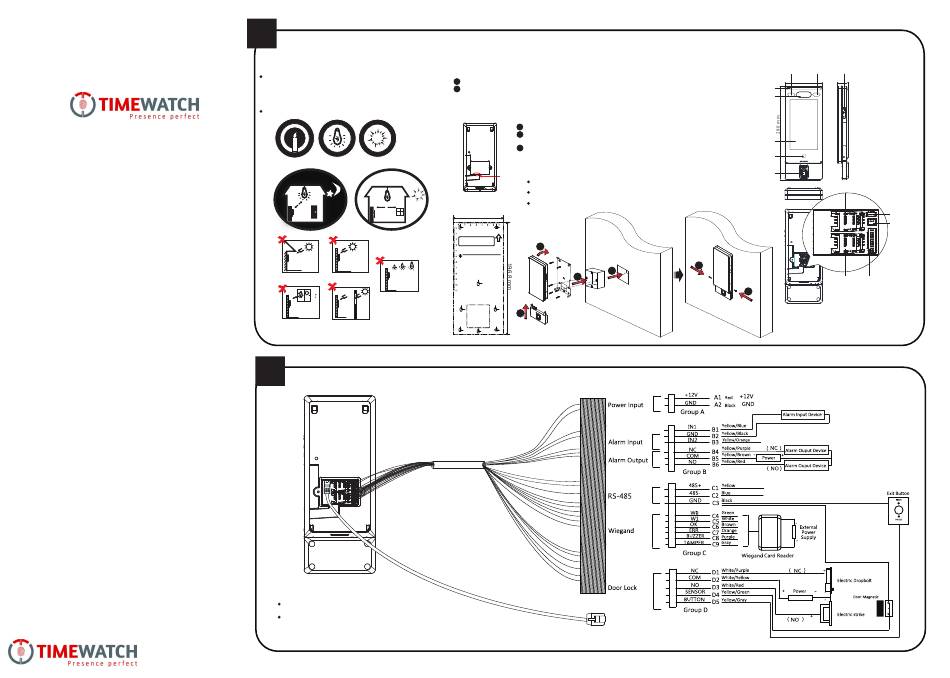

Installation
Installation Environment:
Indoor and outdoor installation are supported. If installing the device
indoors, the device should be at least 2 meters away from the light, and
at least 3 meters away from the window or the door. If installing the
device outdoors, you should apply Sililcone sealant among the cable
wiring area to keep the raindrop from entering.
Make sure the environment illumination is more than 100 Lux.
10Lux 100~850Lux ＞1200Lux
2m
3m
Backlight Direct Sunlight
Close to Light
Indirect Sunlight
Direct Sunlight
through Window through Window
2
2.1
Device Wiring (Without Secure Door Control Unit)
Notes:
When connecting door magnetic sensor and exit button, the device and the
RS-485 card reader should use the common ground connection.
The Wiegand terminal here is a Wiegand input terminal. You should set
the face recognition terminal's Wiegand direction to "Input". If you should connect
to an access controller, you should set the Wiegand direction to "Output". For details,
see Setting Wiegand Parameters in Communication Settings in the user manual.
Before you start:
According to the baseline on the mounting template, stick the mounting template on the wall or
other surface, 1.4 meters higher than the ground.
Note: Make sure the output of external power supply fulfils LPS.
Steps:
Drill holes on the wall or other surface according to the mounting template and install the gang box.
1
Use two supplied screws (4_KA4×22-SUS) to secure the mounting plate on the gang box.
2
Use another four supplied screws to secure the mounting plate on the wall.
Route the cables through the cable hole of the mounting plate, and connect to the corresponding
external devices' cables.
Note: Apply Silicone sealant among the cable wiring area to keep the raindrop from entering.
Insert the fingerprint module to the holes at the bottom of the main part.
3
Align the device with the mounting plate and hang the terminal on the
4
mounting plate.
Make sure the two sheets on each side of the mount plate have been in the
5
holes at the back of the device.
Use two supplied screws (SC-M4×12TP10-SUS) to secure the device and the
mounting plate.
Notes:
Apply
Sililcone
The installation height here is the recommended height. You can change it according
sealant
to your actual needs.
You can also install the device on the wall or other places without the gang box. For
details, refer to the User Manual.
For easy installation, drill holes on mounting surface according to the supplied
mounting template.
87 mm
Hole1 Hole1
Mounting Template
4
Datum
Recommanded Height:1.40 m.
1
2
Hole2
Hole3
Hole2 Hole2
3
Hole1 Hole1
Hole2
Network Interface
Dimensions:
IR Light IR Light USB Interface
116.5 mm 33 mm
White Light
Camera
Screen
Card Presenting
Area
Fingerprint
Scanner
SIM Card Card Slot
(Reserved)
Network
Interface
5
PSAM Card Wiring
Card Slot Terminal
(Reserved)
5
Note: The figures are for reference only.
Debugging
Port
(For debugging
only)
Power
Interface
