Timewatch UltraFP804 Series Quick Start Manual

UltraFP804 Series Fingerprint Access Control Terminal
Quick Start Guide
1

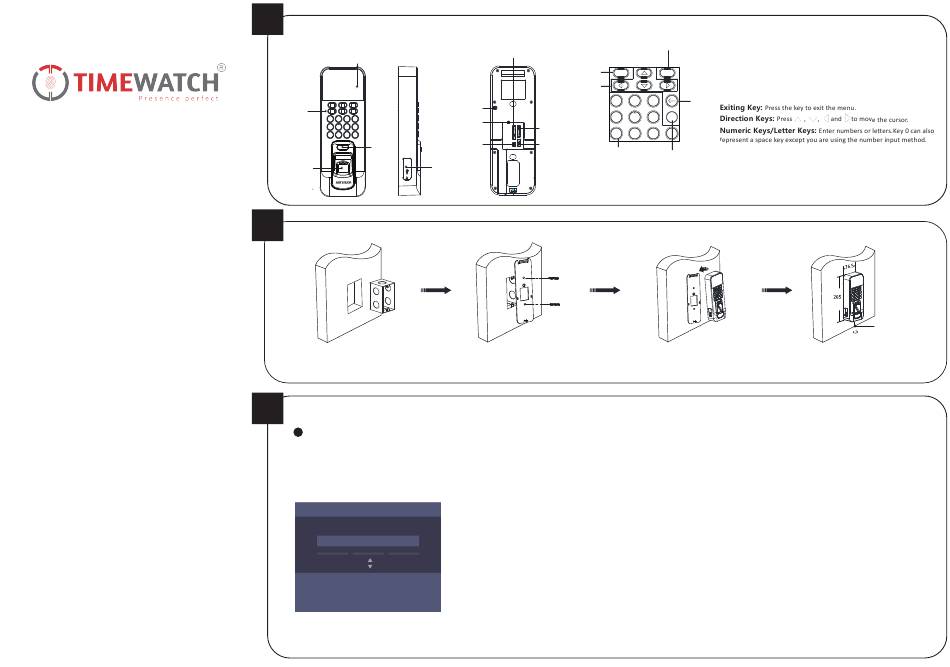

Appearance

2.4-inch LCD Display Screen Indicator
Keypad
Door Bell
Button
Fingerprint USB Interface/
Reading Module
Reset Button
(Inside of the Cover)
2

Installation

1. Install 120 or 86gang box into the wall.
3

Activation

Activating via Device
Power on and wire the network cable after installation.
You should activate the device before the first login.
After powering on, the interface will be displayed as
follows.
You can create the device password and confirm the
password to activate.
Device Activation
Activation Password (8 to 16 Characters)
OK Next Input Method
[Number]
RS-485/Wiegand Wiring Terminal
Exiting Key
ESC
Direction Keys
Tamper-proof 1
Button
4
Ethernet Port GHI
Door Lock
Wiring Terminal
7
PQRS
12V
Alarm
Power Interface
Wiring Terminal
Numeric Keys/
Letter Keys
2. Route the cables through the cable hole of
the mounting plate.
3. Secure the device mounting plate on the gang
box with two screws. (Supplied).
The default values of the terminal are as follows:
• The default IP address: 192.0.0.64
• The default port No.: 8000
• The default user name: admin
OK Key Keypad Descriptions
OK Key: Press to confirm operations. Hold the key for 2 s to enter the
login interface.
OK
Deleting Key: Press the key to delete the entered letter or number.
Doorbell Button: Press the doorbell button and the doorbell rings.
2 3 Deleting
ABC DEF
Key
5 6
EN
JKL MNO
8 9 0
TUV WXYZ
Editing Key: Press the key to enter the number 0. Hold the key to shift
Editing Key
among numbers/lowercases, numbers/uppercases and symbols.
Notes:
1. The pictures here are for reference only. Some models do not support card swiping
function. For details, refer to the actual products.
2. If you enable the attendance status function, the OK key, the direction key, and the
exiting key can be the shortcut key of the attendance status.
4. Connect the corresponding cables.
5. Align the terminal with mounting plate. Push the 4. Tighten the screws to fix the terminal on the
terminal in the mounting plate from bottom up. mounting plate and complete the installation.
Fasten the terminal with the buckles on the plate.
Mounting Screw
Anticlockwise Rotation
