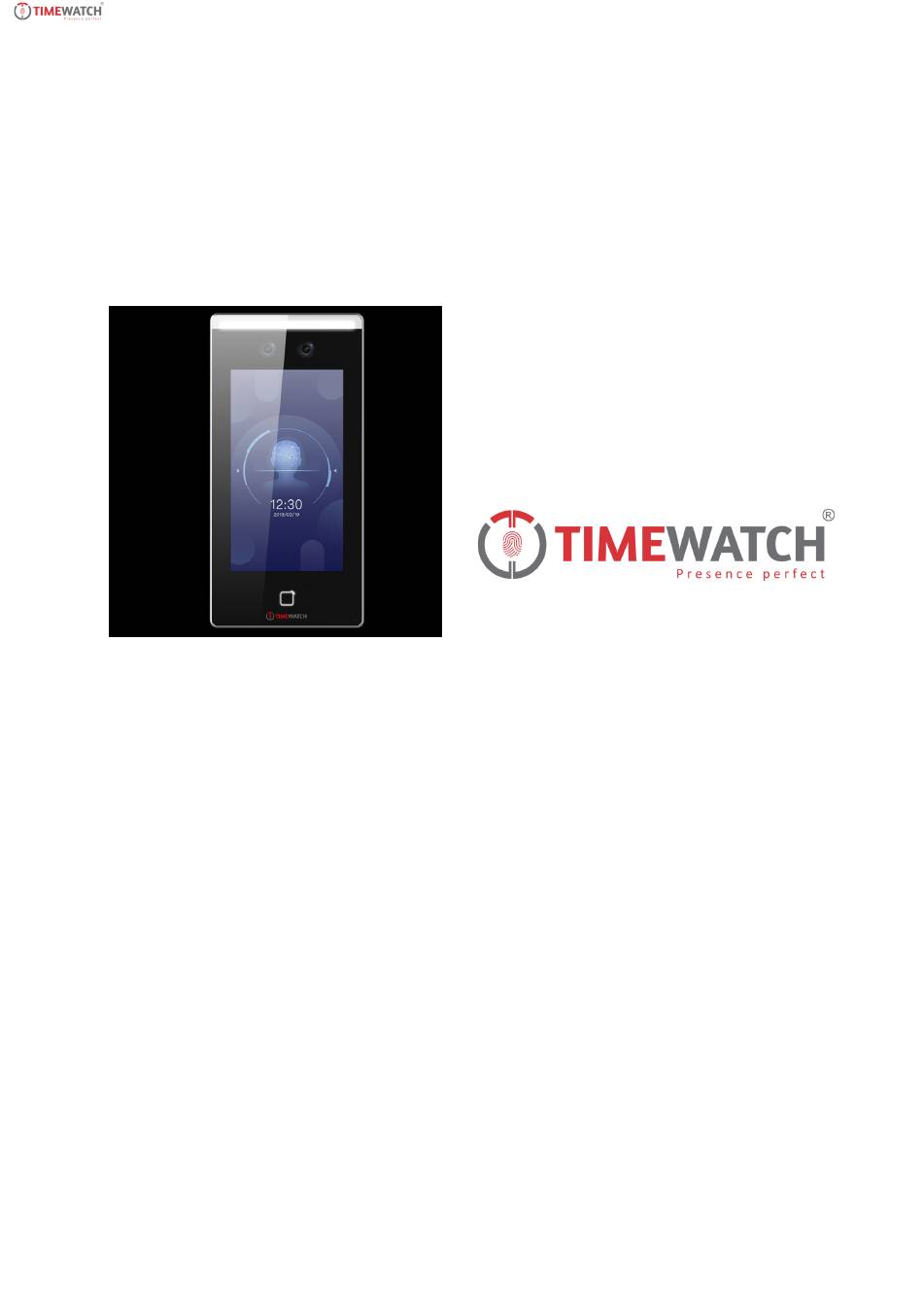

  • Page 1 ULtraFace671 Series Face Recognition Terminal User Manual...

  • Page 2: Table Of Contents

    ULtraFace 671 Series Face Recognition Terminal User Manual Contents Chapter 1 Overview ........................1 1.1 Overview ..........................1 1.2 Features ..........................1 Chapter 2 Appearance ........................ 3 Chapter 3 Installation ......................... 5 3.1 Installation Environment ......................5 3.2 Install with Gang Box ......................5 3.3 Install without Gang Box ......................
  • Page 3 ULTraFace 671 Series Face Recognition Terminal User Manual 6.5.3 Set RS-485 Parameters ....................32 6.5.4 Set Wiegand Parameters ..................... 32 6.6 User Management ....................... 33 6.6.1 Add Face Picture ......................33 6.6.2 Add Fingerprint ......................35 6.6.3 Add Card ........................36 6.6.4 Add Password ......................
  • Page 4 ULTraFace 671 Series Face Recognition Terminal User Manual 6.14.3 Call Device from Client Software ................53 6.14.4 Call Room from Device ....................54 Chapter 7 Operation via Web Browser ..................55 7.1 Login ............................ 55 7.2 Live View ..........................55 7.3 Person Management ......................

  • Page 5: Chapter 1 Overview

    ULTraFace 671 Series Face Recognition Terminal User Manual Chapter 1 Overview 1.1 Overview Face recognition terminal is a kind of access control device for face recognition, which is mainly applied in security access control systems, such as logistic centers, airports, university campuses, alarm centrals, dwellings, etc.
  • Page 6 ULTraFace 671 Series Face Recognition Terminal User Manual Features of Advanced Series • 7-inch LCD touch screen • 2 MP wide-angle dual-lens • Adjusts supplement light brightness manually • Face recognition distance: 0.3 m to 3 m • Suggested height for face recognition: between 1.4 m and 1.9 m •...

  • Page 7: Chapter 2 Appearance

    ULTraFace 671 Series Face Recognition Terminal User Manual Chapter 2 Appearance Refer to the following contents for detailed information of the face recognition terminal: Figure 2-1 Face Recognition Terminal Diagram Table 2-1 Description of Face Recognition Terminal Name Description Fingerprint Module For fingerprint recognition.
  • Page 8 ULTraFace 671 Series Face Recognition Terminal User Manual Name Description Network Interface Connect to Ethernet. SIM Card Slot Reserved Debugging Port The debug terminal is used for debugging only. Power Interface Connect to power supply. Wiring Terminals Connect to other external devices, including RS- 485 card reader, Wiegand card reader, door lock, alarm input, alarm output, etc.

  • Page 9: Chapter 3 Installation

    ULTraFace 671 Series Face Recognition Terminal User Manual Chapter 3 Installation 3.1 Installation Environment • Avoid backlight, direct sunlight, and indirect sunlight. • For better recognition, there should be light source in or near the installation environment. Note For details about installation environment, see Tips for Installation Environment. 3.2 Install with Gang Box Steps 1.
  • Page 10 ULTraFace 671 Series Face Recognition Terminal User Manual 2. Drill holes on the wall or other surface according to the mounting template and install the gang box. 3. Use two supplied screws (4_KA4 × 22-SUS) to secure the mounting plate on the gang box. 4.
  • Page 11 ULTraFace 671 Series Face Recognition Terminal User Manual Figure 3-4 Insert Fingerprint Module 10. Align the device with the mounting plate and hang the device on the mounting plate. Figure 3-5 Install Device...

  • Page 12: Install Without Gang Box

    ULTraFace 671 Series Face Recognition Terminal User Manual 11. Use two supplied screws (SC-M4 × 12TP10-SUS) to secure the device and the mounting plate. Figure 3-6 Secure Device Note • The installation height here is the recommended height. You can change it according to your actual needs.
  • Page 13 ULTraFace 671 Series Face Recognition Terminal User Manual Figure 3-7 Mounting Template 2. Drill 6 holes on the wall or other surface according to Hole 1 and Hole 2 in the mounting template. 3. Insert the screw sockets of the setscrews in the drilled holes. Figure 3-8 Insert Screw Socket 4.
  • Page 14 ULTraFace 671 Series Face Recognition Terminal User Manual Figure 3-9 Install Mounting Plate 5. Remove the two screws on the rear panel and remove the sheet to display the wiring terminals. 6. Route the cable through the cable hole of the mounting plate, and connect to corresponding external devices' cables.
  • Page 15 ULTraFace 671 Series Face Recognition Terminal User Manual Figure 3-10 Apply Silicone Sealant 9. Insert the fingerprint module to the holes at the bottom of the main part. Figure 3-11 Install Fingerprint Module 10. Align the device with the mounting plate and hang the device on the mounting plate.
  • Page 16 ULTraFace 671 Series Face Recognition Terminal User Manual Figure 3-12 Install Device 11. Use two supplied screws (SC-M4 × 12TP10-SUS) to secure the device and the mounting plate.
  • Page 17 ULTraFace 671 Series Face Recognition Terminal User Manual Figure 3-13 Secure Device Note • The installation height here is the recommended height. You can change it according to your actual needs. • For easy installation, drill holes on mounting surface according to the supplied mounting template.

  • Page 18: Chapter 4 Wiring

    ULTraFace 671 Series Face Recognition Terminal User Manual Chapter 4 Wiring You can connect the RS-485 terminal with the RS-485 card reader, connect the NC and COM terminal with the door lock, connect the SENSOR terminal with the door contact, the BTN/GND terminal with the exit button, connect the alarm output and input terminal with the alarm output/ input devices, and connect the Wiegand terminal with the Wiegand card reader or the access controller.
  • Page 19 ULTraFace 671 Series Face Recognition Terminal User Manual Figure 4-1 Terminal Diagram The descriptions of the terminals are as follows: Table 4-1 Terminal Descriptions Group Function Color Name Description Group A Power Input +12 V 12 VDC Power Supply Black Ground Group B Alarm Input...

  • Page 20: Wire Normal Device

    ULTraFace 671 Series Face Recognition Terminal User Manual Group Function Color Name Description Alarm Output Yellow/Purple Alarm Output Wiring Yellow/Brown Yellow/Red Group C RS-485 Yellow 485+ RS-485 Wiring Blue 485- Black Ground Wiegand Green Wiegand Wiring 0 White Wiegand Wiring 1 Brown WG_OK Wiegand...
  • Page 21 ULTraFace 671 Series Face Recognition Terminal User Manual Figure 4-2 Device Wiring Note • You should set the face recognition terminal's Wiegand direction to "Input" to connect to a Wiegand card reader. If connects to an access controller, you should set the Wiegand direction to "Output"...
  • Page 22 ULTraFace 671 Series Face Recognition Terminal User Manual Figure 4-3 Secure Door Control Unit Wiring Note The secure door control unit should connect to an external power supply separately. The suggested external power supply is 12V, 0.5A.

  • Page 23: Chapter 5 Activation

    ULTraFace 671 Series Face Recognition Terminal User Manual Chapter 5 Activation You should activate the device before the first login. After powering on the device, the system will switch to Device Activation page. Activation via the device, SADP tool and the client software are supported. The default values of the device are as follows: •...
  • Page 24 ULTraFace 671 Series Face Recognition Terminal User Manual Figure 5-1 Activation Page Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 25: Activate Device Via Client Software

    ULTraFace 671 Series Face Recognition Terminal User Manual 5.3 Activate Device via Client Software For some devices, you are required to create the password to activate them before they can be added to the software and work properly. Steps Note This function should be supported by the device.

  • Page 26: Chapter 6 Basic Operation

    ULTraFace 671 Series Face Recognition Terminal User Manual Chapter 6 Basic Operation 6.1 Select Language You can select a language for the device system. After the device activation, you can select a language for the device system. Figure 6-1 Select System Language By default, the system language is English.
  • Page 27 ULTraFace 671 Series Face Recognition Terminal User Manual Steps 1. On the Welcome page, select Indoor or Others from the drop-down list. Figure 6-2 Welcome Page 2. Tap OK to save. Note • You can also change the settings in System Settings. •...

  • Page 28: Set Administrator

    ULTraFace 671 Series Face Recognition Terminal User Manual 6.3 Set Administrator After device activation, you can add an administrator to manage the backend. Before You Start Activate the device and select an application mode. Steps Note Tap Skip to skip adding administrator. 1.
  • Page 29 ULTraFace 671 Series Face Recognition Terminal User Manual Note Up to one credential should be added. : Face forward at the camera. Make sure the face is in the face recognition area. Click to capture and click to confirm. : Press your finger according to the instructions on the device screen. Click to confirm.

  • Page 30: Login

    ULTraFace 671 Series Face Recognition Terminal User Manual 6.4 Login Login the device backend to set the device basic parameters. 6.4.1 Login by Administrator If you have added an administrator for the device, only the administrator can login the device for device operation.

  • Page 31: Login By Activation Password

    ULTraFace 671 Series Face Recognition Terminal User Manual Figure 6-5 Home Page Note The device will be locked for 30 minutes after 5 failed fingerprint or card attempts. 3. Optional: Tap and you can enter the device activation password for login. 4.

  • Page 32: Communication Settings

    ULTraFace 671 Series Face Recognition Terminal User Manual 2. Tap the Password field and enter the device activation password. 3. Tap OK to enter the home page. Note The device will be locked for 30 minutes after 5 failed password attempts. Figure 6-6 Home Page 6.5 Communication Settings You can set the network parameters, the Wi-Fi parameter, and the RS-485 parameters on the...

  • Page 33: Set Wired Network Parameters

    ULTraFace 671 Series Face Recognition Terminal User Manual 6.5.1 Set Wired Network Parameters You can set the device wired network parameters, including the IP address, the subnet mask, and the gateway. Steps 1. Tap Comm. (Communication Settings) on the Home page to enter the Communication Settings page.
  • Page 34 ULTraFace 671 Series Face Recognition Terminal User Manual Figure 6-8 Wi-Fi Settings 3. Enable the Wi-Fi function. 4. Configure the Wi-Fi parameters. - Select a Wi-Fi from the list, and enter the Wi-Fi's password. Tap OK. - If the target Wi-Fi is not in the list,tap Add Wi-Fi. Enter the Wi-Fi's name and password. And tap OK.

  • Page 35: Set Rs-485 Parameters

    ULTraFace 671 Series Face Recognition Terminal User Manual 6.5.3 Set RS-485 Parameters The face recognition terminal can connect external access controller, secure door control unit or card reader via the RS-485 terminal. Steps 1. Tap Comm. (Communication Settings) on the Home page to enter the Communication Settings page.

  • Page 36: User Management

    ULTraFace 671 Series Face Recognition Terminal User Manual Figure 6-10 Wiegand Settings 3. Enable the Wiegand function. 4. Select a transmission direction. • Output: A face recognition terminal can connect an external access controller. And the two devices will transmit the card No. via Wiegand 26 or Wiegand 34. •...
  • Page 37 ULTraFace 671 Series Face Recognition Terminal User Manual Note • Numbers, upper case letters, lower case letters, and special characters are allowed in the user name. • The suggested user name should be within 32 characters. 5. Tap the Face Picture field to enter the face picture adding page. Figure 6-11 Add Face Picture 6.

  • Page 38: Add Fingerprint

    ULTraFace 671 Series Face Recognition Terminal User Manual After completely adding the face picture, a captured face picture will be displayed at the upper right corner of the page. 7. Tap Save to save the face picture. 8. Optional: Tap Try Again and adjust your face position to add the face picture again. 9.

  • Page 39: Add Card

    ULTraFace 671 Series Face Recognition Terminal User Manual Note • The same fingerprint cannot be repeatedly added. • Up to 10 fingerprints can be added for one user. • You can also use the client software or the fingerprint recorder to record fingerprints. For details about the instructions of scanning fingerprints, see Tips for Scanning Fingerprint .

  • Page 40: Add Password

    ULTraFace 671 Series Face Recognition Terminal User Manual Note • The card No. cannot be empty. • Up to 20 characters are allowed in the card No. • The card No. cannot be duplicated. 8. Configure the card type. 9. Set the user role. Administrator The user is the administrator.

  • Page 41: Set Authentication Mode

    ULTraFace 671 Series Face Recognition Terminal User Manual 6. Set the user role. Administrator The user is the administrator. Except for the normal attendance function, the user can also enter the Home page to operate after authenticating the permission. Normal User The User is the normal user.

  • Page 42: Data Management

    ULTraFace 671 Series Face Recognition Terminal User Manual Note The employee ID cannot be edited. 6.7 Data Management You can delete data, import data, and export data. 6.7.1 Delete Data Delete user data. On the Home page, tap Data → Delete Data → User Data . All user data added in the device will be deleted.

  • Page 43: Export Data

    ULTraFace 671 Series Face Recognition Terminal User Manual 6.7.3 Export Data Steps 1. On the Home page, tap Data → Export Data . 2. Tap Event Data, User Data, or Face Data 3. Optional: Create a password for exporting. When you should import those data to another device, you should enter the password.

  • Page 44: Authenticate Via Multiple Credential

    ULTraFace 671 Series Face Recognition Terminal User Manual Note The card can be normal IC card, or encrypted card. QR Code Put the QR code in front of the device camera to authenticate via QR code. Note Authentication via QR code should be supported by the device. If authentication completed, a prompt "Authenticated"...
  • Page 45 ULTraFace 671 Series Face Recognition Terminal User Manual Figure 6-12 Basic Settings Page shortcut key, voice, time, community No., building No., and Unit No. Shortcut Key Choose the shortcut key that displayed on the authentication page, including the QR code function, the call function, call type, and the password entering function.

  • Page 46: Set Biometric Parameters

    ULTraFace 671 Series Face Recognition Terminal User Manual Note You can set the voice volume between 0 and 10. Time Settings Set the time zone, the device time and the DST. Select Language Select the system language. After the language is changed, the system will reboot to take effect. White Light Brightness Adjust the white light's brightness.
  • Page 47 ULTraFace 671 Series Face Recognition Terminal User Manual Figure 6-13 Biometric Parameters Page Table 6-1 Face Picture Parameters Parameter Description Select Application You can select either others or indoor according to actual environment. Mode Face Liveness Level You can set the face anti-​ s poofing matching security level when performing live face authentication.

  • Page 48: Set Access Control Parameters

    ULTraFace 671 Series Face Recognition Terminal User Manual Parameter Description Note You can input the number from 1 to 10. Wide Dynamic When there are both very bright and very dark areas simultaneously in the view, you can enable the wide dynamic function to balance the brightness of the whole image and provide clear images with details.
  • Page 49 ULTraFace 671 Series Face Recognition Terminal User Manual Figure 6-14 Access Control Parameters The available parameters descriptions are as follows: Table 6-2 Access Control Parameters Descriptions Parameter Description Terminal Auth. Mode (Terminal Select the face recognition terminal's authentication mode. You Authentication Mode) can also customize the authentication mode.

  • Page 50: Time And Attendance Status Settings

    ULTraFace 671 Series Face Recognition Terminal User Manual Parameter Description Door Contact You can select "Open (Remain Open)" or "Close (Remian Closed)" according to your actual needs. By default, it is Close (Remian Closed). Open Duration Set the door unlocking duration. If the door is not opened for the set time, the door will be locked.

  • Page 51: Set Auto Attendance Via Device

    ULTraFace 671 Series Face Recognition Terminal User Manual Steps 1. Tap T&A Status to enter the T&A Status page. 2. Set the Attendance Mode as Manual. Figure 6-16 Manual Attendance Mode 3. Enable the Attendance Status function. Result You should select the attendance status manually after authentication. Note If you do not select a status, the authentication will be failed and it will not be marked as a valid attendance.
  • Page 52 ULTraFace 671 Series Face Recognition Terminal User Manual Figure 6-17 Auto Attendance Mode 3. Select an attendance status and set its schedule. 1) Select Check In, Check Out, Break Out, Break In, Overtime In, or Overtime Out as the attendance status. 2) Tap Schedule.

  • Page 53: Set Manual And Auto Attendance Via Device

    ULTraFace 671 Series Face Recognition Terminal User Manual 6.12.4 Set Manual and Auto Attendance via Device Set the attendance mode as Manual and Auto, and the system will automatically change the attendance status according to the configured parameters. At the same time you can manually change the attendance status after the authentication.

  • Page 54: System Maintenance

    ULTraFace 671 Series Face Recognition Terminal User Manual Result On the initial page and authenticate. If you do not select a status, the authentication will be marked as the configured attendance status according to the schedule. If you tap Select Status and select a status to take attendance, the authentication will be marked as the selected attendance status.

  • Page 55: Video Intercom

    ULTraFace 671 Series Face Recognition Terminal User Manual Note Parts of the device models support displaying the fingerprint number. Refers to the actual page for details. Device Upgrade Plug the USB flash drive in the device USB interface. Tap Upgrade, and the device will read the digicap.dav file in the USB flash drive to start upgrading.

  • Page 56: Call Center From Device

    ULTraFace 671 Series Face Recognition Terminal User Manual Note If the device is added to multiple client softwares and when the device is calling the client software, only the first client software added the device will pop up the call receiving window. 6.14.2 Call Center from Device Steps 1.

  • Page 57: Call Room From Device

    ULTraFace 671 Series Face Recognition Terminal User Manual 5. Enter the Live View page and double-click the added device to start live view. Note For details about operations in the Live View page, see Live View in the user manual of the client software.

  • Page 58: Chapter 7 Operation Via Web Browser

    ULTraFace 671 Series Face Recognition Terminal User Manual Chapter 7 Operation via Web Browser 7.1 Login You can login via the web browser or the remote configuration of the client software. Note Make sure the device is activated. For detailed information about activation, see Activation . Login via Web Browser Enter the device IP address in the address bar of the web browser and press Enter to enter the login page.

  • Page 59: Person Management

    ULTraFace 671 Series Face Recognition Terminal User Manual Set the volume when starting live view. Note If you adjust the volume when starting two-way audio, you may hear a repeated sounds. You can capture image when starting live view. Reserved function. You can zoom in the live view image. Unlock the linked door.

  • Page 60: Search Event

    ULTraFace 671 Series Face Recognition Terminal User Manual Click Save to save the settings. Add Face Picture Click User → Add to enter the Add Person page. Click + on the right to upload a face picture from the local PC. Note The picture format should be JPEG and the size should be less than 200K.

  • Page 61: Configuration

    ULTraFace 671 Series Face Recognition Terminal User Manual Enter the search conditions, including the employee ID, the name, the card No., the start time, and the end time, and click Search. The results will be displayed on the right panel. 7.5 Configuration 7.5.1 Set Local Parameters Set the live view parameters, record file saving path, and captured pictures saving path.

  • Page 62: Set Dst

    ULTraFace 671 Series Face Recognition Terminal User Manual Figure 7-3 Time Settings Click Save to save the settings after the configuration. Time Zone Select the device located time zone from the drop-down list. Time Sync. You should set the NTP server's IP address, port No., and interval. Manual By default, the device time should be synchronized manually.
  • Page 63 ULTraFace 671 Series Face Recognition Terminal User Manual Figure 7-5 Upgrade and Maintenance Page Click Reboot to start reboot the device. Restore Parameters Click Configuration → System → Maintenance → Upgrade & Maintenance . Factory All parameters will be restored to the factory settings. You should activate the device before usage.

  • Page 64: Change Administrator's Password

    ULTraFace 671 Series Face Recognition Terminal User Manual Note Do not power off during the upgrading. 7.5.6 Change Administrator's Password Steps 1. Click Configuration → User Management . 2. Click 3. Enter the old password and create a new password. 4.
  • Page 65 ULTraFace 671 Series Face Recognition Terminal User Manual Figure 7-6 TCP/IP Settings Page Click Save to save the settings. NIC Type Select a NIC type from the drop-down list. By default, it is Auto. DHCP If uncheck the function, you should set the IPv4 address, IPv4 subnet mask, IPv4 default gateway, MTU, and the device port.

  • Page 66: Set Video And Audio Parameters

    ULTraFace 671 Series Face Recognition Terminal User Manual Set Wi-Fi Parameters Set the Wi-Fi parameters for device wireless connection. Steps Note The function should be supported by the device. 1. Click Configuration → Network → Basic Settings → Wi-Fi . Figure 7-7 Wi-Fi Settings Page 2.

  • Page 67: Set Video Intercom Parameters

    ULTraFace 671Series Face Recognition Terminal User Manual Figure 7-8 Video Settings Page Set the stream type, the video type, the bitrate type, the frame rate, and the Max. bitrate. Click Save to save the settings after the configuration. Set Audio Parameters Click Configuration →...

  • Page 68: Set Access Control And Authentication Parameters

    ULTraFace 671 Series Face Recognition Terminal User Manual Set the device installed community No. Building No. Set the device installed building No. Unit No. Set the device installed unit No. Floor No. Set the device installed floor No. If you select outer door station as the device type, you should enter a number between 1 and Note If you change the No., you should reboot the device.

  • Page 69: Set Rs-485 Parameters

    ULTraFace 671 Series Face Recognition Terminal User Manual Set the door unlocking duration. If the door is not opened for the set time, the door will be locked. Open Timeout Alarm (Door Open Timeout Alarm) An alarm will be triggered if the door has not been closed within the configured time duration. Set Authentication Parameters Click Configuration →...

  • Page 70: Set Wiegand Parameters

    ULTraFace 671 Series Face Recognition Terminal User Manual Select a peripheral from the drop-down list according the actual situation. You can select from Card Reader, Extension Module, Access Controller, or Disable. Note After the peripheral is changed and saved, the device will reboot automatically. RS-485 Address Set the RS-485 Address according to your actual needs.

  • Page 71: Set Image Parameters

    ULTraFace 671 Series Face Recognition Terminal User Manual The device can connect a Wiegand card reader. Output The can connect an external access controller. And the two devices will transmit the card No. via Wiegand 26 or 34. 4. Click Save to save the settings. Note If you change the peripheral, and after you save the device parameters, the device will reboot automatically.

  • Page 72: Set Supplement Light Brightness

    ULTraFace 671 Series Face Recognition Terminal User Manual Enable or disable the WDR function. When there are both very bright and very dark areas simultaneously in the view, WDR balances the brightness level of the whole image and provide clear images with details. Brightness/Contrast/Saturation/Sharpness Drag the block or enter the value to adjust the live video's brightness, contrast, saturation, and sharpness.
  • Page 73 ULTraFace 671 Series Face Recognition Terminal User Manual Figure 7-16 Smart Settings Page Click Save to save the settings after the configuration. Face Anti-spoofing Enable or disable the live face detection function. If enabling the function, the device can recognize whether the person is a live one or not. Note Biometric recognition products are not 100% applicable to anti-spoofing environments.

  • Page 74: Set Notice Publication

    ULTraFace 671 Series Face Recognition Terminal User Manual Figure 7-17 Notice Page Sleep Enable Sleep and the device will enter the sleep mode when no operation with the configured sleep time. Customize Screen Saver Enable the function, and you can upload the screen saver pictures from the local PC. You can also set the slide show interval for the screen saver.
  • Page 75 ULTraFace 671 Series Face Recognition Terminal User Manual Appendix B. Tips When Collecting/Comparing Face Picture The position when collecting or comparing face picture is as below: Positions (Recommended Distance: 0.5 m) Expression • Keep your expression naturally when collecting or comparing face pictures, just like the expression in the picture below.
  • Page 76 ULTraFace 671 Series Face Recognition Terminal User Manual...
  • Page 77 ULTraFace 671 Series Face Recognition Terminal User Manual Appendix C. Tips for Installation Environment 1. Light Source Illumination Reference Value Candle: 10Lux Bulb: 100~850Lux Sunlight: More than 1200Lux 2. Install the device at least 2 meters away from the light, and at least 3 meters away from the window or door.
  • Page 78 ULTraFace 671 Series Face Recognition Terminal User Manual Figure D-2 Device without Fingerprint Module...
