- Page 1 User Manual DALIGate DIN DGD-1-DE2DALI, DGD-1-DE4DALI Version 1.04 March 11, 2020...
-
Page 2: Table Of Contents
DALIGate DIN ArtNet/sACN/DMX to DALI converter Contents Specifications General information Safe operation Advantages Installation Operation Web interface settings ArtNet settings DALI control Network settings Connection scheme Technical maintenance Notes... -
Page 3: Specifications

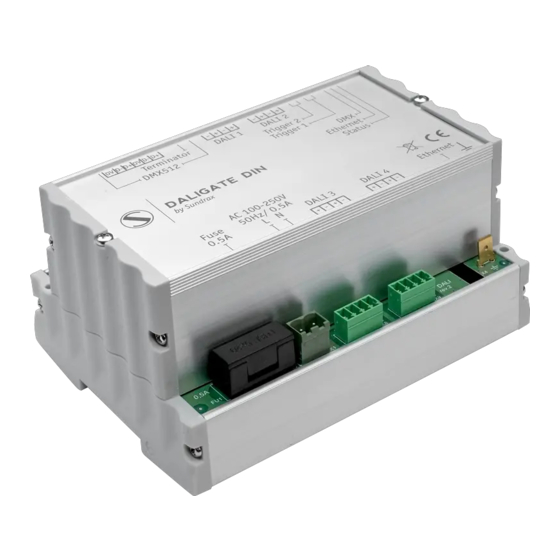

142(D) x 105(H) x 75(W) General information DALIGate DIN is DIN rail mounted converter that converts ArtNET/sACN/DMX signal into DALI protocol to include DALI lighting fixtures into controllable lighting network. With DIN rail mounting hassle-free installation and ArtNET/sACN/DMX input, DALIGate DIN is ideal as indoor solution for mixed lighting control purposes in theatres, small venues, architectural installations, industrial, warehouse, and agricultural lighting. -
Page 4: Advantages
DALIGate DIN ArtNet/sACN/DMX to DALI converter Advantages 2 DALI interfaces No external power supply for DALI is needed Simple web interface Selectable ArtNET/sACN or DMX512 control Installation Warning! Before mounting and power up, it is necessary to verify Before mounting and turning protective earthing and cable connections. -
Page 5: Web Interface Settings
DALIGate DIN ArtNet/sACN/DMX to DALI converter Web interface settings DALIGate DIN devices support configuring most of their parameters through the Web interface using HTTP protocol (TCP port 80). -
Page 6: Artnet Settings
DALIGate DIN ArtNet/sACN/DMX to DALI converter ArtNet settings To access the settings page enter the IP address of the device to the browser. Main settings page of the DALIGate DIN device will be displayed. Pic.1 ArtNet settings Device name edit device name... -
Page 7: Dali Control
DALIGate DIN ArtNet/sACN/DMX to DALI converter DALI control To edit the settings of one of DALI interfaces, click on the link “DALI1 CONTROL” or “DALI2 CONTROL”. Pic.2 DALI control settings Pic.2 Advanced settings Current DALI Network – shows the devices found on DALI line... -
Page 8: Network Settings
DALIGate DIN ArtNet/sACN/DMX to DALI converter Network settings To edit the network settings of the device, click on the link “Network settings”. Pic.3 Рис. 11 Network settings Расширенные настройки Pic.3 Network settings MAC address hardware address and secondary (permanent) IP address of the device... -
Page 9: Connection Scheme
DALIGate DIN ArtNet/sACN/DMX to DALI converter Connection scheme Ballasts/Drivers with Dimming Control (interface DALI) DALI DALI DALI DALI DALI DALI controllable controllable equipment 1 equipment 2 ArtNet/sACN/Other... -
Page 10: Technical Maintenance
Maintenance, search and troubleshooting should be performed by service personnel. The device should be free from dirt, dents, connecting cables and wires must be intact and securely fastened. Notes Please send all your warranty-related questions to support@sundrax.com All Sundrax products are covered by a 36 months warranty. - Page 11 DALIGate DIN ArtNet/sACN/DMX to DALI converter Sundrax Electronics 6008, First Central 200 2 Lakeside Drive, Park Royal, London NW10 7FQ United Kingdom + 44 (0) 208 991 33 19 office@sundrax.com www.sundrax.com...
- Page 13 Рис. 12 Настройки профиля...
