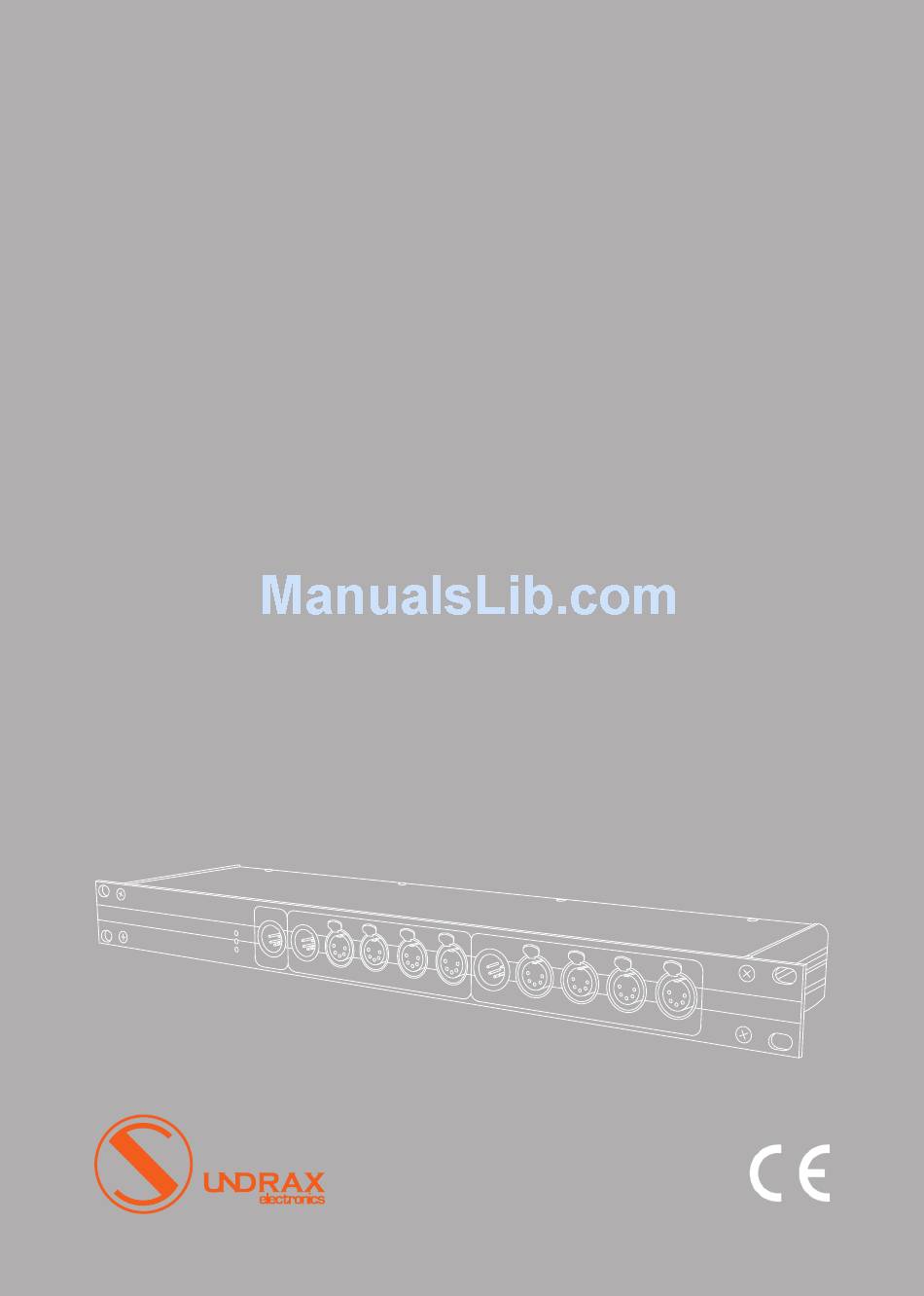

- Page 1 Version 1.02 January 17, 2017 User manual Splitter PRO Splitter PRO DUO SPP-X-1D5D, SPP-X-1D10D, SPPD-X-3D8D...
- Page 2 Table of contents Visual appearance Specifications Safe operation General information Installation Connection scheme Technical maintenance Notes...
-
Page 3: Visual Appearance
Visual appearance Pic.1 Main interfaces and indicators Input indicators Common input Input A А1...А4 inputs Input B В1...В4 outputs 1...10 outputs Specifications Supported protocols DMX512, RDM DMX data refresh rate 44 Hz DMX input ports 1 or 3 isolated DMX output ports 5,8 or 10 isolated DMX connectors XLR (5 pins, 3 pins) or RJ-45 (etherCON) -
Page 4: General Information
• Protect devices and cables from contact with corrosive liquids. Whenever a fault is detected in the device, please contact the manufacturer. General information Splitter PRO and Splitter DUO PRO devices designed for split- ting and elongation DMX lines. Modification with one input signal allows to get five or ten output signals. -
Page 5: Installation
2. Install the unit into the rack and secure it with screws. Connect the power cable plug to a power outlet. 3. Connect cable to input port «IN» if you use «Splitter PRO» de- vice or to necessary input port (IN COM, IN A or IN B) if you use «Splitter PRO DUO»... -
Page 6: Connection Scheme
Connection scheme Device with one input Splitter PRO... - Page 7 Device with three inputs IN COM (SECTION A+SECTION B, DMX B DMX A BACKUP) SECTION A SECTION B Splitter PRO DUO DMX A DMX B DMX A DMX B...
-
Page 8: Technical Maintenance
Technical maintenance Maintenance the device, search and troubleshooting should be performed by service personnel. The device should be free from dirt, dents, connecting cables and wires must be intact and securely fastened. -
Page 9: Notes
Notes... - Page 11 Please send all your warranty-related questions to support@sundrax.com All Sundrax products are covered by a 36 months warranty.
- Page 12 Sundrax Electronics, 6008, First Central 200 2 Lakeside Drive, Park Royal, London NW10 7FQ United Kingdom + 44 (0) 208 991 33 19 office@sundrax.com www.sundrax.com...
