INSTALLATION MANUAL
Cab-Mate Flex (from Cab-Mate One)
Document ID:IM-CMF
Last Updated: October 06, 2021
Pedigree Technologies recommends using a professional installer for optimal
results. Please let your Pedigree Technologies representative suggest a provider if
you need help with your hardware installations.
PedigreeTechnologies.com | Support: (701)-499-0022
Advertisement
Related Manuals for Pedigree Technologies OneView Cab-Mate Flex
Summary of Contents for Pedigree Technologies OneView Cab-Mate Flex
- Page 1 Cab-Mate Flex (from Cab-Mate One) Document ID:IM-CMF Last Updated: October 06, 2021 Pedigree Technologies recommends using a professional installer for optimal results. Please let your Pedigree Technologies representative suggest a provider if you need help with your hardware installations. PedigreeTechnologies.com | Support: (701)-499-0022...
- Page 2 INSTALLATION MANUAL Prerequisites Required Information [*needed for final activation of hardware - see last page] • Name of asset (ex: Propane Truck #20) • Detailed information about the asset (year, make, model, VIN, license plate, etc.) • State, area, organization, or group the asset belongs to (ex: North Region, MN tankers, etc.) •...
-
Page 3: Before You Begin

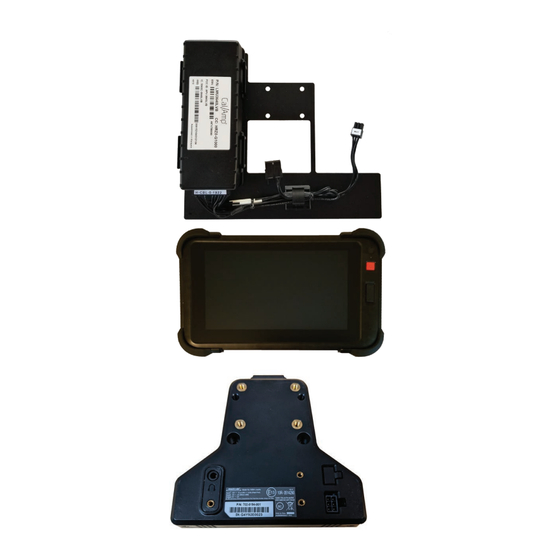

Cab-Mate One to Cab-Mate Flex Before You Begin TURN TO THE LAST PAGE - WRITE DOWN THE REQUIRED INFORMATION!!! • Decide where the hardware components will be located. If necessary remove any dash panels with removal tool. • Must be within reach of the diagnostic cable to be installed. •... - Page 4 Cab-Mate One to Cab-Mate Flex Installation Steps, Continued Assemble Cab-Mate Flex STEP TWO Detach the ball mount from the back of the cradle by removing the four screws that secure it. It may be easier to remove the mount by detaching the ball mount section. The ball mount section will be used in the assembly of the new device.
- Page 5 Cab-Mate One to Cab-Mate Flex Connect Diagnostics Cable to Cradle STEP FOUR Plug the canbus cable that you removed from the Cab-Mate One into the 16 pin port on the 3640 LMU (the only open port). 16 Pin Connector from canbus cable STEP FIVE Connect the 6 pin plug (smaller of the two plugs) from the LMU assembly into the matching port on the back of the cradle.
- Page 6 Tablet in Cradle/LMU Cradle/LMU STEP EIGHT Call Pedigree Technologies support to confirm installation before replacing any of the dash panels you may have removed during cable installation. Install Confirmation: 701-499-0022 You will be prompted for the following information during the set up process •...
