In the event of a missing or broken piece, call the Outdoor Living Today Customer Support Line @ 1-888-658-1658 with-
in 30 days of the delivery of your purchase. It is our commitment to you to courier replacement parts, free of charge,
within 10 business days of this notification. Replacement parts will not be provided free of charge after the 30 day
grace period.
All structures purchased from Outdoor Living Today are covered for a period of one year for defects in manufacturing
and workmanship. Costs incurred for customer installations are not included.
Failure to use supplied parts included in this kit could result in poor product performance and may void your warranty.
Please contact Outdoor Living Today's Customer Toll Free Line if you plan to deviate from our written instructions.
1-888-658-1658

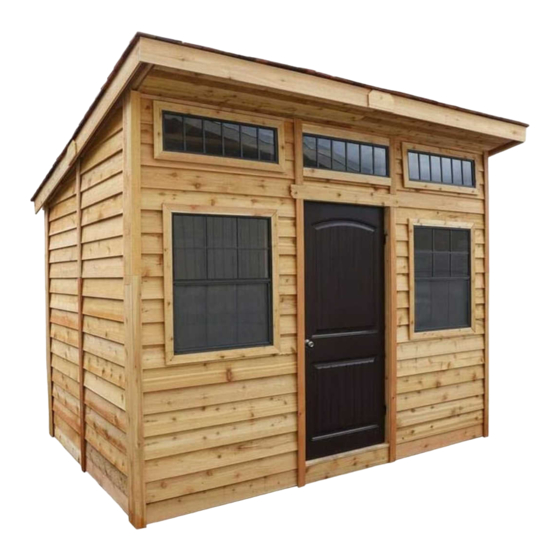

12x8 Studio Garden
Shed Interior Wall Kit
Assembly Manual
Thank you for purchasing a 12x8
Studio Garden Shed Interior Wall
Kit. Please take the time to identify
all the parts prior to assembly.
Customer agrees to hold Outdoor Living Today and any Authorized
Dealers free of any liability for improper installation, maintenance and
repair.
www.outdoorlivingtoday.com
Page 1
Version #1.2
Sept 19th, 2019
sales@outdoorlivingtoday.com
Advertisement
Related Manuals for OLT STU128
Summary of Contents for OLT STU128
- Page 1 Version #1.2 12x8 Studio Garden Sept 19th, 2019 Shed Interior Wall Kit Assembly Manual Thank you for purchasing a 12x8 Studio Garden Shed Interior Wall Kit. Please take the time to identify all the parts prior to assembly. Customer agrees to hold Outdoor Living Today and any Authorized Dealers free of any liability for improper installation, maintenance and repair.
- Page 2 Thank you for purchasing our 12x8 Studio Garden Shed Interior Wall. Please take the time to identify all the parts prior to assembly. 1. Ceiling Plywood Steps Ceiling 1A: 1 - 3/8” thick x 47 3/4” x 92 1/2” Center Ceiling Panel 1B: 2 - 3/8”...
- Page 3 12X8 Studio Interior Wall Kit HARDWARE PACKAGE Hardware Kit (Provided) x 430 1 1/2” 2 1/2” x 15 Finishing 1 1/4” x 126 Square Drive Bit Tools Required (Not Provided) Hammer Screw Gun/Drill Tape Measure Pliers Level 1/8” Drill Bit Ladders Safety Equipment Required (Not Provided)
- Page 4 Exploded view of all parts necessary to complete Interior Wall Section Ceiling and Panelized Walls. Identify all parts prior to starting. Ceiling Plywood Part 1 Rear Wall Panelized Wall Sections Nailing Part 2 Cleats 4 pcs (Part 2 A) Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 4...
- Page 5 1. Ceiling Plywood Section Lift Center Ceiling Panel up positioning evenly on center rafters. Attach with 10 - 1 1/4” Screws. You can find the Square Drive Screw Bit in the Hardware Kit Bag. Parts 1A - Center Ceiling Panel (3/8”...
- Page 6 2. Wall Section Cleats Parts Hardware Position and attach Rear Wall Nailing Cleats in 2A - Rear Wall Nailing Cleats S1 - 2 1/2” Screws rear wall corners only. There are 2 cleats per corner. (1 1/2” x 2 1/2” x 30”) x 4 x 12 total Evenly space.
- Page 7 Position and attach Bottom Rear Wall Panel against cleat. Plywood extends past siding on right side. Attach with 4 - 1 1/4” Screws per piece. 1 screw per corner. Parts 2B - Bottom Rear Wall Panel (42 3/4”w x 44 1/2”h) x 1 Hardware S2 - 1 1/4”...
- Page 8 Pre-drill siding with 1/8” drill bit. Parts Hardware Position and attach Top Center Wall Panel 2E - Top Center Wall Panel S2 - 1 1/4” Screws against middle wall studs. Attach with (45 1/4”w x 40 1/4”h) x 1 x 4 total 4 - 1 1/4”...
- Page 9 Parts Hardware Position and attach Large Window Wall Panel 2F - Large Window Wall Panel S2 - 1 1/4” Screws against wall studs in right corner. Plywood extends (46 1/2”w x 78”h) x 1 x 6 total past siding on right side. Attach with 6 - 1 1/4”...
- Page 10 Pre-drill siding with 1/8” drill bit. Parts Hardware Position and attach Transom 2H - Transom Window Wall Panel - Center S2 - 1 1/4” Screws Window Wall Panel in center betweem (39 1/4”w x 22 1/4”h) x 1 x 4 total left/right transom windows.
- Page 11 Parts Hardware Position and attach Bottom Right Side 2K - Bottom Right Side Wall Panel S2 - 1 1/4” Screws Wall Panel in rear corner. Panel will slide in - Rear x 4 total between window panel in corner. Attach with (44 7/8”w x 44 1/2”h) x 1 4 - 1 1/4”...
-
Page 12: Trim Section
3. Trim Section Flush Top Sash Vert. Sash Ledge Parts (Steps 20 - 21) Hardware (Steps 20 - 21) Locate Top, Vertical and 3A - Straight Cut Top Sash N1 - 1 1/2” Finishing Nails Ledge Sash pieces. Starting with (1/2”... - Page 13 Parts (Steps 22 - 23) Hardware (Steps 22 - 23) Locate Top and Bottom 3D - Straight Cut Top/Bottom Sash N1 - 1 1/2” Finishing Nails Transom Sash pieces. Starting (1/2” x 2 7/8” x 35 1/4”) x 2 /window x 54 total with Top Sash, position in 3E - Straight Cut Side Sash...
- Page 14 Parts Hardware Locate all Corner Rounded Trims. Rear 3F - Rear Corner Rounded Trim N1 - 1 1/2” Finishing Corner Tops are angle cut 11 deg. Attach in (85 3/8” with 11 deg. one end) x 2 Nails corner with 8 - 1 1/2” Finishing Nails. Front 3G - Front Corner Rounded Trim x 36 total Corners use 2 peices (70”...
- Page 15 Parts Hardware Locate all Vertical Wall Trims. Attach 3L - Side Wall Vertical Trim N1 - 1 1/2” Finishing 60” long side trim (3L) with 11 deg angle (1/4” x 1 1/2” x 60”-11 deg. end) x 2 Nails cut end and then short (3M) trim on wall 3M - Side Wall Vertical Trim x 36 total seam with 10 - 1 1/2”...
- Page 16 Parts Hardware Position Top/Bottom and Side 3S - Top/Bottom Transom Window Trims N1 - 1 1/2” Finishing Window Trims lining up the 45 deg. cut (1/2” x 1 1/2” x 37 1/2” - 45 deg. ends) x 4 Nails ends. When in correct location, attach 3T - Side Transom Window Trims x 36 total with 18 - 1 1/2”...
- Page 17 Parts Hardware Place 1st Floor Base Trim between Vertical 3X - Floor Base Trims N1 - 1 1/2” Finishing Wall Trim. Measure trim and cut to correct (1/4” x 1 1/2” x 48” - Straight cut Nails length. Attach with 4 - 1 1/2” Finishing Nails. - (customer to cut to length) x 9 x 36 total Complete remaining Floor Base Trims measuring...
