ChinaPST PST-WIP-350 Installation Manual

Installation Manual For Indoor
1. BRIEF INTRODUCTION
This is a wireless intelligent pir detector with a passive
infrared sensor matching advanced micro-power consumption
circuit processing technology. It is with very low rate of
false alarm and fake alarm with bi-direction temperature
compensation technology which can perform intrusion
detection in very wide temperature range. It adopts unique
pet data calculation way which can fullfill pet immunity up
to 20kg. It is also remarkable at anti hot air, waving curtain
or other objects, can offer stable detection base on 2 grade
sensitivities. Its low power consumption design can support
the battery life up to 24 months, so it is more worthy of function
and stability than other pir detectors with similar price in
the market.
2. MAIN FUNCTION
- Mini power consumption design
-2 grade detection sensitivities for option
-Digital pet immunity design up to 20kg when used with particular lens
-Bi-direction temperature compensation technology
-High capacity battery (with 24 months life time)
-EDS/anti electric shock/anti mobile interference
-Anti white light
-Fully-sealed optical parts
-Multi-directional bracket, fit for wall or corner mount
3. SPECIFICATIONS
Power： 3.6V 1/2AA batteries
Current ：
20uA（stand by）
14mA (alarm)
Mounting height： 1.8m-2.4m
Detection range：
12m*12m 100°
Temp offset：
Digital technology
Pulse：
2/3 pulses for option
Sensitivity： High/low for option
Anti EMI：
0.1-500MHz/30V/m
Anti white light：
>10000LUX
Alarm output：
Ev1527
Alarm time：
2s
Alarm period：
4 min in USE mode
Wireless Tx：
=200m（open space）
Temperature：
-10℃/+55℃
Humidity：
95%RH
Detection speed：
0.2m/s - 3.5m/s
Fire proof：
Special ABS plastic
Pet immunity：
20Kg
Size： ×
78.5mm×53.5mm 39mm
Wireless Digital PIR Detector
+ 6m
2m
- 6 m
TOP VIEW
Wide angle lens
+ 6 m
2 m
- 6m
TOP VIEW
Pet lens

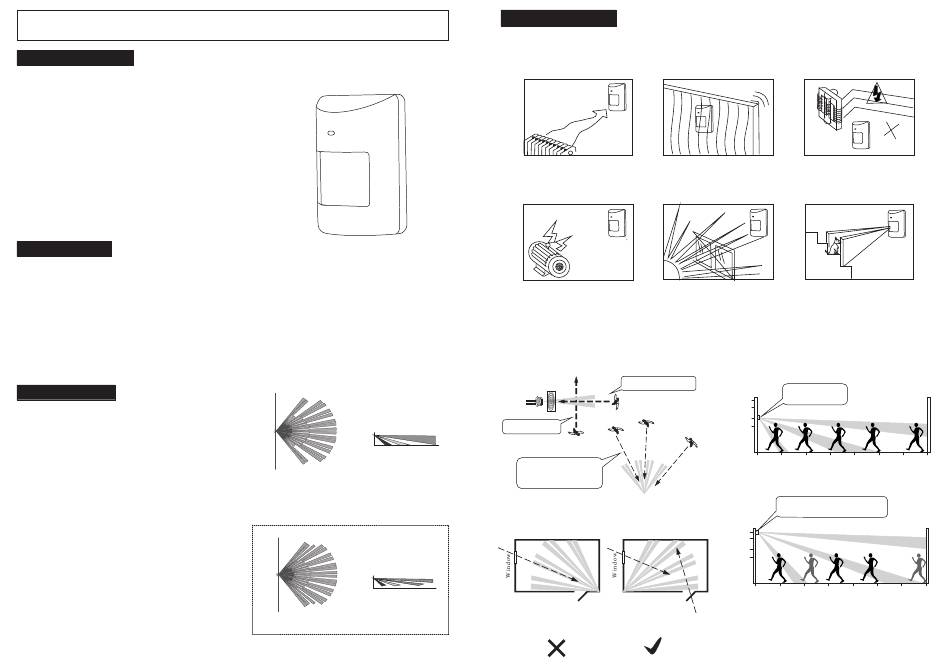

4. INSTALLATION GUIDE
Select most suitable installation point fit for PIR detection, put detector onto proper position, keep away from
door, window, running machine or heat source.
Don't face detector
tocold/heat source
Keep away from strong
EMI interference
On installation angle
Detection is with mechanical difference to intrusion
angles
Most sensitive
12m
Detection distance might
SIDE VIEW
be shortened to movement
from these directions
On installation position
Unreasonable installation position
1 2 m
SIDE VIEW
Detection is not sensitive to
intrusion from window in this way
X
X
Installation base
should be stable
X
X
Don't face directly
to the sun
On installation height
Recommended installation height is 1.8-2.4m
Lowest sensitive
2.6m
1.5m
3m
Best installation
2.6m
2m
1.5m
0m
Door
Door
Detector is sensitive to intrusion
from door and windows in this way
Keep away from
high-pressure cable
X
Wrong installation
on pet immunity
Suitable height
3m
2m
0m
0m 1.5m 3m 4.5m 6m 7.5m 9m 10.5m
Too high to be with blind area
7.5m
0m 1.5m 3m 4.5m 6m 9m 10.5m
