ChinaPST PST Series Manual

Esteemed customers, thank you very much for purchasing
"PST"
our products "HM" series infrared burglarproof baluster.
In order to use our product properly, please read the
booklet carefully before operating the product.
1.SUMMARY
This indoor /outdoor available Multi-beams positive
infrared burglarproof baluster is an advanced
intelligentize Hi-Tech product. With the features of
simple installation, easy debugging, aesthetic appearance,
etc. It can be installed in fences, doors, windows,
balconys, and which place should be prevented from
burglars, to protect your safety and properties. The
product is widely suitable for the safety of residential
house, villas, factories, schools, office building, etc.
2.PERFORMANCE
2.1 Intelligent judgment: when the theft comes into the
protective zone, and block two or more infrared beams
which over 40ms will give out the alarm. It can effectively
prevent the traditional deficiencies of false alarm.
2.2 Identify object: can distinguish the size of the
traversing object automatically. When the lawless
intruder coming, it will give out alarm. But it doesn't work
when the intruder is a cat or a dog.
2.3 High reliabilities: Anti-cutting, anti-interference
technology. Prevent the intruder adopts destroy method or
gives false signal.
2.4 Rainproof /Moistureproof: Rainproof structure,
available for outdoor or damp place.
2.5 Pretty structure: The main outer shell adopts superior
aluminous alloy materials, and the exterior adopts plastic
spray processing, firm and durable. Imported optical filter
to block motley light.
2.6 Easy for installation & debugging: After fixing the
installation seat, the angle of transmitting /receiving
infrared beams can be circumvolved 360 freely.
2.7 Protective grade adjustable: Can be set as different
protective grade according to user's requirement. Strict
grade and ordinary grade optional.

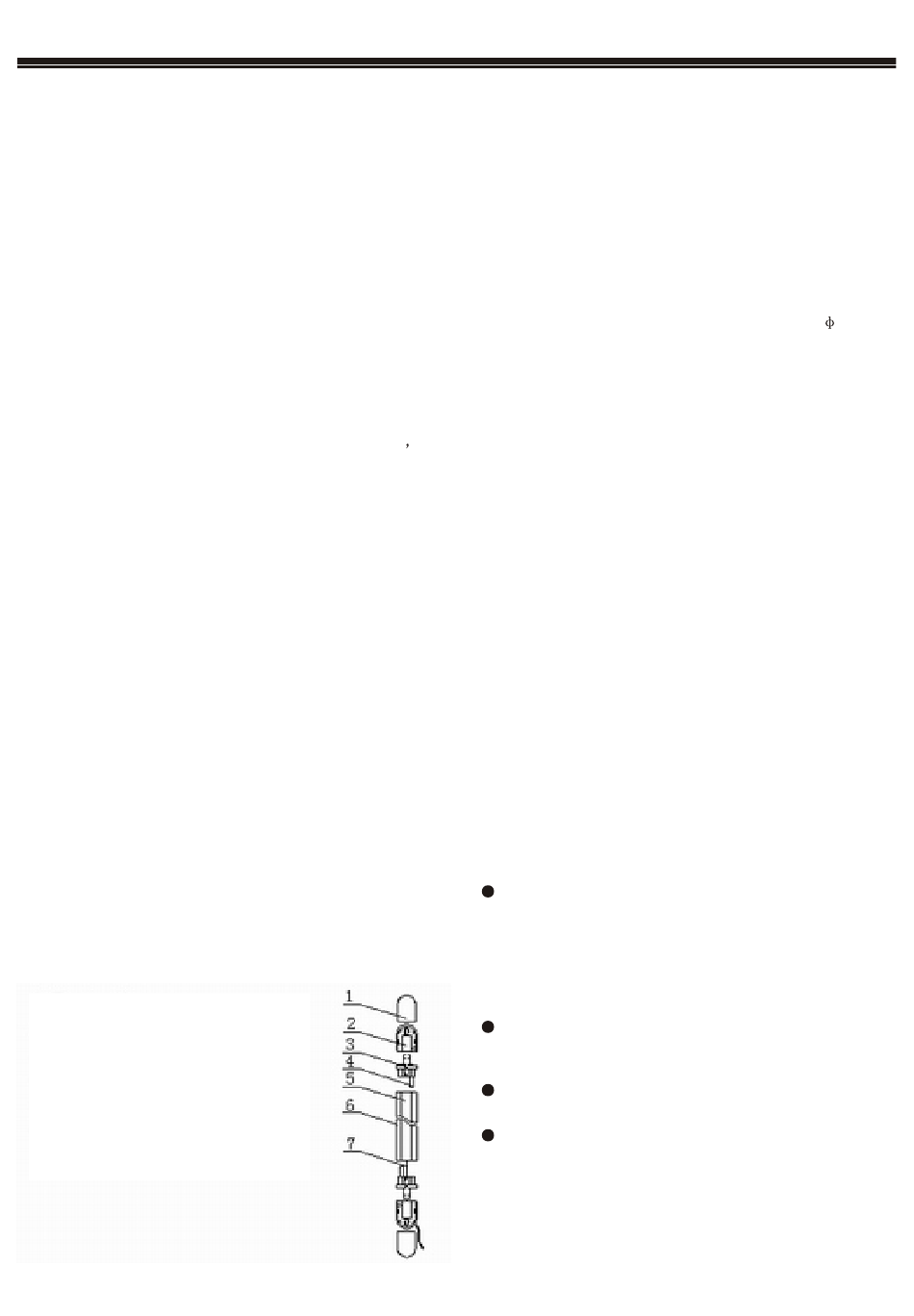

3.PARTS NAME
1. Protective cover
2. Installation seat
3. Down-lead seat
4. Anti-dismantle reed switch
5. Infrared lens
6. Section steel pole
7. Derivative line
MANUAL FOR INFRARED BALUSTER
4.INSTALLATION METHOD
4.1 Fix on the position for installation, make sure the
infrared beams can block the objective passage effectively.
Keep the transmitter and the receiver are parallel and aim
at each other.
4.2 Break down the threading hole in the installation seat
with some pointed instruments, like the screwdriver.
Make the power cord through the threading hole of the
installation seat, then through the threading hole of the
down-lead seat. Finally, connect the power cord with the
power terminal according to "+" and "-".
4.3 Drill holes on the installation interface with
aiguille, drive into the plastic post, then fix the
installation seat with M4 tapping screws.
4.4 Make sure the transmitter and the receiver aim at each
other. While connect with power supply, the power
indicator of the transmitter shows green light, and the
work indicator shows red intermittent flash. After the both
parts aim at each other, the red light of the receiver turn
off, and the buzzer stop buzzing. In case there are
something lighttight block any neighboring 2 beams
simultaneously, the indicator of the receiver shows red
intermittent flash, and the buzzer start to buzz, the
detector give out wired /wireless alarm signal.
It's the best to adjust angle of the detector in the bad
climate, like in the situation of fierce sunlight or fog.
4.5 Tighten the screws in the installation seat of the
transmitter and the receiver, then cover the protective
cover, the whole operation is ok.
4.6 The receiver will give out wired /wireless alarm signal
at the situation as following;
4.6.1 There are something block any neighboring 2 beams
simultaneously.
4.6.2 Disconnect power supply of the transmitter or the
receiver (cut off the power cord by man-made).
4.6.3 Move the position /orientation of the transmitter or
the receiver.
Note:
In order to prevent false alarm result of public power off,
we suggest the user select UPS as power supply, which
means it will process float charging when the public
power is on the rails, and it will alternate automatically as
powered by UPS while the public power off. It is
forbidden to use inferior non-linear switching power
supply.
In order to make full usage with the infrared baluster.
Please select the condign model according to the practical
guard range.
Avoid the irradiation of sharp light, lamplight or other
strong light.
Keep the outer shield cleaning for fear influence the
work of the detector.
