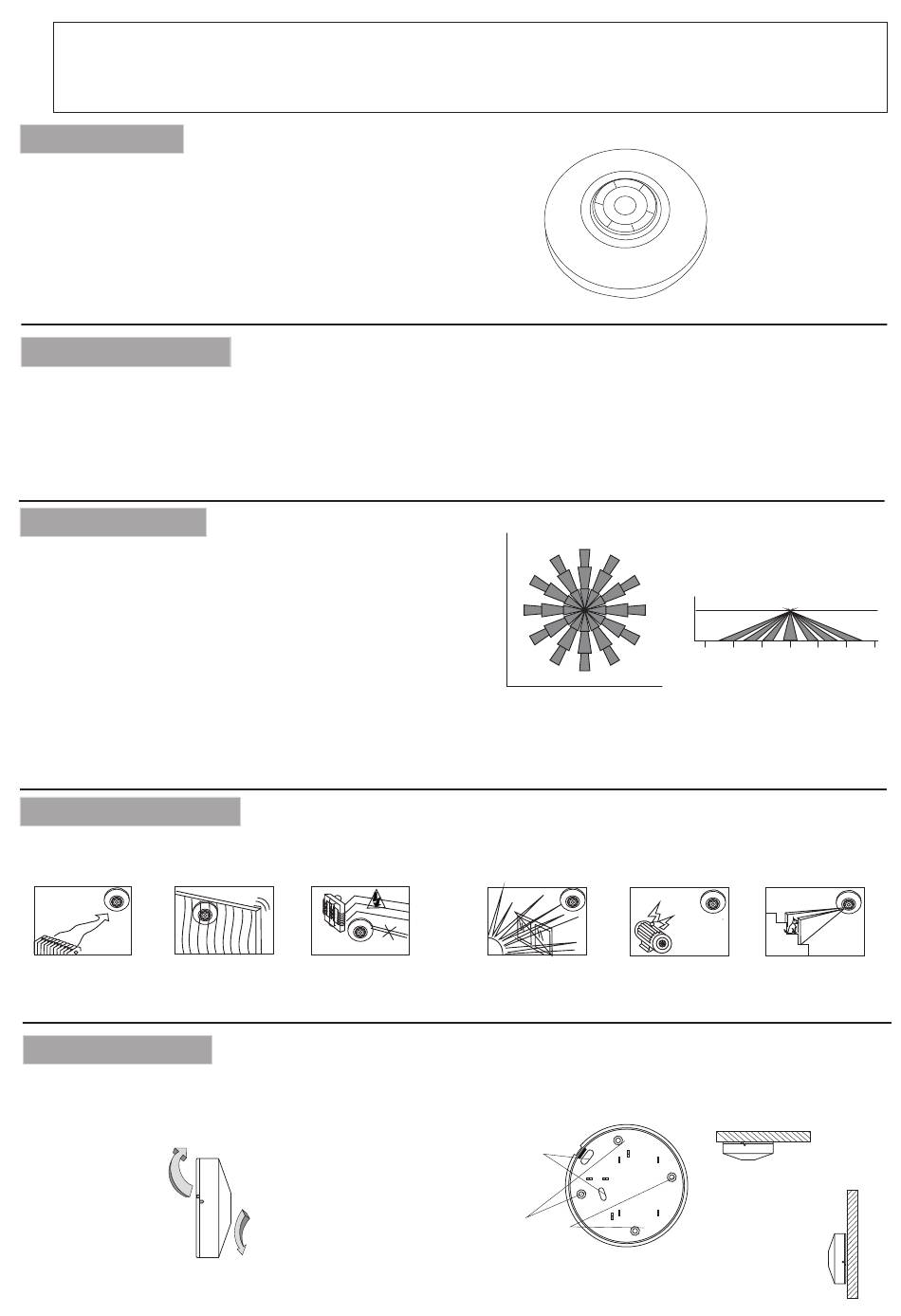

ChinaPST PST-IR104N Installation Instructions

1. INTRODUCTION
It Adopt advanced and stable circuit design, very low rate of
failure alarm and false alarm; it can realize complete
movement detection and actually temperature compensation.
It adopts unique pet variable calculation for real pet immunity
below 10kg. And it can reduce its false alarm greatly during hot
air current, moving animals and great changes in temperatures.
Its PIR detection than other normal PIR detectors in the market.
2. BRIEFINTRODUCTION
-Selectable detection sensitivity
- Dual-layer structure temperature compensation tech which
has solved the problem of interference from normaltemperature.
-Alternative Led OFF
-Anti white light
-37 beams Fresnel lens with down-view window on its 4 planes
-Total view:360°，Monitoring scale:12m
3. SPECIFICATIONS
Power supply:9-16VDC
Current:N.C:5mA,NO:15mA 12VDC
Install high:1.5m-3m
Coverage:12m*12m 360°
Alarm time:1.5-2.5s
Anti RFI/EMI:0.1-500MHz/3V/m
Anti-white light:>10000LUX
Alarm output:NO/NC 200mA/24V
Temperature:-10℃/+55℃
Humidity(RH):95%
Sensitivity: 3P /2P Select
Detect speed:0.3m/s to 1.5m/s
Dimensions(L*H):115mm*32mm
4. INSTALLATION GUIDE
Select the best installation point fit for PIR technologies. Put it onto the selected place and keep it away from door, window, run-
ning machine or heat sources.
X
No direct facing cold Installation base
/hot source shall be stable
5. WALL FASTENING
A. Hold product by hand, press out the bottom cover by one hand
while the upper cover by the other hand, contrarotate the covers
to open the detector.
Installation instructions
Dual element PIR Motion Detector
X
Keep away from high
pressure power
Figure 4
6m
4m
2m
0m
2m
4m
6m
6m 4m 2m 0m
TOP VIEW
X
No direct sun shine
Figure 3
B. Wall mount and ceiling mount for installation.
wiring hole
Wall rivet
Figure 1
3m
6m 4m 2m
2m 4m 6m
SIDE VIEW
Figure 2
X
Keep away from
strong interference
Ceiling
Figure 5
0m 2m 4m 6m
X
Install error
Wall
