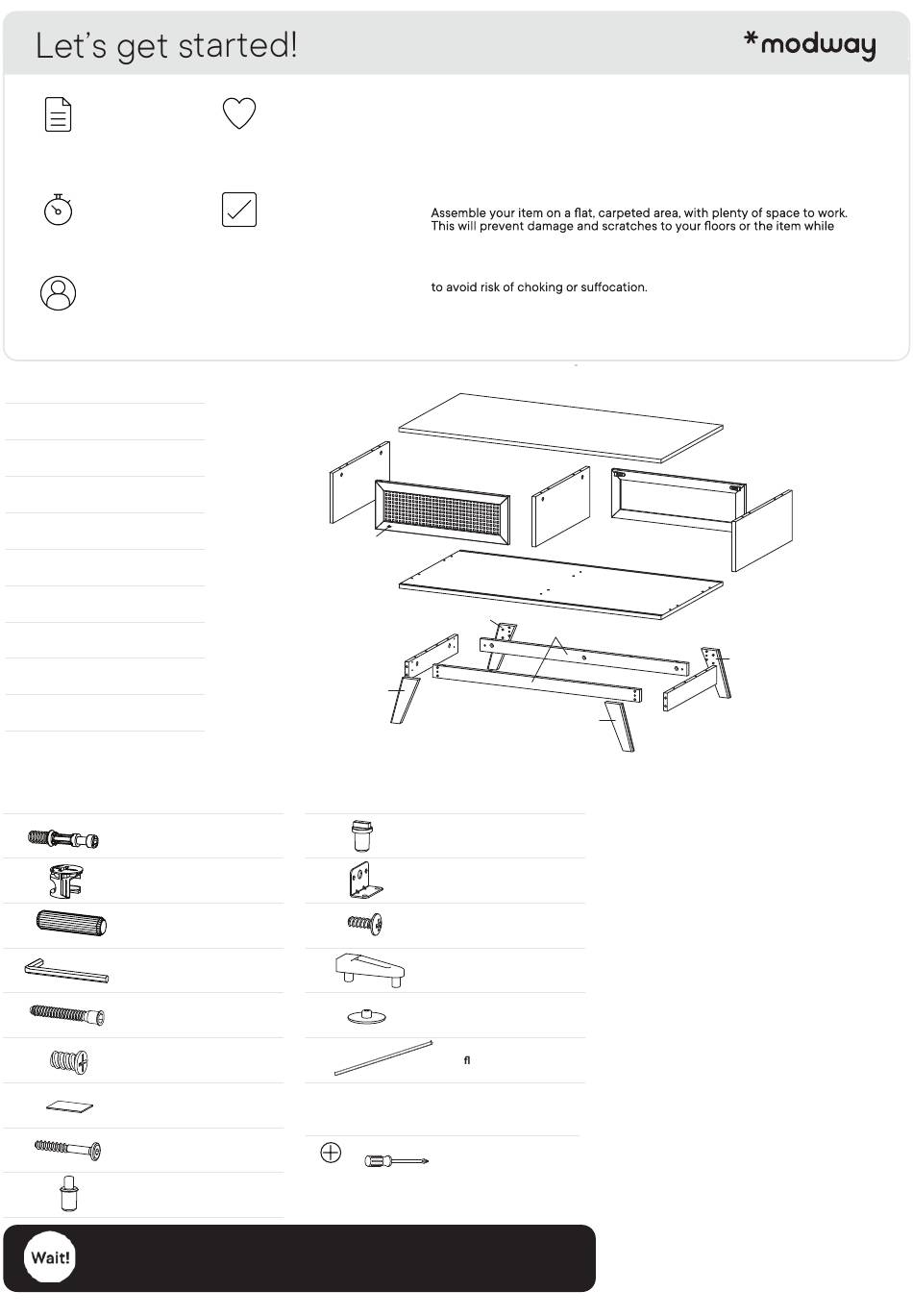

What You Need - modway EEI-6041 Assembly Instructions Manual

Read through all of
the instructions
before starting
Approx. 60 minutes
assembly time
2 people recommended
for assembly
Furniture components:
1 Top Board
2 Bottom Board
3 Side Board
4 Center Board
5 Frame Door
6 Bottom Skirt 1
7 Bottom Skirt 2
8 Leg 1
9 Leg 2
Provided hardware:
A Cam Bolt Ø6 x 35 mm
B
Cam Lock Ø15 mm
C Wood Dowel Ø8 x 30 mm
D Allen Key
E Screw M 7 x 50 mm
F Screw M 6 x 12.5 mm
G
Floor Protector
H Screw M 6.4 x 35 mm
I Pin Sliding Top
Missing parts or hardware? Need assistance?
Contact us before returning your item. We're here to help!
609.256.9000 • cs@modway.com
Care instructions are
listed in the last step
of this manual
Make sure you have all
parts and components
before discarding any
packing materials
x1
x1
3
x2
x1
x2
x2
x2
x2
x2
x16 J
K
x16
x36 L
x1
M
x6 N
x12 US70

What you need:

x4
x4
Phillips
x4
Only use hand tools to assemble this item. Do not use power tools.
Do not tighten bolts or screws completely until all hardware is lined up
and inserted into the holes.
Do not over-tighten screws and bolts to avoid stripping the hardware
or cracking the item.
you're assembling the product.
Keep all components and packaging out of reach of children or animals
5
2
9
7
8
Pin Sliding Bottom
Bracket
Screw M 4.5 x 12.5 mm
Stopper
Screw Cap Ø15 mm
Anti - De ection Bar
Phillips Head Screwdriver
1
5
4
6
7
9
x4
x4
x8
x4
x6
x1
3
8
PAGE 2 OF 9
