2/2-WAY
SEMI-DIRECT OPERATED
NORMALLY OPEN
Solenoid Valve ST-SB-series

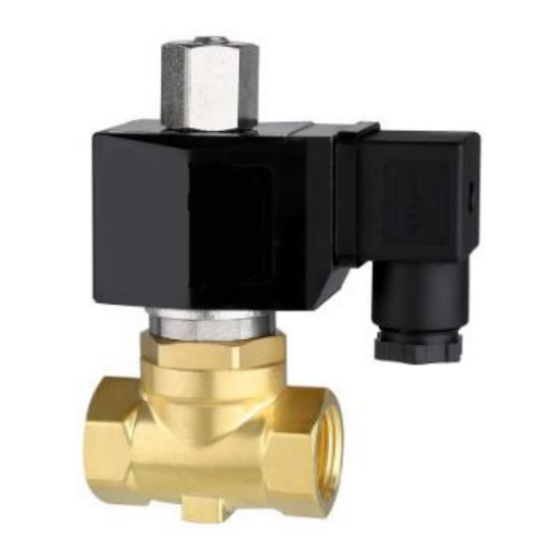

The ST-SB is a semi-direct operated 2/2-way solenoid valve.
The valve is normally open. The body material can be brass
or stainless steel with a NBR, EPDM or FKM seal. The valves
have an orifice of 9mm (stainless steel) or 10.5mm (brass)
and can be used from a zero pressure difference. The ST-SB
solenoid valves are compatible with all coils from the CS2-
series.

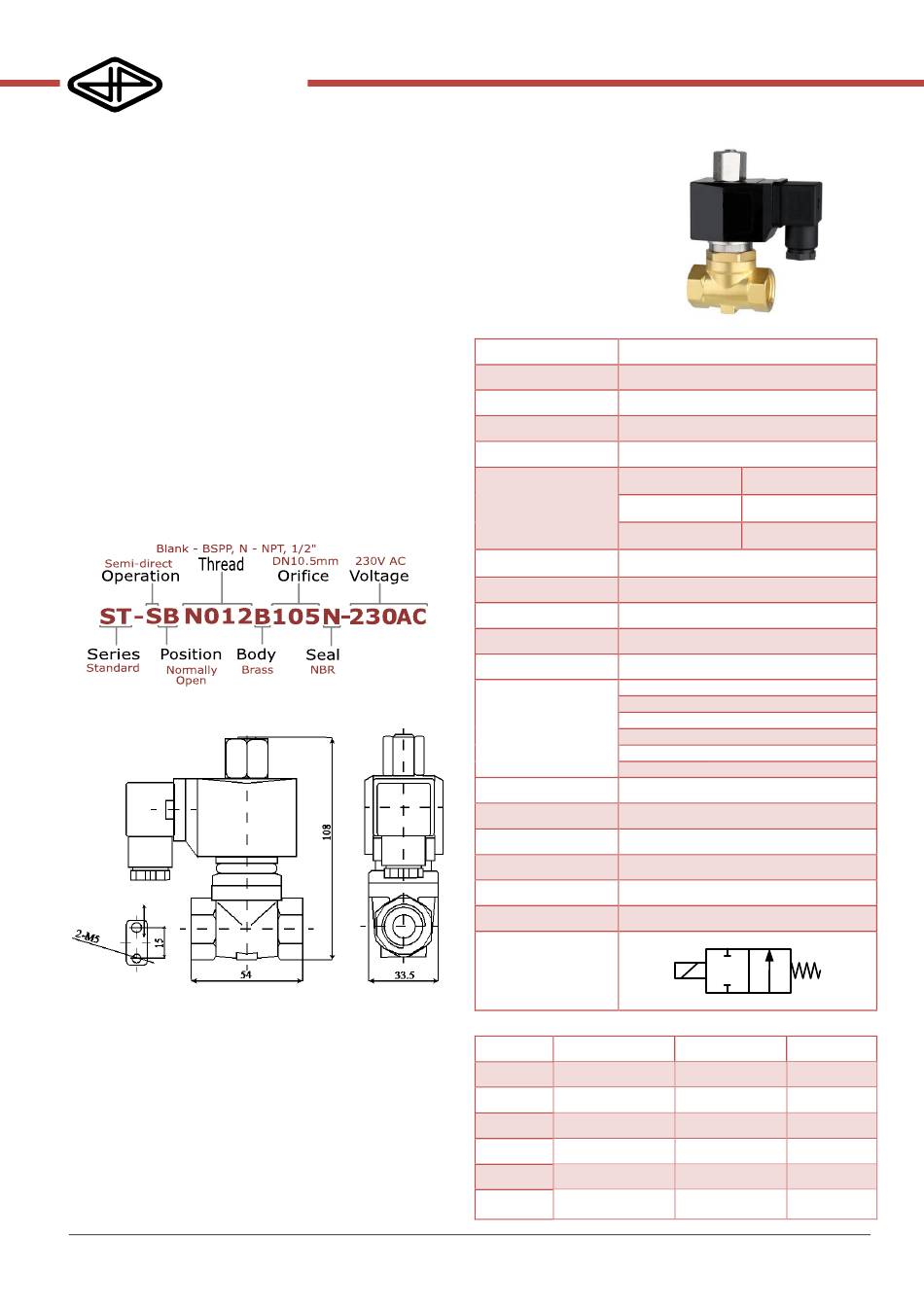

Example of product code
Dimensions
MANUAL-ST-SB-EN v1.2
Series
Function
Operation
Position
Body Material
Seal &
Media Temperature
Thread
Ambient Temperature
Min. Press. Difference
Max. Pressure
Coil series
Voltage
Response Time
Insulation Class
Power
Duty Cycle
Connector
Protection Class
Circuit Diagram
Pipe
1/4" (014)
1/4" (014)
3/8" (038)
3/8" (038)
1/2" (012)
1/2" (012)
www.jpfluidcontrol.com
Standard (ST)
2/2 way
Semi-direct (S)
Normally open (B)
Brass (B) / SS 316 (S)
NBR (N)
EPDM (E)
FKM (F)
BSPP / NPT (N)
Max 50°C
0 bar
16/10 bar (AC/DC)
CS2
380V AC 50Hz (380AC)
230V AC 50/60Hz (230AC)
120V AC 50Hz (120AC)
24V AC 50/60Hz (024AC)
24V DC (024DC)
12V DC (012DC)
50 ms / 400 ms (Open/Close)
Class F
22 W / 33VA
100% ED
EN 175301-803 (formerly DIN 43650A)
IP 65 (with cable plug)
2
1
Body Orifice
Brass (B) 10.5 mm (105)
Stainless Steel (S) 9 mm (080)
Brass (B) 10.5 mm (105)
Stainless Steel (S) 9 mm (080)
Brass (B) 10.5 mm (105)
Stainless Steel (S) 9 mm (080)
1
ST-SB SERIES
SOLENOID VALVES
-10..80°C
-30..130°C
-10..120°C
2
1
Kv (m3/h)
1.27
1.04
1.45
1.04
1.51
1.04
