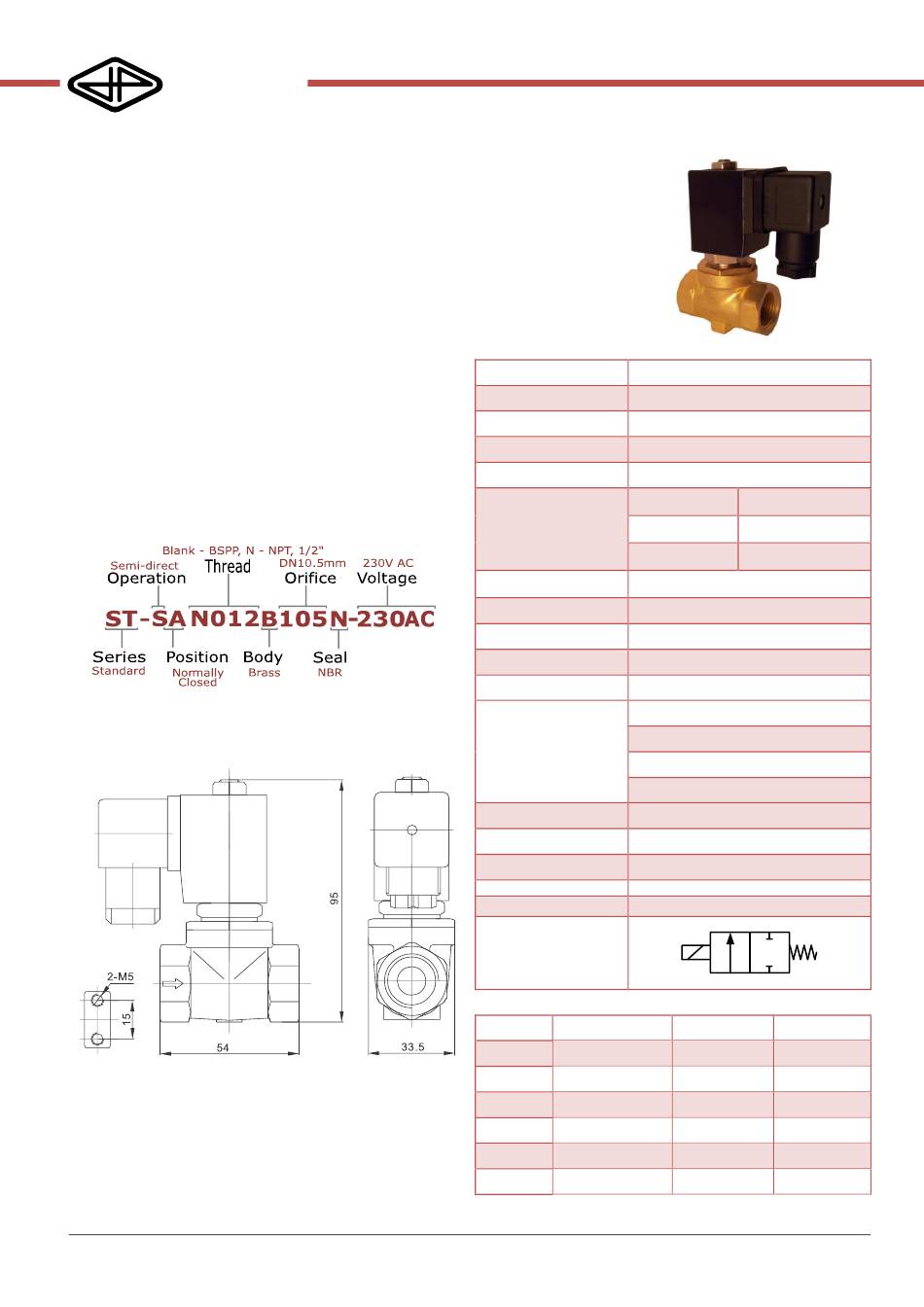

JP Fluid Control ST-SA Series Instruction Manual

JP FLUID CONTROL
2/2-WAY
SEMI-DIRECT OPERATED
NORMALLY CLOSED
Solenoid Valve ST-SA-series
The ST-SA is a semi-direct operated 2/2-way solenoid
valve. The valve is normally closed. The valves have an
orifice of 10.5mm and can be used from a zero pressure
difference. The body material can be brass or stainless
steel with a NBR, EPDM or FKM seal. The ST-SA solenoid
valves are compatible with all coils from the CS1-series.
Example of product code
Dimensions
MANUAL-ST-SA English
Series
Function
Operation
Position
Body Material
Seal &
Media Temperature
Thread
Ambient Temperature
Min. Pressure Difference
Max. Pressure
Coil series
Voltage
Insulation Class
Power
Duty Cycle
Connector
Protection Class
Circuit Diagram
Pipe Body
1/4" (014) Brass (B)
1/4" (014) Stainless Steel (S)
3/8" (038) Brass (B)
3/8" (038) Stainless Steel (S)
1/2" (012) Brass (B)
1/2" (012) Stainless Steel (S)
www.jpfluidcontrol.com
ST-SA SERIES
SOLENOID VALVES
Standard (ST)
2/2 way
Semi-direct (S)
Normally Closed (A)
Brass (B) / SS 316 (S)
NBR (N) -10..+80°C
EPDM (E) -30..+130°C
FKM (F) -10..+120°C
BSPP / NPT (N)
Max +50°C
0 bar
16/10 bar (AC/DC)
CS1
230V AC 50/60Hz (230AC)
24V AC 50/60Hz (024AC)
24V DC (024DC)
12V DC (012DC)
Class F
15 W
100% ED
EN 175301-803 (formerly DIN 43650A)
IP 65 (with cable plug)
2 2
1 1
Orifice Kv (m3/h)
10.5 mm (105)
8 mm (080)
10.5 mm (105)
8 mm (080)
10.5 mm (105)
8 mm (080)
1.25
1.02
1.43
1.02
1.49
1.02
