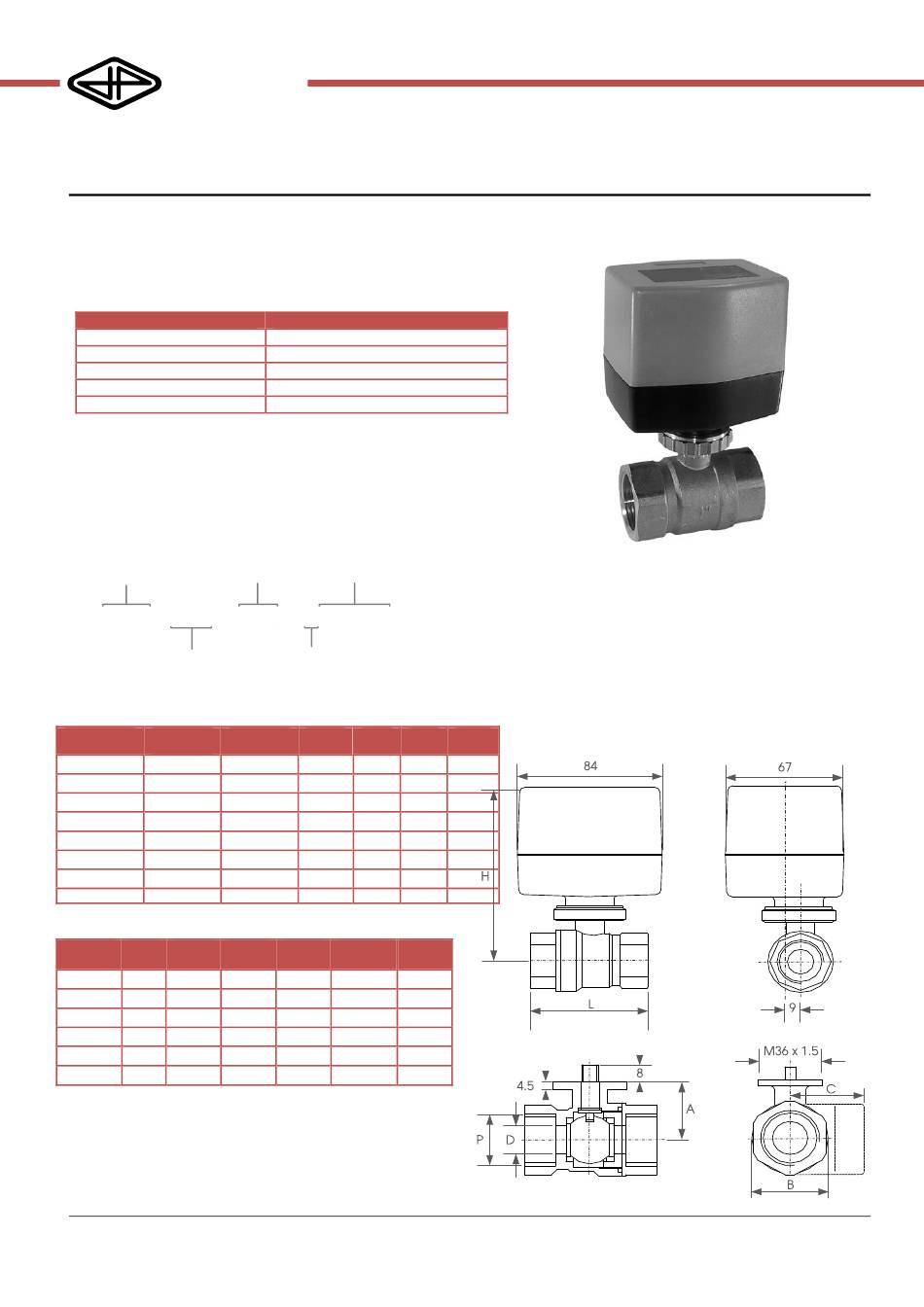

JP Fluid Control BW Series Manual

JP FLUID CONTROL
Manual – BW-series

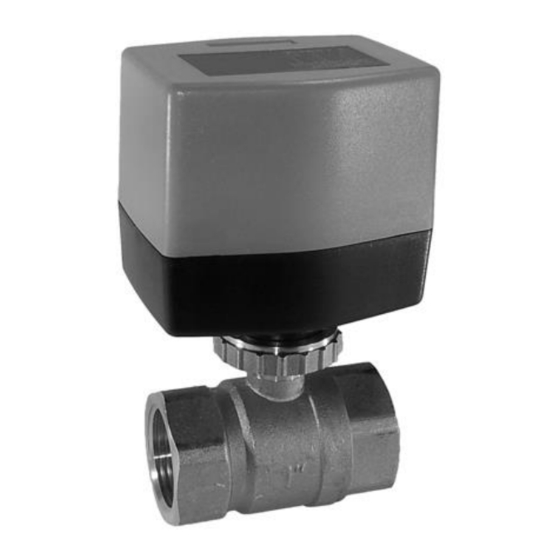

Energy efficient and robust electrical ball valve with wide field of
application. Common applications include ventilation, heating
systems, solar water heaters, irrigation systems and industrial
equipment.
Features
Media
Medium Temperature
Ambient Temperature
Operating pressure
IP-rating
All ball valves of the BW series are compatible with the actuators from
the AW1 series. The tables below are showing the different versions.
The product code of a complete electric ball valve is composed of the
code for the actuator and the ball valve.
Example Product Code:
2-w ay
Va lve Ac tuator
BW2 – 012 – AW1 – R230AC
Pip e T hread
G1/ 2"
Overview Actuators
Product Code Power Operation
Supply
AW1-230AC 230V~50Hz 3 way
AW1-R230AC 230V~50Hz On/Off
AW1-024AC 24V~50Hz 3 way
AW1-R024AC 24V~50Hz On/Off
AW1-024DC 24V DC 3 way
AW1-R024DC 24V DC On/Off
AW1-012DC 12V DC 3 way
AW1-R012DC 12V DC On/Off
Overview Ball Valves
Code Pipe Function Orifice (D)
(P)
BW2-012 G1/2" 2/2 way 12 mm
BW2-034 G3/4" 2/2 way 15 mm
BW2-100 G1" 2/2 way 20 mm
BW3-012 G1/2" 3/2 way 10 mm
BW3-034 G3/4" 3/2 way 13 mm
BW3-100 G1" 3/2 way 18 mm
MANUAL-BW-EN v1.3
Value
Neutral liquids and gases.
-10..110°C
-10..50°C
0..10 bar
IP54
230V AC
Volta ge
Internal Relay
On/ Off
P (W) Open
5W 16s
5W 16s
5W 16s
5W 16s
3W 6s
3W 6s
3W 6s
3W 6s
3
Kv (m /h) AxBxC (mm) LxH (mm)
8.6 28x28 50x113
21 30x35 58x115
26 35x45 73x120
6.4 28x28x28 54x113
10 30x35x40 70x115
16 35x45x45 83x120
www.jpfluidcontrol.com
T (Nm)
4
4
4
4
2.5
2.5
2.5
2.5
BW-SERIES
ELECTRICAL BALL VALVES
ELECTRICAL BALL VALVES
1
