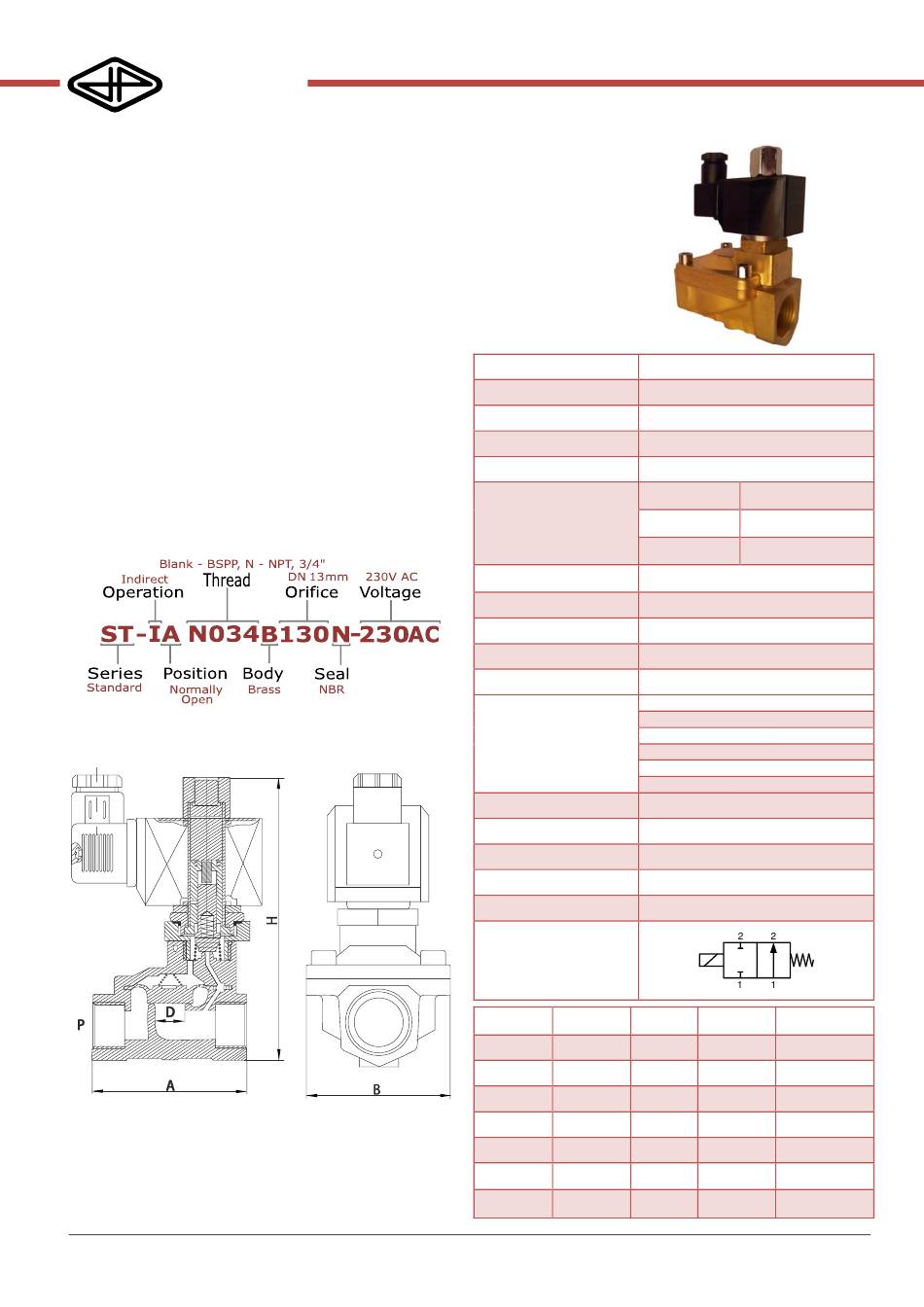

JP Fluid Control ST-IB Series Quick Start Manual

JP FLUID CONTROL
2/2-WAY
INDIRECT OPERATED
NORMALLY OPEN
Solenoid Valve ST-IB-series
The ST-IB is an indirect operated 2/2-way solenoid valve.
The starting position is normally open (closes with
electrical voltage). The solenoid valves have an orifice of
13 to 50 mm and can be used with a minimum
differential pressure of 0.5 bars. The body material can
be brass or stainless steel with a NBR, EPDM or FKM seal.
The ST-IB solenoid valves are compatible with all coils
from the CS2-series.
Example of product code
Dimensions
MANUAL-ST-IB-EN v1.2
Series
Function
Operation
Position
Body
Seal &
Media Temperature
Thread
Ambient Temperature
Min. Pressure Difference
Max. Pressure
Coil series
Voltage
Insulation Class
Power
Duty Cycle
Connector
Protection Class
Circuit Diagram
Pipe (P)
3/8" (038)
1/2" (012)
3/4" (034)
1" (100)
1-1/4" (114)
1-1/2" (112)
2" (200)
www.jpfluidcontrol.com
Standard (ST)
2/2 way
Indirect operated (I)
Normally open (B)
Brass (B) / SS 316 (S)
NBR (N)
EPDM (E)
FKM (F)
BSPP / NPT (N)
Max 50°C
0.5 bar
13 bar (3/8"..1"), 8 bar (>1")
CS2
380V AC 50Hz (380AC)
230V AC 50/60Hz (230AC)
120V AC 50Hz (120AC)
24V AC 50/60Hz (024AC)
24V DC (024DC)
12V DC (012DC)
Class F
22 W / 33VA
100% ED
EN 175301-803 (formerly DIN 43650A)
IP 65 (with cable plug)
Orifice (D) Kv (m3/h) AxBxH (mm)
13mm (130) 3.84 66x48x124
13mm (130) 3.84 66x48x124
20mm (200) 6.48 75x58x130
25mm (250) 10.24 96x70x143
40mm (400) 18.77 131x96x158
40mm (400) 25.59 131x96x158
50mm (500) 40.94 165x120x179
1
ST-IB SERIES
SOLENOID VALVES
-10..80°C
-30..120°C
-10..120°C
Response time
(Open/Close)
50/180 ms
50/180 ms
70/220 ms
80/250 ms
160/360 ms
160/360 ms
190/540 ms
