Marantz DV-3100 Specifications

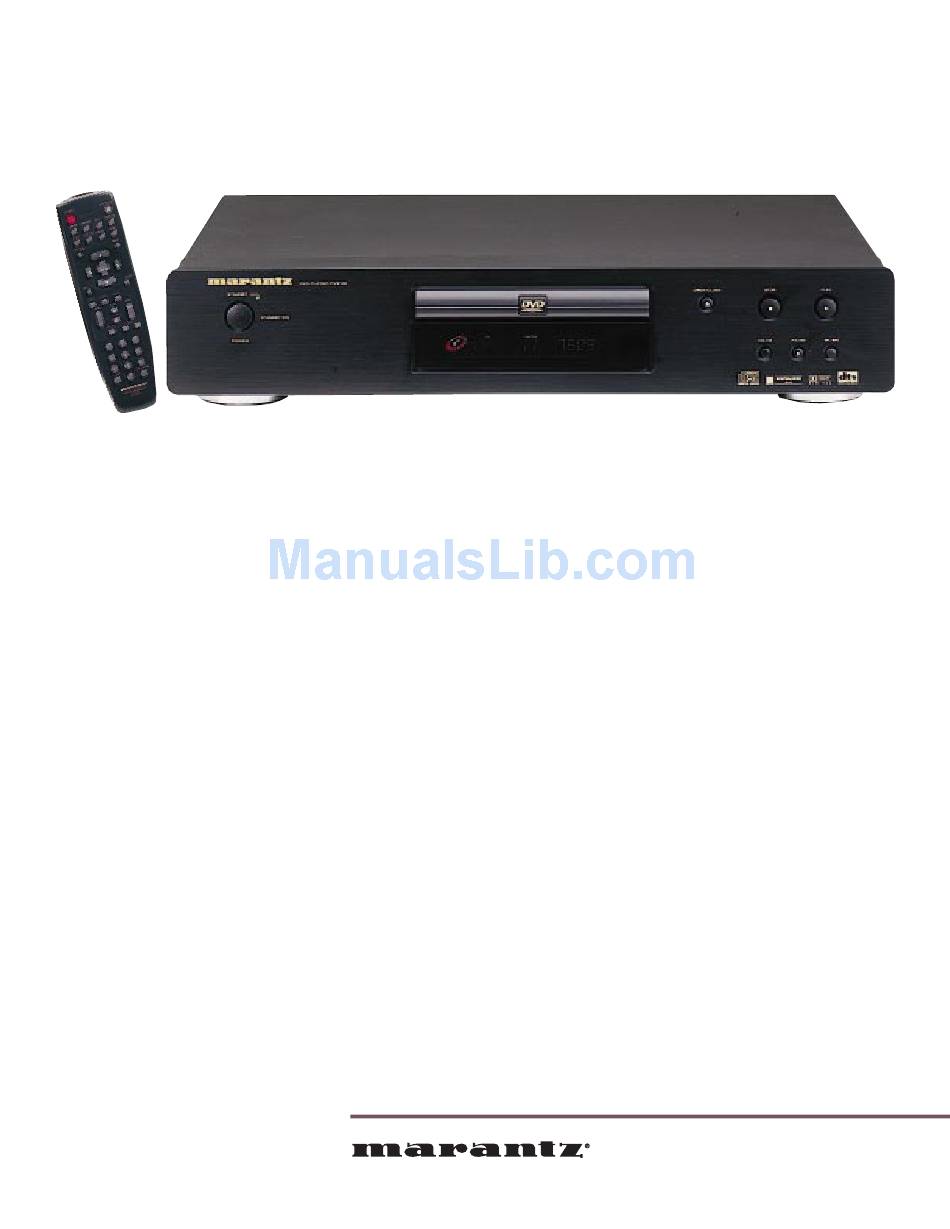

The Marantz DV-3100 DVD Video Player:
An Exceptional Performer.
Audio Section
Laser pickup Semiconductor laser
Wavelength
Frequency response (digital audio) 4 Hz to 20 kHz
96 kHz sampling 4 Hz to 44 kHz
Audio CD 4 Hz to 20 kHz
Signal to noise ratio (digital audio)
Dynamic range (digital audio)
Total harmonic distortion (digital audio)
Digital audio outputs: coaxial RCA connector x 1
0.5 V (p-p), 75 Ω
2.0 V (rms), 330 Ω,
Analog audio outputs:
RCA jack (L, R) x 1
Video Section
Signal system Standard NTSC
Composite video
1.0 V (p-p), 75 Ω, negative sync
output
RCA jack x 1
S-Video output
(Y) 1.0 V (p-p), 75 Ω, negative sync
(C) 0.286 V (p-p), 75 Ω
Mini DIN 4-pin x 1
Component video output
(Y) 1.0 V (p-p), 75 Ω, negative sync
) 0.7 V (p-p), 75 Ω
(C )/(C
B R
RCA jack x 3
General
Power requirements: 120 V, 60 Hz, 16 W
Dimensions H x W x D: 3 1 / " x 17" x 8
2
88mm x 430mm x 215mm
Weight: 7.1 lbs. 3.2 kg
"DOLBY", "DOLBY DIGITAL", and the double-D symbol are
trademarks of Dolby Laboratories Licensing Corporation.
DTS is a registered trademark of DTS Technology.
Spatializer ® 3-D Stereo, Spatializer N-2-2 ™
trademarks of Desper Products, Inc.
All specifications are subject to change without notice.
© 2000 Marantz America, Inc. 06/00
The Marantz DV-3100 DVD player is engineered for exceptional picture and sound quality.
It features 10-bit, 27MHz video processing for unsurpassed clarity and color purity, along
650 nm
with 96KHz/24-bit audio capability, plus built-in Dolby Digital
superior audio performance and surround sound realism.
>100 dB
DV-3100 Features:
>95 dB
<.008%
10-bit video D/A conversion with 27MHz filtering provides extremely high-resolution
video quality and color purity with an improved video signal-to-noise ratio.
Dolby Digital
discrete 5.1-channel digital surround sound formats.
96 kHz/24-bit D/A converter deliver state-of-the-art sonic performance.
Premium optics and drive mechanism assure reliable, glitch-free playback.
Component video outputs provide maximum quality video playback. S-Video and
composite video are also included, as well as a coaxial digital audio output.
Spatializer N-2-2
and stereo audio using advanced DSP circuitry to create a realistic, cinema-like surround
sound environment using the TV's two built-in speakers or a two-channel stereo system.
15 /3 "
Video CD and CD-R playback capability in addition to DVD Video and CD playback
2
make the DV-3100 the ideal all-in-one program source for a totally integrated home
entertainment system.
Remote control operation and graphical user interface (GUI) on-screen menu
provides easy and intuitive operation.
D-BUS remote connection allows linkage to other Marantz components for integrated
system operation.
Full complement of viewing options and interactive capabilities offered by the
DVD-Video format, including multiple camera angles and aspect ratios, a choice of
language tracks and subtitles, parental control and more.
Wide selection of convenience functions such as a variety of slow motion, forward and
reverse scan speeds, 16-power zoom, chapter and track search functions and much more.
are
Marantz America, Inc.
Phone 630-307-3100 • Fax 630-307-2687 • www.marantz.com
® and DTS ® surround sound compatibility, for accurate playback of both
™ 3D virtual surround sound technology processes movie soundtracks
440 Medinah Road
® and DTS ® compatibility for
Roselle, IL 60172
