Position the left and right speakers in the respective housing obtained in the polystyrene cheek
•
padding. If necessary, rotate the speakers slightly in their housing. If necessary, secure them using
the adhesive strips supplied as standard equipment.
Reassemble the padding.
•
3.4.

Adjusting the microphone

The B602 system makes it possible to adjust the position of the microphone in order to facilitate its
positioning in the different helmet models. Proceed as follows:

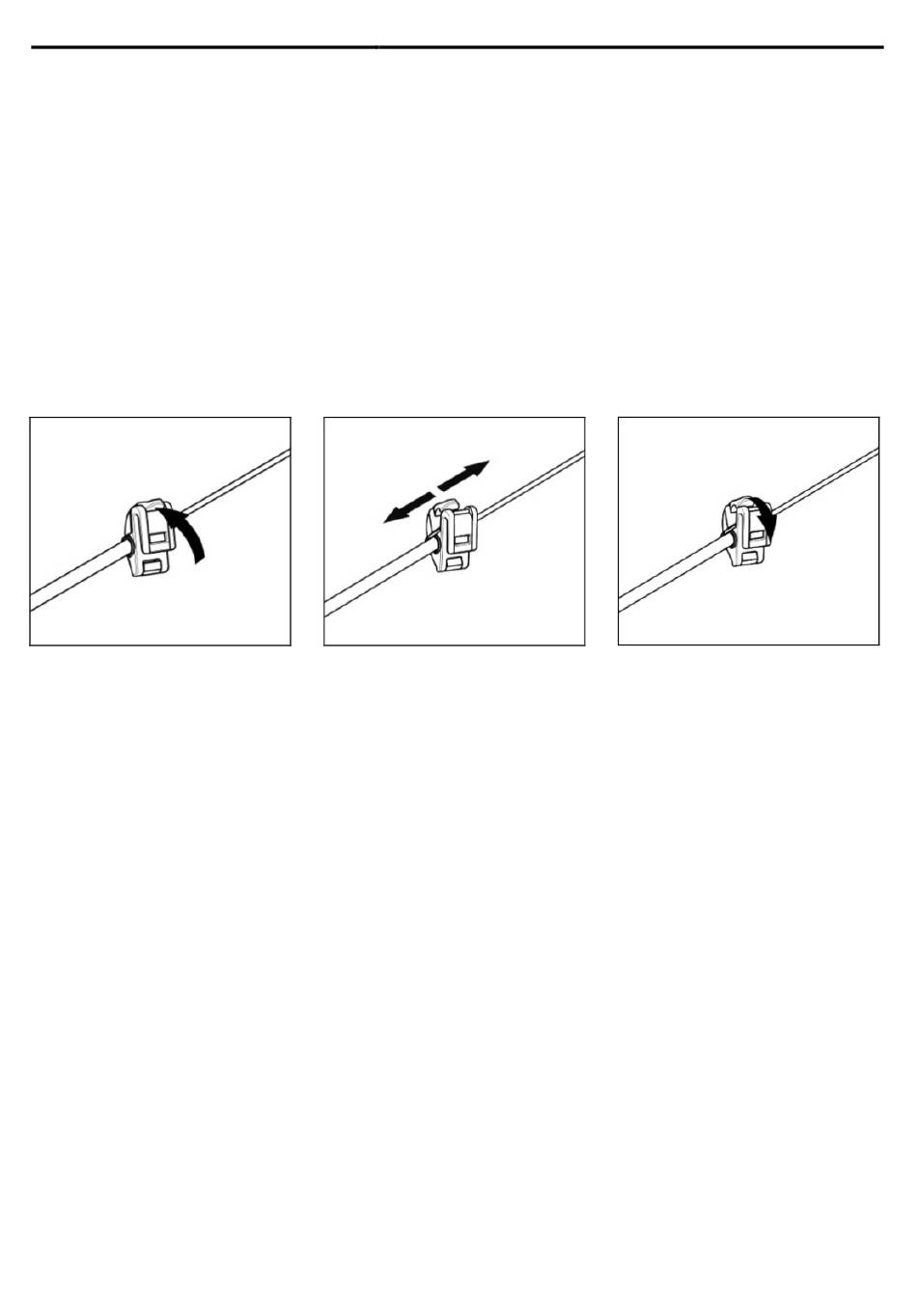

Open the clip positioned on the microphone boom, operating as indicated in Fig. 27. If necessary,
•
use the flat head screwdriver provided to help open the clip.
Adjust the microphone (Fig. 28).
•
Close the clip (Fig. 29).
•
Fig. 27
To ensure good voice transmission quality, it is recommended to position the microphone sponge at
the side of your mouth.
16
Fig. 28 Fig. 29
