- Page 1 Remote Controller Manual MODEL Remote Controller manual Page 1~19 To obtain the best performance and ensure years of trouble free use, please read this instruction manual completely. EE0024394E rev.0-08/2022 - 1 -...
-

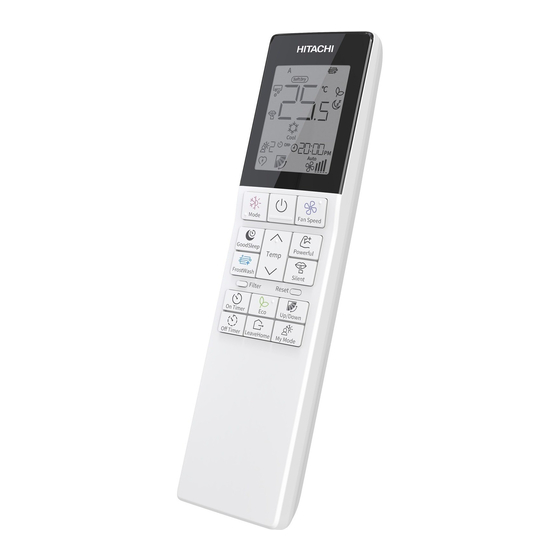

Page 2: Names And Functions Of Remote Controller
Names and Functions of Remote Controller This controls the operation function and timer setting of the room air conditioner. The range of control is about 7 meters. lf indoor lighting is controlled electronically, the range of control may be shorter. Signal Transmission Off Mode Sign Invalid Operation Sign... -
Page 3: Various Functions
Various Functions Auto Restart Control If there is a power failure, operation will be automatically restarted when the power is resumed with previous operation mode and airflow direction. (As the operation is not stopped by remote controller.) If you intend not to continue the operation when the power is resumed, switch off the power supply. When you switch on the circuit breaker, the operation will be automatically restarted with previous operation mode and airflow direction. -
Page 4: Heat Mode
Heat Mode Use the device for heating when the outdoor temperature is under 24°C. When it is too warm (over 24°C), the heating function may not work in order to protect the device. In order to keep reliability of the device, please use this device above –15°C of the outdoor temperature. -
Page 5: Dry Mode
Dry Mode Use the device for dehumidifying when the room temperature is over 16°C. When it is under 15°C, the dehumidifying function will not work. Press the Mode Selector Button so that the display indicates (Dry). The fan speed is set at Auto. Press (Fan Speed) button to select Silent, Low or Auto fan speed. -
Page 6: Cool Mode
Cool Mode Use the device for cooling when the outdoor temperature is -10 to 46°C. If humidity is very high (over 80%) indoors, some dew may form on the air outlet grille of the indoor unit. Press the Mode Selector Button so that the display indicates (Cool). - Page 7 User can use the device simply as an air circulator. Press the M selector button so that the display indicates Press the button. Fan Speed (High) (Super High) START Press the button. Fan operation starts with a beep. STOP Press the button again to stop operation. Timer and Timer are available.
-
Page 8: Powerful Operation
Powerful Operation • By pressing (Powerful) button during Auto, Heat, Dry, Cool, or Fan operation, the air conditioner Powerful performs at maximum power. • During Powerful operation, cooler or warmer air will be blown out from indoor unit for Cooling or Heating operation respectively. - Page 9 The dust and dirt adhering to indoor heat exchanger which is the cause of the smell. They are washed away by freezing and thawing of the heat exchanger. FrostWash function can work when the outdoor temperature is 1℃ to 43℃ and Indoor humidity is 30% to 70%. The process of FrostWash is pressed Operation is started...
-
Page 10: Eco Operation
Eco Operation Energy saving operation by changing set temperature and by limiting the maximum power consumption value. By pressing the (Eco) button during Heating, Automatic, dehumidifying or Cooling operation, the air conditioner performs the “Eco” operation. Press (Eco) button during operation. •... -
Page 11: Silent Mode
Silent Mode (Silent) button during Auto, Heat, Dry, Cool or Fan operation, the fan speed changes (Silent) (On/Off) (Silent) (Fan Speed) Silent Silent Powerful Silent Silent Silent Silent (Silent) By Pressing Mode button or LeaveHome button or My mode button , Silent operation is cancelled. - 11 -... - Page 12 GoodSleep Timer Setting (GoodSleep) button during Auto, Heat, Dry, Cool or Fan operation, the unit shifts the Set Temp. -0.5Hr. -1.0Hr. -2.0Hr-3.0Hr..-10.0Hr. -11.0Hr -12.0Hr. GoodSleep Timer Cancel GoodSleep Timer GoodSleep Timer (GoodSleep) Lamp (On/Off) (GoodSleep) Lamp The indoor fan speed of air conditioner does not change even when fan speed button is pressed. ●...
-
Page 13: Adjusting The Airflow Direction
Adjusting the Airflow Direction Adjust the airfl ow upward and downward. According to operation, the horizontal air defl ector is automatically set to the proper angle suitable for each operation.The defl ector can be swings up and down and also set to the desired angle using the “... - Page 14 My Mode(Programming) Use this mode for personalized comfortable settings. The My Mode can be set by using the remote controller. Up to 3 programs can be set. Programming of My Mode Default Setting of My Mode My Mode Mode Temperature Fan Speed ON Timer / Silent OFF Timer...
- Page 15 My Mode(Programming) Programming of My Mode On Timer Setting Selection Press (On Timer) button in order to select On Timer setting during “ ” blinks. “ ” blinks on the LCD. Setting time will change according to the below sequence when you press the button.
- Page 16 My Mode(Start or Stop of My Mode Operation) Start of My Mode Operation Start of My Mode Operation Press (My Mode) button at room air conditioner operation. Room air conditioner starts with My Mode 1 registered to remote controller. Press (My Mode) button again in order to change to the operation of My mode 2, My mode 3.
- Page 17 Operation Mode Lock The remote controller can be set to fix the Heat Mode (including Fan Mode), Cool Mode and Dry Mode (including Fan Mode) operations. Method to lock Heat Mode (including Fan Mode) operation. Press (Mode) and buttons simultaneously for about 3 seconds when the remote controller is OFF.
- Page 18 How to Reset Filter Sign on the indoor unit Filter Sign on the indoor unit will show with “ ” lamp by blinking with 1 second on and 4 seconds off. Because cleaning of Air filter has not been done for a long time. Clean the Air filter.
- Page 19 Power Safe (Max Current Switching ) • This function limit the maximum current during the operation of Air conditioner so it will help to avoid breaker trips if maximum current reaches to breaker limit. it limits the electrical current during operation.
Need help?
Do you have a question about the RC-AGU1EA0G and is the answer not in the manual?
Questions and answers

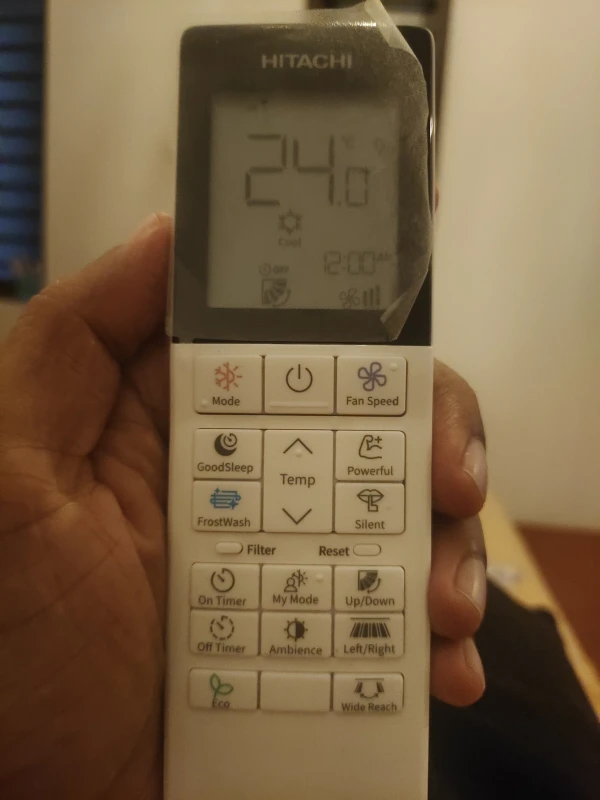

How Time set-up in remote
To set up the time on the Hitachi RC-AGU1EA0G remote:
1. Wait for the “ ” icon to blink on the LCD.
2. Press the ON Timer or OFF Timer button during the blinking.
3. Each press will change the timer in this sequence: Set Temp. → -0.5 Hr → -1.0 Hr → -2.0 Hr → … → -12.0 Hr → Cancel.
4. After selecting the desired time, press the ON/OFF button while the “ ” icon blinks to save the setting.
If no button is pressed for 10 seconds during this process, the remote will exit timer setting mode without saving.
