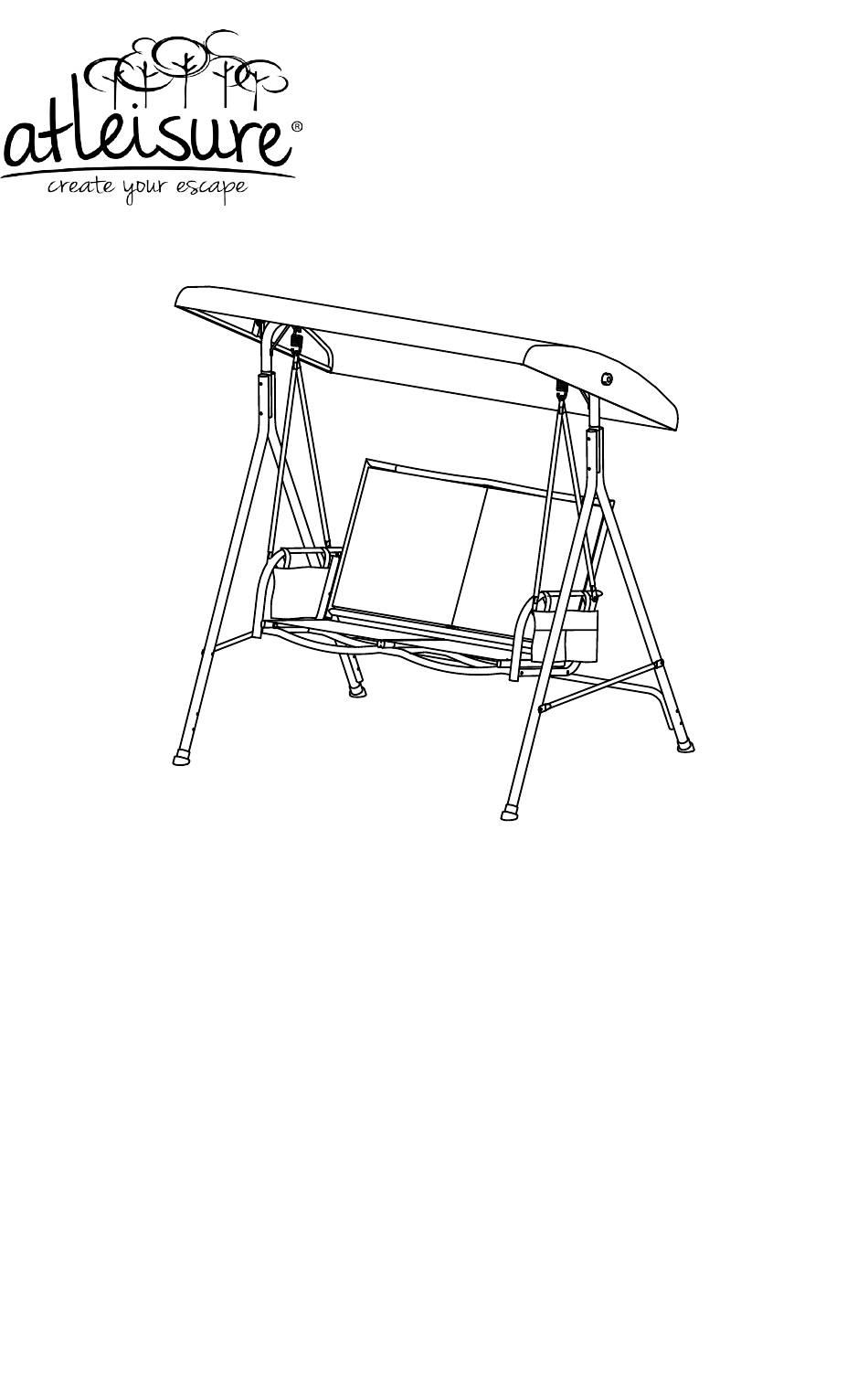

Two Person Swing
Assembly & Care Instructions
SKU: 9022334
Model: SL-SW5217
IMPORTANT : RETAIN FOR FUTURE REFERENCE
READ CAREFULLY
For assistance with assembly, parts, or customer service, please contact:
Toll Free: 1-855-880-7205 (English is offered)
8am - 5pm, Monday through Friday, Eastern Standard Time
DO NOT RETURN TO STORE
For outdoor domestic use only. Not for commercial use.
Designed in USA
Made in China
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atleisure SL-SW5217
Summary of Contents for Atleisure SL-SW5217
- Page 1 Two Person Swing Assembly & Care Instructions SKU: 9022334 Model: SL-SW5217 IMPORTANT : RETAIN FOR FUTURE REFERENCE READ CAREFULLY For assistance with assembly, parts, or customer service, please contact: Toll Free: 1-855-880-7205 (English is offered) 8am - 5pm, Monday through Friday, Eastern Standard Time DO NOT RETURN TO STORE For outdoor domestic use only.
- Page 2 Contents Package Contents Assembly and Use Care and Maintenance Warning and Cautions Warranty Replacement Parts Package Contents Please lay out all parts prior to assembly to make sure all parts are present. Needs two adults to assemble. Hardware Contents: Part Description Quantity M6 x 86mm Bolt...
-
Page 3: Package Contents
Package Contents Package Contents: Part Description Quantity Top Connect Bar Front Leg Back Leg Front and Back Leg Connect Bar Back Leg Connect Bar Armrest Seat Back Hang Bar Spring Hook Canopy Screw Knobs Magazine Bag... - Page 4 Assembly Step 1: Align the hole of the front (B) and back (C) leg with the top connect bar (A). Then use the hex key (W) to screw the head of M6 x 86mm bolt (M). Use the wrench (X) to screw the M6 screw nut (S) over the metal washer (T) on the other side.
- Page 5 Assembly Step 3: Use the hex key (W) to screw the head of M6 x 68 mm bolt (N) through the hole of back leg connect bar (E) and back (C) legs. Use the wrench (X) to screw the M6 screw nut (S) over the metal washer (T) on the other side. Do not over tighten.
- Page 6 Assembly Step 5: Use the hex key (W) to screw the M6 x 45 mm bolt (Q) through metal washer (T) and the plastic washer (V) to connect the back (H) and the armrest (F). The plastic washer (V) between the back (H) and the armrest (F). Do not over tighten.
- Page 7 Assembly Step 7: Hang the seat (G) and back (H) on the top connect bar (A) through the spring hook (J). Step 8: Cover the canopy (K) on the top connect bar (A) by screwing the screw knobs (L). Hang the magazine bags (Y) on the armrest (F). Place the swing on flat ground.
-
Page 8: Care And Maintenance
If you are within your warranty you must have your receipt and pictures of your in- formation to send to ATLeisure at customerservice@atleisure.com, or send by mail to 1040 Boulevard SE Ste. B, Atlanta GA 30312. This warranty gives you specific... -
Page 9: Replacement Parts
For replacement parts, call our customer service department at: 1-855-880-7205, 8am - 5pm EST, Monday - Friday. Part Description Quantity Re-Order Number Top Connect Bar SL-SW5217-TCB Front Leg SL-SW5217-FL SL-SW5217-BL Back Leg SL-SW5217-FBLCB Front and Back Leg Connect Bar SL-SW5217-BLCB...
