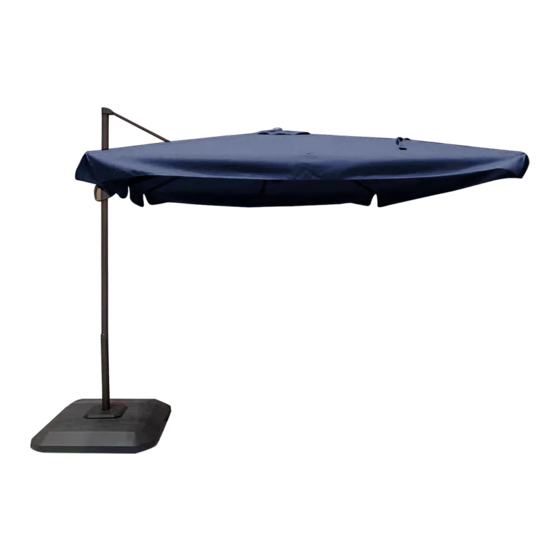

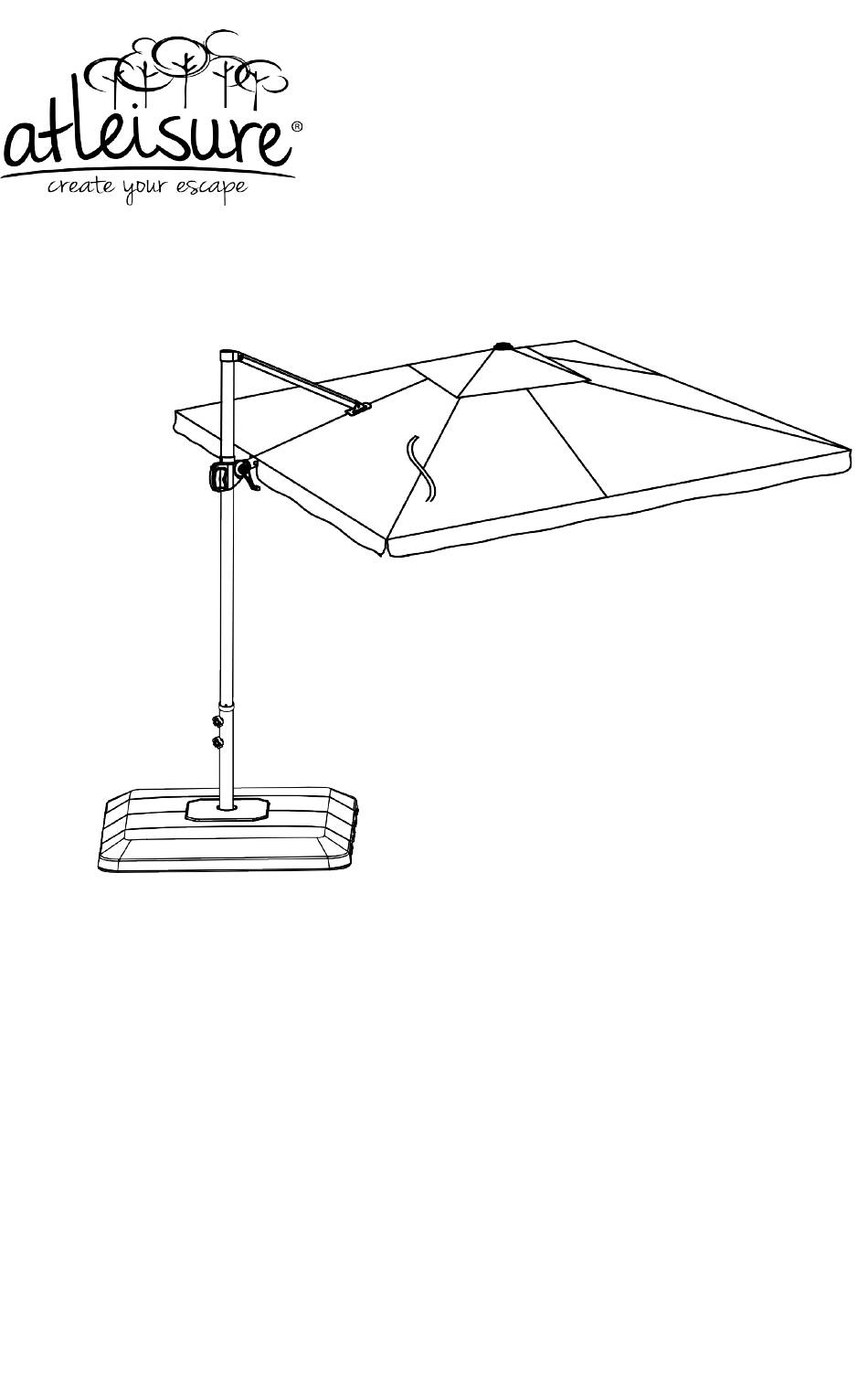

8.5 ft Square Offset Umbrella
Assembly & Care Instructions
Item Number: M70629
Model: UMB-M70629
IMPORTANT: RETAIN FOR FUTURE REFERENCE
READ CAREFULLY
For assistance with assembly, parts, or customer service, please contact:
Toll Free: 1-855-880-7205
8am - 5pm, Monday through Friday, Eastern Standard Time
DO NOT RETURN TO STORE
For outdoor domestic use only. Not for commercial use.
Designed in USA
Made in China
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atleisure UMB-M70629
Summary of Contents for Atleisure UMB-M70629
- Page 1 8.5 ft Square Offset Umbrella Assembly & Care Instructions Item Number: M70629 Model: UMB-M70629 IMPORTANT: RETAIN FOR FUTURE REFERENCE READ CAREFULLY For assistance with assembly, parts, or customer service, please contact: Toll Free: 1-855-880-7205 8am - 5pm, Monday through Friday, Eastern Standard Time DO NOT RETURN TO STORE For outdoor domestic use only.
- Page 2 Contents Package Contents Assembly and Use 3 - 6 Care and Maintenance Warning and Cautions Warranty Replacement Parts Package Contents Compare carton contents with package contents list. If any part is missing or damaged, call customer service TOLL FREE at 1-855-880-7205 for replacement parts or further assistance.
- Page 3 Assembly and Use Tools Required for Assembly: Open end wrench or adjustable wrench (not included). Step 1: Place Upper Cross Leg (D) over Lower Cross Leg (C) to form “X” shape. Step 3: Attach Pole Holder (F) to cross legs (C&D) using screws (GG) and washers (HH) found in blister pack.
- Page 4 Assembly and Use (cont ’d) Step 3: Lay base components (A&B) on top of cross legs to form rectangular base. Step 4: Unscrew caps from each section of umbrella base and fill with sand no less than 33 lbs. Reposition caps and tighten into place.
- Page 5 Assembly and Use (cont’d) Holder Pole Ring Control Knobs Step 5: Pull holder pole ring from top of Holder Pole (F) and unscrew both control knobs. Slide Pole Support Cup (L) onto Holder Pole (F). Replace control knobs and holder pole ring. WARNING: Fully assemble umbrella base prior to inserting frame to avoid umbrella tipping.
- Page 6 Assembly and Use (cont’d) Lever clamp Glide handle Crank handle Step 7: To open umbrella, pull out Lever Clamp to release Glide Handle. Grasp and slide Glide Handle up along Umbrella Pole. Turn Crank Handle to right until Lower Center Hub reaches end of Support Pole (shown above) and canopy has proper tension.
- Page 7 If you are within your warranty you must have your receipt and pictures of your information to send to ATLeisure at customerservice@atleisure.com, or send by mail to 1040 Boulevard SE Ste. B, Atlanta GA 30312. This warranty gives you specific legal...
- Page 8 UMB-M70629-HDP-RING CONTROL KNOBS UMB-M70629-CTRL-KNOB HARDWARE KIT FOR M70629 UMB-M70629-HDW-KIT This Atleisure product is covered by U.S. Patent No. 8,104,492 ATLeisure, LLC 1040 Boulevard SE, Suite B Atlanta, Georgia 30312, USA Customer Service Toll Free 1-855-880-7205 8am - 5pm Eastern Time, Monday through Friday...
