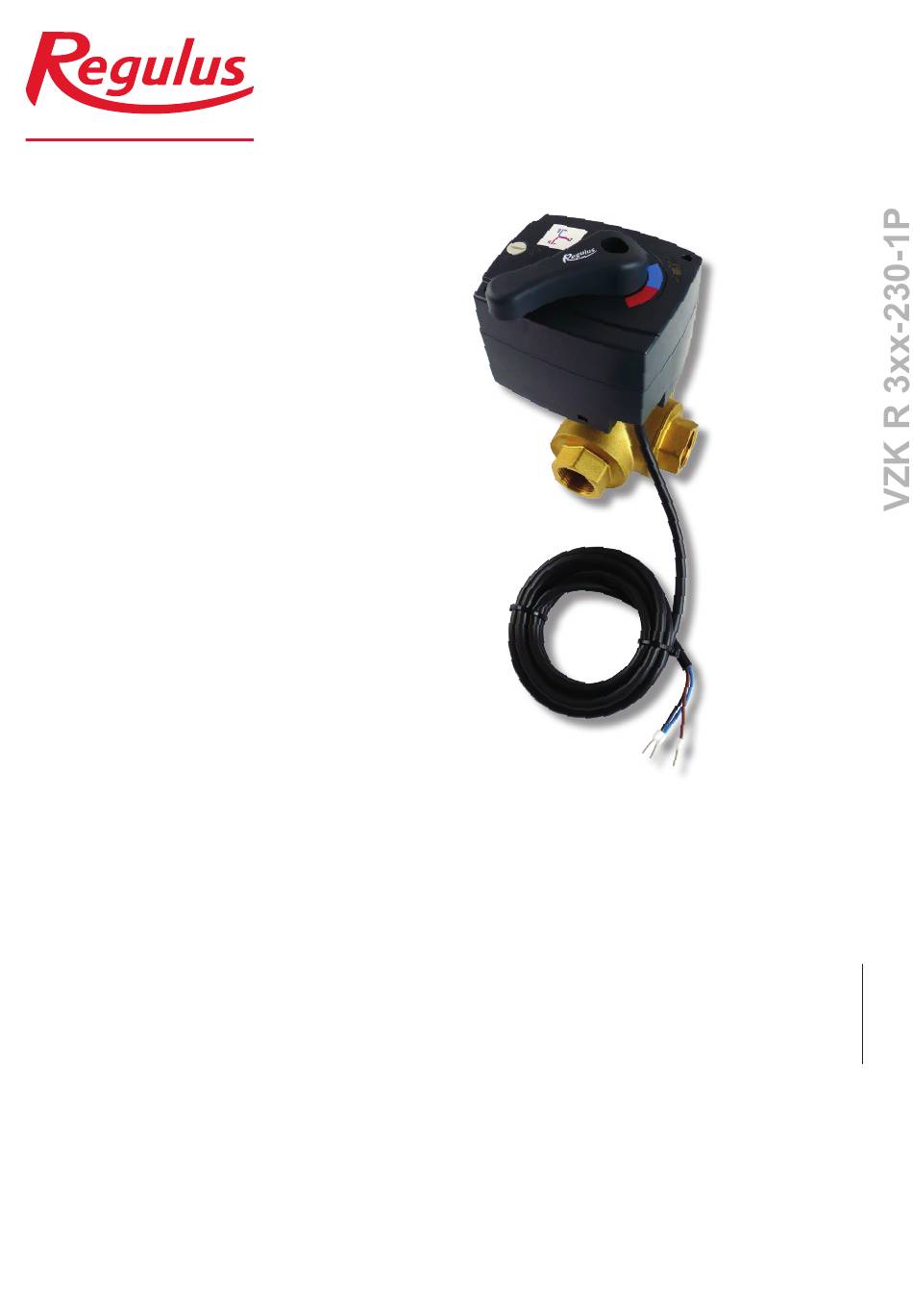

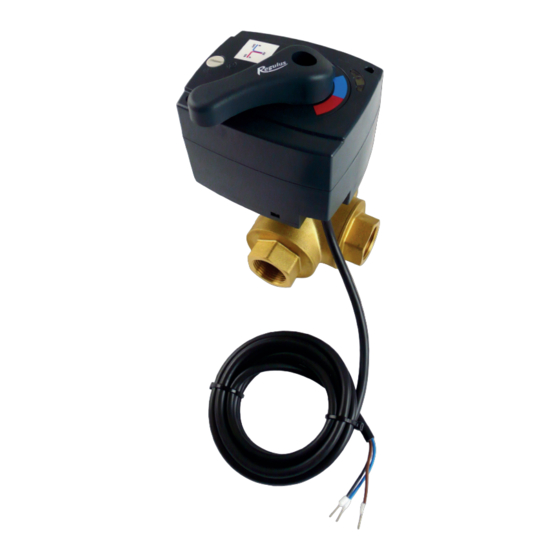

- Page 1 Installation and Operation Manual THREE-WAY ZONE BALL VALVE VZK R 3xx-230-1P VZK R 3xx-230-1P...
-
Page 2: Table Of Contents
4.1. Valve Adjustment Options ................7 5. T-bore Valves ........................ 9 5.1. Valve Adjustment Options ................9 6. Changing the direction of rotation of the actuator ............13 7. Permissible and prohibited positions ................14 THREE-WAY ZONE BALL VALVE - www.regulus.eu │... -
Page 3: Introduction
3 x G 1" F 28,3 14,3 VZK R 325-230-1P T 5/4F 18676 3 x G 5/4" F 28,3 14,3 VZK R 325-230-1P-15 T 6/4M 19006 3 x G 6/4 "M 28,3 14,3 THREE-WAY ZONE BALL VALVE - www.regulus.eu │... - Page 4 Power cable cross section 3 x 0.5 mm Power cable length Power cable length Valve housing brass CW617N Valve spindle brass CW617N Valve ball chrome-plated brass O-rings EPDM, FPM Seal PTFE Power cable THREE-WAY ZONE BALL VALVE - www.regulus.eu │...
-
Page 5: Actuator
The actuator is controlled by the switching contact of the controller or thermostat (single-pole connection) 230V, 50Hz. Permanent power supply is applied to terminals 1 and 2. The switched live is connected to terminal 3. Wiring diagram blue black brown controller or thermostat THREE-WAY ZONE BALL VALVE - www.regulus.eu │... -
Page 6: Actuator Control
If required, the actuator can be removed and fitted in a different position (in quarter turns) - see the fig. The label shall be then carefully removed and rotated to the correct position according to the ports arrangement. Default position of the valve actuator THREE-WAY ZONE BALL VALVE - www.regulus.eu │... -
Page 7: L-Bore Valves
Direction of rotation Default position when switched live Position after turning Label (OFF) voltage is applied to (ON) on the actuator terminal No. 3 Blue indicator Red indicator THREE-WAY ZONE BALL VALVE - www.regulus.eu │... - Page 8 Remove the label from the actuator and replace it with the enclosed label showing the corresponding setting. Direction of rotation Default position when switched live Position after turning Label (OFF) voltage is applied to (ON) on the actuator terminal No. 3 Red indicator Blue indicator THREE-WAY ZONE BALL VALVE - www.regulus.eu │...
-
Page 9: T-Bore Valves
Direction of rotation Default position when switched live Position after turning Label (OFF) voltage is applied to (ON) on the actuator terminal No. 3 Blue indicator Red indicator THREE-WAY ZONE BALL VALVE - www.regulus.eu │... - Page 10 Remove the label from the actuator and replace it with the enclosed label showing the corresponding setting. Direction of rotation when switched live Position after turning Label Default position (OFF) voltage is applied (ON) on the actuator to terminal No. 3 Red indicator Blue indicator THREE-WAY ZONE BALL VALVE - www.regulus.eu │...
- Page 11 Remove the label from the actuator and replace it with the enclosed label showing the corresponding setting. Direction of rotation Default position when switched live Position after turning Label (OFF) voltage is applied to (ON) on the actuator terminal No. 3 Red indicator Blue indicator THREE-WAY ZONE BALL VALVE - www.regulus.eu │...
- Page 12 Remove the label from the actuator and replace it with the enclosed label showing the corresponding setting. Direction of rotation Default position when switched live Position after turning Label (OFF) voltage is applied to (ON) on the actuator terminal No. 3 Blue indicator Red indicator THREE-WAY ZONE BALL VALVE - www.regulus.eu │...
-
Page 13: Changing The Direction Of Rotation Of The Actuator
The actuator turns clockwise. horizontal position will change the direction of rotation. The actuator now turns anti-clockwise. Having placed the jumper to the desired position, re-install the actuator cover and switch the actuator to automatic mode. THREE-WAY ZONE BALL VALVE - www.regulus.eu │... -
Page 14: Permissible And Prohibited Positions
WARNING - Important Installation of the valve in a position where the actuator is located below the valve is prohibited. v1.1-11/2021 ©2021 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
