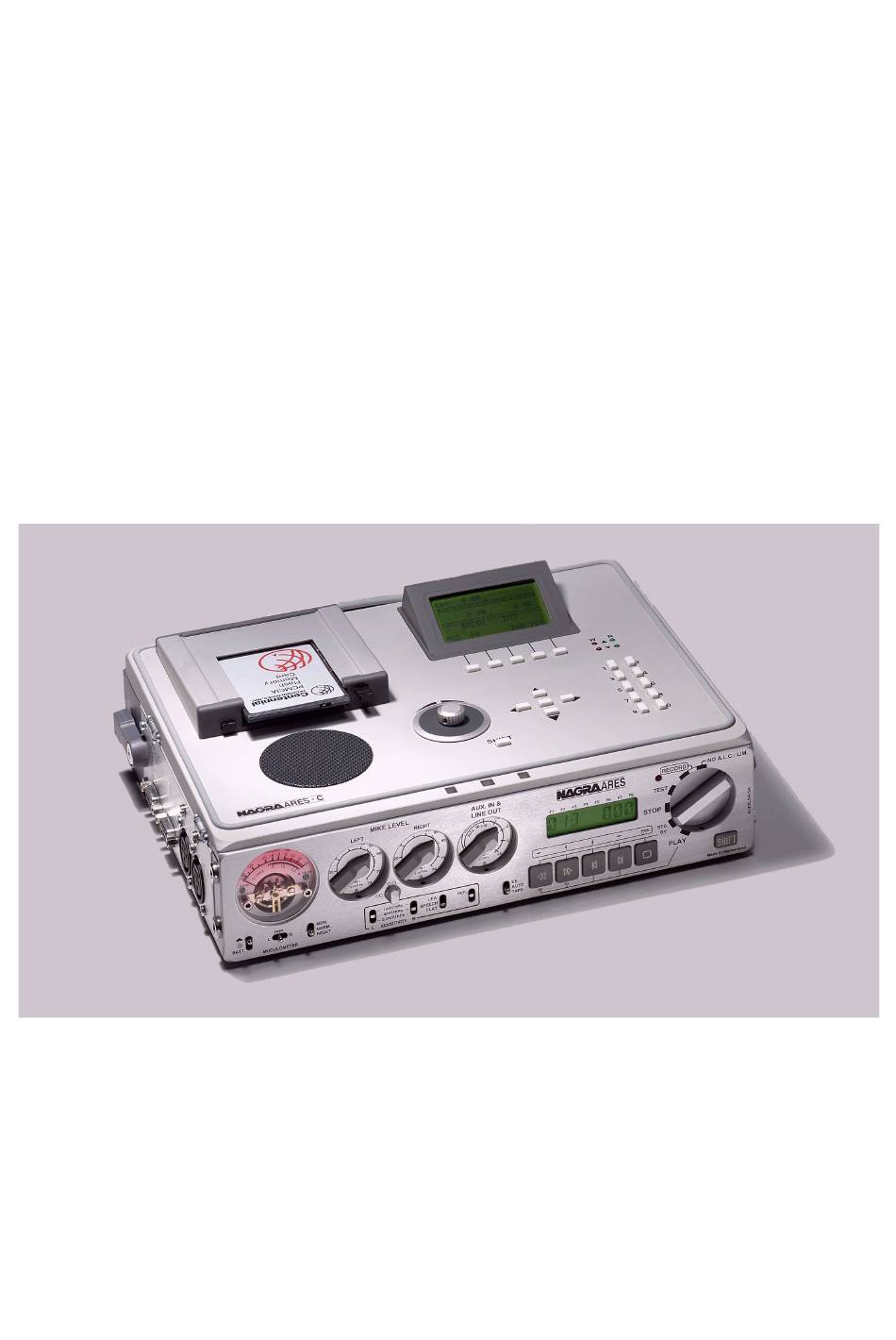

OPERATING INSTRUCTIONS
AND
REFERENCE MANUAL
NAGRA ARES-C
(PN 2019 001 150)

Advertisement

Table of Contents
loading

Related Manuals for Nagra ARES-C

Summary of Contents for Nagra ARES-C

  • Page 1 OPERATING INSTRUCTIONS REFERENCE MANUAL NAGRA ARES-C (PN 2019 001 150)
  • Page 2 GUARANTEE NAGRA/KUDELSKI certifies that this instrument was thoroughly inspected and tested prior to leaving our factory and is in accordance with the data given in the accompanying test sheet. We guarantee the products of our own manufacture against any defect arising from faulty manufacture for a period of one year from the date of delivery.
  • Page 3 ABOUT THIS MANUAL This instruction manual is broken down into several sections. The first section is a general explanation of the switches, buttons, connectors of the machine along with the "getting started" section which covers topics such as formatting of the cards and powering of the machine. The second section covers the actual "in the field"...

  • Page 4: Table Of Contents

    CHAPTER I GENERAL DESCRIPTION Page INTRODUCTION EXPLANATION OF THE PARTS OF THE MACHINE 2.1 Left side panel 2.1.1 Extension connector 2.1.2 RS422 connector 2.1.3 Microphone input connectors 2.1.4 Microphone powering selectors 2.2 Front panel 2.2.1 Light / battery switch 2.2.2 Meter 2.2.3 Meter selection switch 2.2.4 Mem.

  • Page 5: Introduction

    1.0 INTRODUCTION The ARES-C is a 16 bit solid state audio recorder / player using PCMCIA cards as its storage medium. The information is stored using the MPEG layer II, G722, µ-law, A-law compression standards and can be optionally equipped with an on-board ISDN circuit allowing direct connection to the ISDN network. Also...

  • Page 6: Explanation Of The Parts Of The Machine

    External NRS left channel IN NOTE: If an external noise reduction system is connected to the ARES-C then two switches inside the machine need to be moved. If they are moved then the inputs will not be operational if the external NRS is not connected.

  • Page 7: Rs422 Connector

    2.1.2 RS 422 CONNECTOR This is a standard 9-pin RS 422 symmetrical serial communication port for connection to the external world. This connector is for the moment only be used by the manufactory production for test purposes. NOTE: A "lap-top" style PC is not always fitted with an RS 422 port. A converter RS 232 / RS 422 must in this case be fitted to the cable to allow the communication.

  • Page 8: Front Panel

    When the cloud position is selected then the display on the editor of the ARES-C will be illuminated for 15 seconds only. If the editor is switched on then it will remain illuminated. This feature allows the operator to have a quick look at the amount of space left in the PCMCIA cards.

  • Page 9: Meter Selection Switch

    2.2.3 METER SELECTION SWITCH The meter selection switch allows the operator to decide which channel, Left, Right or MAX, will be displayed on the meter. The MAX position is for stereo operation of the machine and the meter will indicate the highest level obtained between the two channels and the leds will indicate which channel this corresponds to.

  • Page 10: Lfa / Speech / Flat Selector

    2.2.8 LFA / SPEECH / FLAT This is the filter selection switch. The filters available are the same as those on other NAGRA models and act on both the microphone and line inputs. The corresponding curves for the filters are...

  • Page 11: Reference Switch

    As long as the switch is held in this position, a sine wave of approximately 500 Hz -6 dB, will be present at the outputs, if the ARES-C is in the test position ( the EE / AUTO / TAPE switch must be in the TAPE position). When the reference switch is held in the upper position during record, the EE / AUTO / TAPE switch may stay in the AUTO position.

  • Page 12: Shift Key (Front Panel)

    The shift key must be pressed (and kept pressed) in order to move through the menus on the LCD display on the front panel of the ARES-C. When it is pressed the five grey transport keys operate using their shifted ARROW features. As soon as the SHIFT key is released then it will act as an ESC and the display will return to the main display screen chosen.

  • Page 13: Lcd Display (Front Panel)

    2.2.14 LCD DISPLAY (front panel) This is a 14 segment 8 digit back lit LCD display, permitting alpha-numeric indication of a large quantity of different information and allowing internal settings of the machine to be made in the MENU mode. In normal operation it will indicate the current take number and time from the beginning of it.

  • Page 14: Right Side Panel

    2.3 RIGHT SIDE PANEL PHONES LINE OUT AES OUT (1.55 V) LEFT RIGHT ISDN LINE OUT mono 2.3.1 BANANA OUTPUT CONNECTORS This is the telephone output connection. It is a mono output fitted with a transformer with an output impedance of 600 Ω from 300 Hz to 5 kHz, and is used for connection to a standard switched telephone line.

  • Page 15: Headphone Output Jack

    2.3.6 ISDN CONNECTOR If the ARES-C is fitted with the internal ISDN option then this is the connector where the RJ 45 plug is placed to connect the machine to the ISDN network. Operation of the ISDN is covered in detail in CHAPTER IV of this manual as well as in the appendice.

  • Page 16: Top Deck

    This is where the removable PCMCIA cards are installed. This slot can hold two cards, the upper position being SLOT A and the lower being SLOT B. The ARES-C will work with cards up to 2 Gbytes which conform to the FLASH type SERIES 2 or SERIES 2+, Strata flash cards up to 192 MB and ATA FLASH cards .

  • Page 17: Shift Key (Deck Plate)

    2.4.4 SHIFT KEY (deck plate) The SHIFT key has several different operations depending on the mode of the editor. SHIFT+ Move directly to the top of the directory listing, when the directory of the card is displayed. SHIFT + Move directly to the bottom of the directory listing, when the directory of the card is displayed.

  • Page 18: Function Keys (Deck Plate)

    2.4.8 NUMERICAL KEYS Generally the numerical keys are used for the introduction of user information such as telephone numbers when using the ARES-C with the ISDN option. They may also be used in the directory mode to move the cursor directly to a given take number. All take numbers must be entered in 3 digits (ie take 3 must be entered as 003).

  • Page 19: Preparation Of The Machine

    3.1 FORMATTING A PCMCIA CARD In order to switch on the internal editor of the ARES-C set the main function selector to the EDIT / STD BY position and then press the "ON" key F4. If F4 is pressed then the display will now show the software version installed in the machine and four of the five function keys will have a mode written above them.

  • Page 20: Powering Of The Machine

    10°C with respect to the ambient temperature. If the ARES-C is switched on while the batteries are being charged, then the power will be supplied by the cells and not by the external supply. When the cells become flat the charger will switch on but in this case will only charge the cells slowly as most of the power being supplied to them will be used by the machine.

  • Page 21: Write Protection Of The Pcmcia Cards

    5.0 WRITE PROTECTION OF THE PCMCIA CARD A PCMCIA card has a similar protection as on a floppy disk against accidental recording, in the form of a miniature switch located in the rear edge of the card. This miniature switch can only be moved with a pointed object.
  • Page 22 CONTENTS QUICK START Page DELIVERED WITH OPTIONS FIRST NEEDS “POWER” 3.1 If no additional power options are available 3.2 If the NiCd power pack and AC power supply are included SWITCHING ON FOR THE FIRST TIME SETTING TIME AND DATE INSTALLING THE FLASH CARD AND FORMATTING MAKING THE FIRST RECORDING IN MONO USING ONE MIC.
  • Page 23 2.2.9 Reference switch 2.2.10 Aux. IN and line OUT potentiometer 2.2.11 EE / tape / auto selector 2.2.12 Main function selector 2.2.13 Shift key (front panel) 2.2.14 LCD display (front panel) 2.3 Right side panel 2.3.1 Banana output connectors 2.3.2 Line output connectors 2.3.3 AES output connector 2.3.4 Headphone output jack 2.3.5 Headphone level control...
  • Page 24 3.6.1 ALC mode 3.6.2 ALC speed 3.6.3 ALC threshold 3.7 Auxiliary input and line output potentiometer 3.8 Modulometer assign. menu 3.9 Input configuration menu 3.9.1 Auxiliary input menu 3.9.2 Mono configuration menu 3.10 Beep menu 3.11 Telephone level 3.12 Jog wheel menu 3.13 Templates 3.13.1 Recall 3.13.2 Store...
  • Page 25 10.0 THE COPY FUNCTION 11.0 EDITOR ABBREVIATIONS 12.0 ERROR MESSAGES 12.1 Deck plate display 12.2 Front panel display 12.3 Beep Messages 12.4 Flags F1 to F8 13.0 TITLING 13.1 Horizontal directory scrolling 13.2 Vertical directory scrolling 13.3 Introducing a title CHAPTER IV TRANSMISSION OUTPUTS 1.1 Analog outputs...
  • Page 26 2.2.1 No record at all 2.2.2 Microphone input 2.2.3 Aux line input 2.3 Playback 2.3.1 No playback at all 2.4 Monitoring 2.4.1 No audio in headphones in playback 2.4.2 No loudspeaker output 2.5 Metering 2.5.1 Microphone connected, machine in Test / Record mode 2.5.2 In playback 2.6 Error codes 2.6.1 On front display...
  • Page 27 1.8.2 Bidirectional microphones 1.8.3 Switchable microphones 1.8.4 Choice between condenser or dynamic 1.9 Maximum gain of the recording chain or sensitivity of the microphone inputs 1.10 Microphone sensitivity selection on the ARES-C 1.11 Microphone powering METERING 2.1 Modulometer 2.2 Vu meter LEVELS 3.1 Input sensitivity...

  • Page 28: Quick Start

    QUICK START Page DELIVERED WITH OPTIONS FIRST NEEDS “POWER” 3.1 If no additional power options are available 3.2 If the NiCd power pack and AC power supply are included SWITCHING ON FOR THE FIRST TIME SETTING TIME AND DATE INSTALLING THE FLASH CARD AND FORMATTING MAKING THE FIRST RECORDING IN MONO USING ONE MIC.
  • Page 29 1.0 DELIVERED WITH. One ARES-C with a battery box for four “D” type cells One connector Jack ” right-angle for headphones One user manual One carrying strap 2.0 OPTIONS NOT INCLUDED WITH THE ARES-C. -7019335000 ISDN option -7019340000 Time code option...
  • Page 30 3.1 IF NO ADDITIONAL POWER OPTIONS ARE AVAILABLE. If “YES” jump to paragraph 3.2 ♦ Remove the battery box ( type 4 “D” cells) from the ARES-C by lifting upwards the two grey side levers at the back left and right side.

  • Page 31: Setting Time And Date

    3.2 IF THE NiCd POWER PACK AND THE AC SUPPLY ARE AVAILABLE. ♦ Remove the battery box (4 type “D” cells) from the ARES-C by lifting the two grey side levers at the back left and right side upwards. ♦...
  • Page 32 MEMORY LOST has occurred due to missing AC power for several hours. To set the DATE & TIME, follow the next steps: 0.05 10 TAKES *** ARES-C *** VERSION X.XX (C) NAGRA KUDELSKI 8 TAKES *** ARES-C *** F1: CARD FORMATTING VERSION X.XX...

  • Page 33: Installing The Flash Card And Formatting

    If it is, then “WP” will be displayed. ♦ Set the main selector on the front of the ARES-C to the “STD.BY” position. ♦ The display on the deck of the ARES-C will indicate “A: UNFORMATTED CARD”. A: UNFORMATED CARD...

  • Page 34: Microphone Connection Configuration

    7.0 MAKING THE FIRST RECORDING IN MONO USING A MICROPHONE 7.1 Microphone connection configuration. ♦ Connect a microphone to the left MIC. Input of the ARES-C. Depending on the type of microphone used, select with the switch above the MIC. connector the corresponding power supply (“dyn.”, “T12”, “Ph+12”...
  • Page 35 ALC OFF selection ♦ . The same kind of research through the menu needs to be performed until “ALC” appears: MODULOM. ASSIGN INPUT CONFIG. BEEP LOUDSPEAKER UNTIL POT. ASSIGN ALC MODE ALC SPEED ALC MODE ALC MODE Modulometer AUTO selection ♦...
  • Page 36 ♦ Compression selection G.772. 12 different kinds of compression can be selected depending on the requirements of the studio or the optional ISDN connection. In this example to simplify matters, we will select the G.722 compression mode which records at a bit rate of 64kb/s with a bandwidth of 7kHz and which can only be used in a mono mode.

  • Page 37: Microphone Level Adjustment In Test Mode

    ”BATT” a single time and the front display will scroll through them. The other possibility is to switch off the ARES-C (using the MAIN selector) and switching it back on. This also shows that all settings just made stay in memory even if the machine was switched off.

  • Page 38: Headphone Control

    Put the main selector in the “RECORD” position. Automatically the red led on the front display as well as the red led on the top deck will light. This indicates that the ARES-C is in the record mode.

  • Page 39: Starting The Next Recording After Playback

    8.0 PLAYING BACK FROM THE FRONT PANEL. ♦ During an interview, it happens sometimes that a short playback of the last part of a take or a previous take is asked. This can be done without being obliged to manipulate the editor. ♦...

  • Page 40: Jog Wheel

    CHAPTER II - IN THE FIELD OPERATION Page TREE DECK DISPLAY TREE FRONT DISPLAY MENU MODE ON FRONT KEYBOARD 2.1 Display menu 2.2 Loudspeaker menu 2.3 A.L.C. menu 2.4 Battery menu 2.5 Line pot menu 2.6 Modulometer menu 2.7 Input menu 2.8 Beep menu 2.9 Templates MENU MODE ON DECK...
  • Page 41 G722 1.55 VOLT MPEG 64/48 JOGWHEEL NORMAL MPEG 64/24 REVERSE MPEG 64/32 ARES-C SOFT VERSION V3.30 MPEG 64/16 DECK DISPLAY DSP VERSION 2 MPEG 128/48 MPEG 128/24 The ISDN menu only appears if the ISDN option is installed MPEG 128/32 MPEG 128/16 MPEG 128/48 ST.
  • Page 42 Line Pot. POT. OUT - 18 dB POT. IN AlcSPeed NORMAL POTSHIFT FAST Modulom. LEV. AUTO SLOW LEV. IN ARES-C SOFT VERSION V3.30 FRONT DISPLAY LEV. OUT InPut AuX. AUX. OFF AUX. ON MonoConf. IN MIX BeeP IN LEFT IN RIGHT...

  • Page 43: Display Menu

    2.0 MENU MODE FRONT DISPLAY The ARES-C incorporates a system of menus similar to the "tree" of directories found on the hard disk of a PC. The functions, accessible through the menu mode, are operations that are not performed too frequently during normal operation of the machine.

  • Page 44: Menu

    NORMAL which corresponds to a hold of 2 seconds and then a fall off of the ALC during approx 6 seconds. (This is the same as the time for the NAGRA IS). The slow position corresponds to a hold of 2 seconds followed by a fall off during approx.

  • Page 45: Battery Menu

    LEV. IN The modulometer of the ARES-C can be set to the AUTO position in which case it will behave as on a standard NAGRA. That is to say in TEST and REC it will indicate the input signal and in playback it will indicate the OUTPUT signal.

  • Page 46: Input Menu

    IN LEFT IN RIGHT The input menu allows the configuration of the various inputs of the ARES-C. The MONO CONFIGURATION position allows the two microphone inputs to be mixed together or only one or other to be connected. This selection was necessary to cancel the noise generated by an unloaded mic pre-amplifier especially when the ALC is not activated when only one microphone is being used.

  • Page 47: Menu Mode On Deck

    One of these menus appears when the NAGRA ARES-C (having two PCMCIA cards in the slot) is switched Due to memory lost, the right menu appears instead of the left menu. This happens only if the NAGRA ARES-C was disconnected from the battery box for several hours. Push the “ESC” button to return to the left display.

  • Page 48: Isdn Menu

    3.3 ISDN MENU This menu only appears if the ISDN option is installed. By using the “UP” & “DOWN” arrow buttons, scroll to find the ISDN menu. Once “ISDN” is in front of the marker, push the “RIGHT” arrow TEMPLATE button once.

  • Page 49: Compression Menu

    3.4 COMPRESSION MENU COMPRESSION ISDN G711-A COMPRESSION G711-U LOUDSPEAKER G722 MPEG 64/48 MPEG 64/48 19 different COMPRESSION G711-A compression algorithms can be selected. G711-U MPEG 128/24 MPEG 192/48 The first two are used for G722 MPEG 128/32 MPEG 192/32 “speech” transmission MPEG 64/48 MPEG 128/16...

  • Page 50: Alc Menu

    NORMAL which corresponds to a hold of 2 seconds and then a fall off of the ALC during approx 6 seconds. (This is the same as the time for the NAGRA IS). The slow position corresponds to a hold of 2 seconds followed by a fall off during approx. 30 seconds and the FAST position corresponds to a hold of about 0.4 seconds and a fall off during 1.2 seconds.

  • Page 51: Alc Threshold

    The ALC is not active if the AUX input is selected. 3.6.3 ALC THRESHOLD ALC THRESHOLD -18 DB ALC SPEED -24 DB ALC THRESHOLD -30 DB -36 DB -36 DB The ALC TRESHOLD gives 4 threshold level possibilities. To “EXECUTE” a selection push Full ALC menu ALC MODE ALC SPEED...

  • Page 52: Modulometer Assign Menu

    The AUXILIARY position permits the third and fourth input, located on the left side of the NAGRA ARES-C, to be turned on. If it is turned on then it will be mixed with the signal coming from the left and right mic. pre-amplifiers.

  • Page 53: Beep Menu

    only one or other to be connected. This selection was necessary to cancel the noise generated by an unloaded mic pre-amplifier especially when the ALC is not activated when only one microphone is being used. To “EXECUTE” a INPUT CONFIG. AUX.

  • Page 54: Telephone Level

    3.11 TELEPHONE LEVEL TEL. LEVEL BEEP TEL. LEVEL 4.4 VOLT 1.55 VOLT JOG WHEEL 4.4 VOLT 4.4 VOLT To “EXECUTE” a selection push This menu selection permits to select the banana output level. 3.12 JOG WHEEL MENU JOG WHEEL BEEP NORMAL JOG WHEEL REVERSE...

  • Page 55: Store

    To disable the password, the machine must be switched off once. The next example shows an ARES-C tree with a maximum of menus locked. Only the “RECALL1” is accessible. This is important in the case if the machine has lost his memory (no batteries for a few hours).
  • Page 56 AUDIO RETURN MODULOM. ASSIGN SPEECH MODE SPID 6152360100 COMPRESSION INPUT CONFIG. AUX. INPUT MONO CONFIG. BEEP TEL. LEVEL JOGWHEEL ARES-C SOFT VERSION V3.30 DECK DISPLAY DSP VERSION 2 Only “RECALL 1” is accessible. ---------------------------------------------------------------------------------------------------------------------------------------------- Chapter II Issue: 19.02.01 Page 17...

  • Page 57: Headphone Monitoring

    64, 128 or 192 kbits per second. This is an important selection as it depends whether the ISDN output is to be used. The ARES-C can only operate on 1 "B" channel which requires the use of 64 kbits/sec. In order to use 128 kb/s two "B" channels on the ISDN network would be needed.
  • Page 58 FORMAT G.722 G.722 MPEG 64/48 Important : It is not possible to change the selected compression of the ARES-C while either the machine is in RECORD or while the internal editor is turned ON. ---------------------------------------------------------------------------------------------------------------------------------------------- Chapter II Issue: 19.02.01 Page 19...

  • Page 59: Directory Recording

    6.0 DIRECTORY RECORDING The ARES-C records a "DIRECTORY" automatically when the card is initially formatted. As recordings are made or edited the directory is automatically updated and is stored in the card. A directory of a card can contain up to 408 "takes" maximum. If the user tries to switch the machine to record and there are already 408 takes on the card then the red LED will not light and the recording will not take place.

  • Page 60: Making The Recording

    Frequency Attenuation), SPEECH and FLAT, the curves for these are all indicated in chapter I of this manual. Set the main function selector of the ARES-C to the TEST position. Set the EE / AUTO / TAPE selector to the AUTO position.

  • Page 61: Chapter Iii Editing

    CHAPTER III EDITING Page INTRODUCTION TURNING ON THE EDITOR MISCELLANEOUS SETTINGS CARD CHECKING REAL TIME CLOCK 5.0 bis VERSIONS DIRECTORIES PLAYING BACK A SELECTED TAKE DELETING TAKES OPERATION OF THE AUDIO EDITOR 9.1 Principles of editing 9,2 How the editor operates 9.3 Step by step editing 9.3.1 Example 1 9.3.2 Example 2...
  • Page 62 In order to switch on the internal editor of the ARES-C press the F4 "ON" key. The display will now show the software version installed in the machine. F4 immediately toggles to become the OFF key which is used to turn the editor OFF again.

  • Page 63: Miscellaneous Settings

    3.0 MISCELLANEOUS SETTINGS "MIS" MIS gives access to various features. Pressing F5 (MIS) the display will change to the following: F1: CARD FORMATTING F2: FORMAT REPAIRING F3: DATE & TIME F5: VERSIONS From this screen there are five choices. "FOR" (F1) is used to FORMAT a new PCMCIA card which is explained in detail in chapter 1 of this manual.

  • Page 64: Bis Versions

    5.0 REAL TIME CLOCK (R.T.C.) The RTC of the ARES-C is an internal clock with both time and date and will stay correct as long as there is sufficient power from the batteries. This value will be kept in memory for several minutes to allow changing flat batteries.

  • Page 65: Playing Back A Selected Take

    NOTE: The directory of the ARES-C can store up to 408 different "Takes". If the user tries to record take #409 it will be recorded on the second card if it is installed and providing there is sufficient space. If this is not the case then the machine will not switch into record.

  • Page 66: Operation Of The Audio Editor

    PLAY / STOP toggle switch for the selected tape (source or target). 9.1 PRINCIPLES OF EDITING When using the editor of the ARES-C there are two principle operations that can be performed. One is the editing together of various different sections of different takes that have previously been recorded, the other is the insertion of a selected section from one take into another take.

  • Page 67: Step By Step Editing

    USEFUL AUDIO TO BE KEPT This is not an actual display but is for this example. Turn on the editor of the ARES-C and from the directory screen press EDT to activate the editor. The screen would actually then be: PRESENT TAKE N°...
  • Page 68 either the headphones or the internal loudspeaker. Continue to turn the JOG wheel until the first useful piece of audio is located. Once the start of the useful audio is located press F2 (IN) which will mark this point as the IN point for the first edit (once pressed F2 will become the OUT point marker key).
  • Page 69 ORIGINAL RECORDING 0 :04 0 00 0 .0 0 1 3 /0 6/95 0 01 4 .2 5 1 3 /0 6/95 0 02 0 .0 0 1 3 /0 6/95 DURATION OF EDL EDL INDICATION 9.3.2 EXAMPLE 2 In this example let us assume that a complete take is to be selected and then a portion of audio from the following take is to be edited into the middle of the first take.

  • Page 70: Example

    and the screen will show: UNMODIFIED ORIGINAL PRESENT LOCATION INSERTED PART START AND END OF ORIGINAL SECTION It is now possible to skip to the beginning of the lower "tape" using the left arrow key, then to either PLAY the entire section using F5 (PLY) or to move slowly along the section using the JOG wheel. Once happy with the results, press F4 (END) and the display will once again ask if this is to be saved as Take N°...

  • Page 71: Edit Indication

    10.0 THE COPY FUNCTION The copy function of the editor of the ARES-C is used to copy takes from one card to another. The copy function is activated by pressing the "SHIFT" key #4 on the top deck plate while in the directory display.

  • Page 72: Editor Abbreviations

    Play Recall a telephone number stored in the memory. Record is used to record information coming to the ARES-C from either the analog telephone line or the ISDN input. Real Time Clock gives access to the setting of both time and date of the internal real time clock.

  • Page 73: Error Messages

    Turn on the editor and use the CHK (Card Check) function described below. NOTE: If at any time when using the ARES-C the message SAVE ERROR appears on the display when trying to write information to the card, check that the WRITE protect switch on the end of the card has not been placed in the protected position.

  • Page 74: Beep Messages

    NOTE: After a SET LOST message the machines internal settings will resort to the factory default settings and this will include the Real Time Clock, which should be reset. LOW BAT. Will be displayed when the internal batteries become too low. Rec.

  • Page 75: Titling

    13.0 TITLING Set the ARES-C main front selector to “EDIT / STD-BY” mode and press the F1 key “DIR”. 13.1 HORIZONTAL DIRECTORY SCROLLING Pressing the right or left arrow key allows scrolling the directory information horizontally. Take Take Take Take...
  • Page 76 0:04 0:04 <NO TITLE> <NO TITLE> SHIFT <NO TITLE> <NO TITLE> <NO TITLE> A little square starts blinking at the position of the first character. 0:04 <NO TITLE> <NO TITLE> Turning the jog-wheel or pressing the up or down arrow keys scrolls through: A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 1 2 3 4 5 6 7 8 9 0 ! # $ % &...

  • Page 77: Chapter Iv Transmission

    CHAPTER IV TRANSMISSION Page OUTPUTS 1.1 Analog outputs 1.2 AES output 1.3 Telephone output ISDN SENDING INFORMATION TO THE OUTSIDE WORLD 3.1 Transmission to the analog outputs 3.2 Transmission down an analog telephone line 3.3 Transmission / connection to an isdn network 3.3.1 ISDN mixing, DSP II 3.3.2 ISDN bit-rate conversion, DSP II 3.3.3 ISDN compression conversion, DSP II...

  • Page 78: Analog Outputs

    3.1 kHz with the Public Switched Telephone Network). It allows data transmission at 64 kbits/sec. There are a wide range of applications that it can be used for, in the case of the ARES-C it permits high quality audio, text or even graphics files to be sent between the ARES-C and the base station (not presently possible). A standard ISDN connection that can be found in the field (at a sports hall or conference centre for example) will generally be a 2B+D connection.

  • Page 79: Transmission To The Analog Outputs

    3.0 SENDING INFORMATION FROM THE ARES-C TO THE OUTSIDE WORLD Once the recordings have been made and in turn edited on the ARES-C it is possible to send these files from either of the PCMCIA cards to the outside world. In order to do this, turn on the internal editor and on the first screen that appears press F2 "TRM"...

  • Page 80: Transmission Down An Analog Telephone Line

    If F3 “UP” is pressed (if MPEG mono 64kb/s is selected), the ARES-C becomes ready to receive in the MPEG mode and to transmit in the G.711 or G.722 mode. If only F1 or F2 would be pressed, the ARES-C will be in a status for transmitting MPEG and receiving G.711 or G.722.
  • Page 81 G.711 or a G.722 algorithm and to receive a high quality sound in the MPEG algorithm. If F3 “UPLOADING” is not pressed, the ARES-C is set to emit in a high quality MPEG algorithm and to receive in a G.711 or a G.722 algorithm (see ISDN menu in chapter II).

  • Page 82: Isdn Mixing, Dsp

    The * DTMF tone is generated using the “SHIFT key together with the “1” key. The # DTMF tone is generated using the “SHIFT key together with the “2” key. If the message *STAND BY appears (note the *), this means that a data communication has been selected (eg G722).

  • Page 83: Spid / Usa Applications

    4.0 STORING / RECALLING INTERNAL TELEPHONE NUMBERS The ARES-C has the possibility of memorising up to 10 regularly used telephone numbers. The numbers can be stored in the following manner: Proceed as above as if a number were to be dialled manually, however instead of pressing F1 CALL to dial the number press F5 "STO"...

  • Page 84: Compression Table

    6.0 COMPRESSION TABLE Compression Bitrate Sampling Approx. Compression frequency bandwidth converter level / channel A-law 64kb/s 8kHz 3.5kHz 16 bit µ-law 64kb/s 8kHz 3.5kHz 16 bit G.722 64kb/s 16kHz 7.5kHz 16 bit MPEG mono 64kb/s 16kHz 7.5kHz 16 bit MPEG mono 64kb/s 24kHz 10.5kHz...

  • Page 85: Compression To Be Selected For Best Quality

    It’s up to the codec side to decide for the highest common compression that can be selected. Not all codecs on the market are able to recover for a single 64 kb/s channel the possibilities of the ARES-C. ---------------------------------------------------------------------------------------------------------------------------------------------- Chapter IV Issue: 02.12.98...

  • Page 86: Codecs Compatibility

    MPEGIII ATTENTION: THE ARES-C with a DSP type I, IN MPEG COMMUNICATION CAN ONLY EMIT OR RECEIVE MPEG IN ONE DIRECTION, THE OTHER DIRECTION IS A-LAW. THE ARES-C with a DSP type II, IN MPEG COMMUNICATION CAN EMIT OR RECEIVE MPEG IN BOTH DIRECTIONS and can also be set for MPEG-G.722 or MPEG-G.711 A-law.

  • Page 87: Maintenance

    CHAPTER V PROBLEM SOLVING Page 1.0 MAINTENANCE 1.1 Cleaning the recorder 2.0 PROBLEM SOLVING 2.1 Power 2.1.1 Machine will not power ON 2.1.2Batteries go flat during record / editing 2.2 Record 2.2.1 No record at all 2.2.2 Microphone input 2.2.3 Aux. Line input 2.3 Playback 2.3.1 No playback at all 2.4 Monitoring...

  • Page 88: Batteries Go Flat During Record / Editing

    1.0 MAINTENANCE 1.1 Cleaning of the ARES-C As the ARES-C has no moving parts there is virtually no maintenance required. There are no mechanical alignments to be verified. Our only recommendation is periodic cleaning of the exterior of the machine. For this purpose we suggest a soft cloth and Isopropylic alcohol.

  • Page 89: Microphone Input

    2.3 PLAYBACK 2.3.1 No playback at all (green leds OFF) Check that the internal editor is OFF. (The ARES-C will not playback using the main function selector if the editor is turned ON) Check that the PCMCIA card(s) have at least one take on them that can be played back.

  • Page 90: Metering

    2.6.1 On front display Error 1 Time out during a status of the ARES-C. This can happen for example if the machine goes from “STOP” to “PLAY”. Mostly if Error 1 appears, the DSP is lost. Switching OFF and back ON the machine solves the problem.
  • Page 91 Display Cause =”BUSY” User busy =”NO ANSWER” No user responding =”NO ANSWER (ALERTED)” No answer from user (user alerted). =”CALL REFUSED” Call rejected Number changed Non-selected user clearing Destination out of order Invalid number format Facility rejected Response to status enquiry Normal, unspecified =”NO FREE CHANNEL”...

  • Page 92: Miscellaneous

    Display Cause Invalid call reference value Identified channel does not exist A suspended call exists, but call identity does not Call identity in use No call suspended Call with requested call identity has been cleared =”INCOMPATIBLE DEST.” Incompatible destination Invalid transit network selection Invalid message, unspecified Message type non-existent or not implemented Message not compatible with call state or message...
  • Page 93 DECLARATION DE CONFORMITE DECLARATION OF CONFORMITY FABRICANT: NAGRAVISION S.A. KUDELSKI GROUP, 1033 Cheseaux SUISSE MANUFACTURER: NAGRAVISION S.A. KUDELSKI GROUP, 1033 CHESEAUX, SWITZERLAND APPAREIL : ARES-C MODEL: ARES-C NORMES GENERIQUES APPLICABLES : APPLICABLE GENERIC NORMS: EN 50081-1 (92) pour les émissions For Emissions EN 50082-1 (92) pour l'immunité...
  • Page 94 1.8.2 Bidirectional microphones 1.8.3 Switchable microphones 1.8.4 Choice between condenser or dynamic 1.9 Maximum gain of the recording chain or sensitivity of the microphone inputs 1.10 Microphone sensitivity selection on the ARES-C 1.11 Microphone powering METERING 2.1 Modulometer 2.2 Vu meter LEVELS 3.1 Input sensitivity...

  • Page 95: Microphones

    1.0 MICROPHONES The ARES-C is fitted with internal switchable microphone pre-amplifiers. The microphone inputs are on XLR female connectors on the left-hand side of the recorder. Located above the input connectors are two four position switches (with a slotted head) which allow the powering selection for the different possible microphone types.

  • Page 96: High Sound Levels

    1.4 Use at High Sound Levels Ribbon microphones and bidirectional condenser microphones can be damaged by a large air displacement. To record an explosion, a moving coil microphone, or better still, an omnidirectional condenser microphone is recommended. A switchable microphone (uni-, bi- or omnidirectional) risks the same damage as an ordinary bidirectional microphone.

  • Page 97: Secondary Characteristics

    1.7 Secondary Characteristics Related to Directional Characteristics Omnidirectional microphones (pressure) are much less affected by the wind than bidirectional (velocity) or cardioid microphones (because of their velocity element). The light diaphragms of velocity microphones have a tendency to float in the wind. It has been shown that the velocity microphones are easily damaged by a sudden air displacement (explosion).

  • Page 98: Maximum Gain Of The Recording Chain Or Sensitivity Of The Microphone Inputs

    ARES-C it is the signal peak which saturates the A/D converter. The average value of the signal (as far as the listener is concerned) is of no importance to the A/D converter.

  • Page 99: Levels

    0 dB can be displayed on the input, the A/D will be saturated above 0 dB. The meter of the ARES-C can be selected to monitor either the input signal or the output signal and it is important to be sure that it is indicating the input during recording so that saturation of the A/D converter can be avoided.

  • Page 100: Input Sensitivity

    At 1 kHz, these decibels are the same as phons but as the ARES-C does not have such filters, it cannot be considered as a phon meter.With the sensitivity potentiometer adjusted for 70 dB, a sound of 70 dB captured by a normal microphone (0.2 mV/µbar into 200 Ω) and attacking a normal sensitivity preamplifier, produces a...
  • Page 101 The linear part B corresponds to the zone where the ALC is operating. It will be observed that an input signal variation of 35 dB is converted to an output signal variation of only 3 dB. The linear part A shows that for an input signal variation of 20 dB we also obtain a 20 dB variation at the output, from which can be deduced that the amplifier gain is constant in this zone.
  • Page 102 a noisy place and without interrupting the discussion both parties move to quieter surroundings. Thus, memory time must be limited by discharging the condenser and this is carried out by silence detector S which is activated when the absence of Vout signal lasts more than 2 seconds. Following a sudden -20 dB decrease of the useful signal, the recuperation curve would be as follows: The simple condenser memory described will, however, function quite differently depending on whether load constant is great or small.
  • Page 103 A very short signal at IN input quickly charges C2 and the output voltage immediately acts upon the variable gain amplifier. The same signal, integrated by R 1 Cl has no effect on Cl, but C2 will rapidly discharge through R2 into Cl. Since Cl = 10 x C2, the voltage at its terminals will be hardly affected. The whole operation takes a matter of milliseconds, but both the recording amplifier and the A/D have been protected against saturation.
  • Page 104 Each display icon on the front display of the machine corresponds to a threshold of 6 dB. The operating threshold of the ALC of the ARES-C can be set to one of four different levels. In the -18 dB position 3 icon squares will be alight permanently, in the -24 dB position 2 squares will be alight, in the -30 dB position 1 square will be alight and in the -36 dB position no squares will be alight.

  • Page 105: Appendice 2

    APPENDICE 2 Page ISDN GENERAL ISDN SYSTEMS COMPRESSION USED IN THE ISDN DOMAIN. COMMUNICATION MODES. 4.1 A-law full duplex 4.2 µ-law full duplex 4.3 A-law - µ-law full duplex 4.4 G.722 full duplex 4.5 MPEG - A-law full duplex 4.6 A-law - MPEG full duplex 4.7 MPEG - G.722 full duplex 4.8 G.722 - MPEG full duplex 4.9 MPEG - full duplex...
  • Page 106 ARES-C ISDN #3 then the first ISDN phone only would ring, if 732 1007 were dialled VIDEO PHONE #2 then the ARES-C #3 would answer. Not all ISDN items can be programmed for an “M.S.N. 2.0 ISDN SYSTEMS The format of the Euro ISDN standard is as described above. That is to say 2 x "B" channels of 64 kbits/sec and 1 x "D"...

  • Page 107: A-Law Full Duplex

    Hence the central exchange becomes transparent and the ISDN signal passes directly through it. In this case any of the compression modes of the ARES-C can be used as long as both machines are set to the same one before the transmission is made.

  • Page 108: Full Duplex

    On the front keyboard, select G.722 in the menu. Sync. Protocol selection: In this case, any sync. can be selected as long as the other ARES-C has selected the same sync. Even the protocol “NONE” can be used. 4.5 MPEG - A-LAW FULL DUPLEX.

  • Page 109: A-Law - Mpeg Full Duplex

    Push F1 “CALL” In this case, the reporter set will transmit in the MPEG mode and receive in the A-LAW mode. STUDIO SET Next steps: Put the ARES-C in EDIT/STD. BY position Switch on the editor on top Select F2 “TRM”...

  • Page 110: Appendice 3

    APPENDICE 3 Page FLASH CARDS COMPATIBILITY LINEAR AND STRATA FLASH CARDS COMPATIBILITY ATA AND COMPACT ATA --------------------------------------------------------------------------------------------------------------------------------------------- Appendice 3 Issue: 19.06.02 Page 1...
  • Page 111 1.0 FLASH CARDS COMPATIBILITY, LINEAR AND STRATA. TYPE CAPACITY MANUFACTOR TECHNO. IDENTIFICA. ARES-C ARES-P ARES ARES ARES RCX220 IMPORT LOAD PCMCIA INTEL Linear IMC020FLSA-15 PCMCIA Linear FLA2800C15 PCMCIA INTEL Linear IMC010FLSA-15 PCMCIA Linear FLA3200C15 PCMCIA Linear FLA2400C15 PCMCIA Linear FLA3200C15...
  • Page 112 All cards went into the record mode for at least 1 minute at 192kb/s 48kHz stereo at ambient temperature Nagra does not warranty the correct functionality of the machine if other cards than the yellow high lighted ATA cards are used...
