Makita AN942 Parts Breakdown

Makita AN942 Parts Breakdown

Framing nailer
Hide thumbs Also See for AN942:
1
2
3

Advertisement

Quick Links

Download this manual See also: Instruction Manual

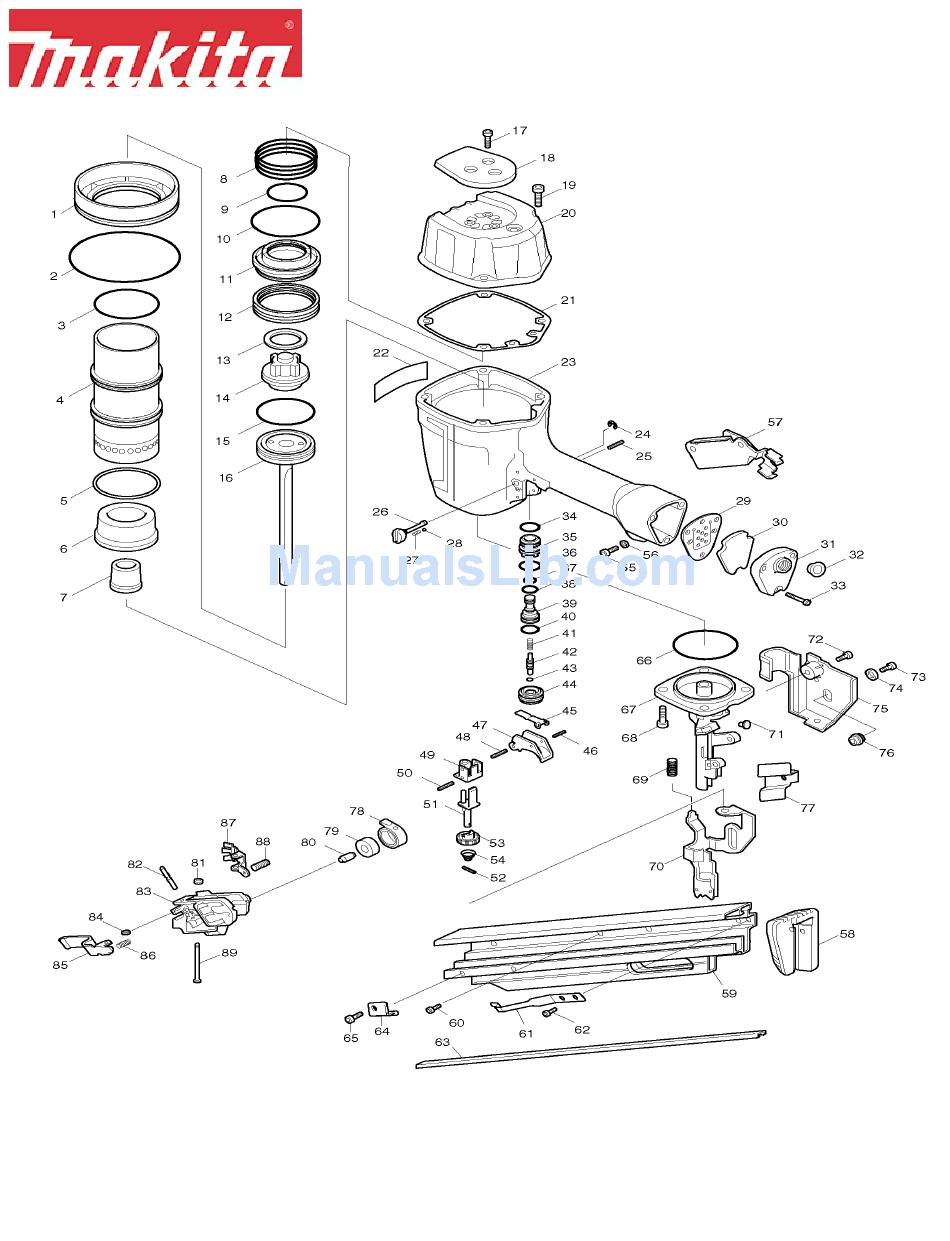

Parts Breakdown
AN942
Page 1 of 3
2/8/2008

Advertisement

loading

Related Manuals for Makita AN942

Summary of Contents for Makita AN942

  • Page 1 Parts Breakdown AN942 Page 1 of 3 2/8/2008...
  • Page 2 19 922342-1 H.S.H. BOLT M6X25, HR2511 20 317168-8 TOP CAP, AN922 21 162209-3 TOP CAP GASKET, AN922 22 851639-0 NAME PLATE, AN942 23 151731-5 HOUSING COMPLETE, AN922 24 961011-9 STOP RING E-4, 4301BV 25 951075-1 SPRING PIN 3-28, UM401DW 26 162208-5...
  • Page 3 Parts Breakdown 57 165252-1 JOINT, AN942 58 416897-1 MAGAZINE CAP, AN942 59 153958-3 MAGAZINE CPL., AN942 59 151729-2 MAGAZINE CPL.,AN942 60 266218-5 H.S.H. BOLT M6X10, AN922 61 344767-3 NAIL STOPPER, AN922 62 922217-4 H.S.H. BOLT M5X14, JS3200,T1 63 344768-1 MAGAZINE RAIL, AN942...
