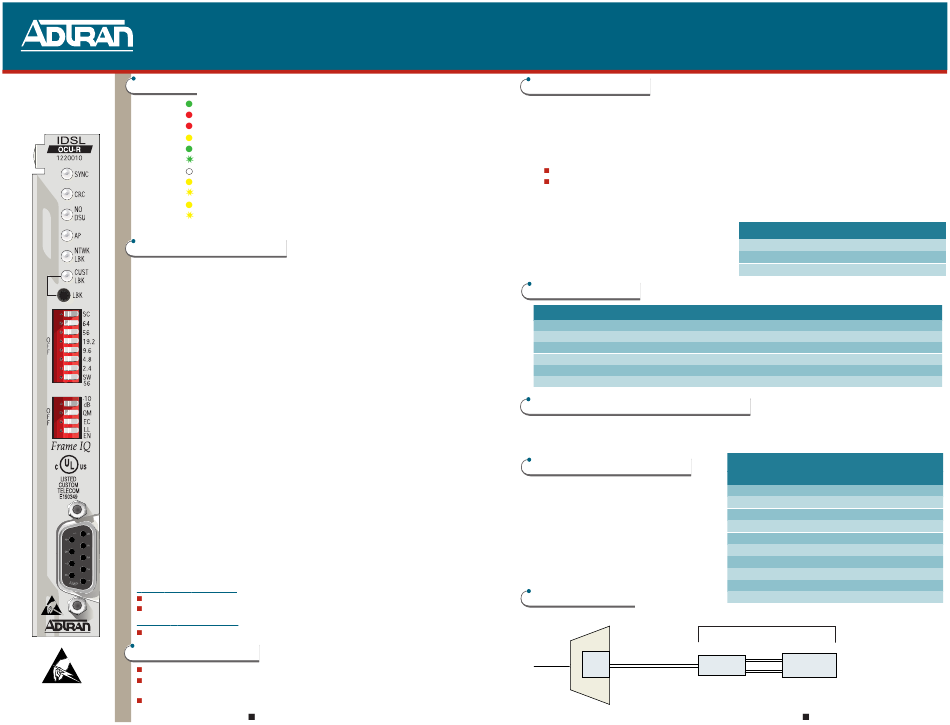

ADTRAN JOBAID T200 IDSL Quick Start Manual

STATUS LEDs

IDSL OCU-R
SYNC
CLEI: NCT1TX2B_ _
CRC
NO DSU
AP
NTWK LBK
CUST LBK
NOTE: All LEDs OFF indicates loss of power or other malfunction.

FRONT PANEL OPTION FEATURES

FRONT PANEL LBK PUSHBUTTON SW2

Loopback pushbutton SW2 initiates loopback tests without CO or test center coordination.
Refer to LBK Pushbutton in Testing section. Depressing the LBK pushbutton for five seconds
will toggle between hardware and software option settings. The AP LED provides indication.

FRONT PANEL DIP SWITCH SW4

SC ON Enables secondary channel when 56k or below data rate is selected.
64 ON Selects 64 kbps data rate (SC must be set to OFF).
56 ON Selects 56 kbps data rate.
19.2 ON Selects 19.2 kbps data rate.
9.6 ON Selects 9.6 kbps data rate.
4.8 ON Selects 4.8 kbps data rate.
2.4 ON Selects 2.4 kbps data rate.
SW56 ON Selects switched 56 data rate (SC must be set to OFF).

FRONT PANEL DIP SWITCH SW1

-10 dB ON Selects -10 dB AMI signal across 4-wire interface to customer. (Typical installation)
OFF Selects 0 dB AMI signal across 4-wire interface to customer. (Extended demarcation
installation)
QM ON Enables Quality Monitoring. Excessive errors will cause automatic blockage of data.
OFF Quality Monitoring disabled.
EC ON Enables Error Correction, valid only at 19.2 kbps or lower.
OFF Error Correction disabled.
LLEN ON Enables response to latching loopbacks.
OFF Disables response to latching loopbacks.

FRONT PANEL DB-9 CONNECTOR

Provides an RS-232 interface for connection to a VT100 or compatible terminal or test device.

COMPATIBLE HOUSINGS

Any standard T400/T200 housing, or these ADTRAN housings:
Span Power Applications
Single mount housing, P/N 1212007L1
Dual mount housing, P/N 1212008L1
Local Power Applications
Single mount housing, P/N 1212007L2

DEPLOYMENT GUIDELINES

All loops must be non-loaded.
Actual Measured Loss not to exceed 40 dB at 40 kHz, 135 Ω termination, the Nyquist
frequency of IDSL.
C A U T I O N C A U T I O N !
Recommended bridged tap length should not exceed 2 kft.
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY.
HANDLING PRECAUTIONS REQUIRED.
T200 IDSL OFFICE CHANNEL UNIT - REMOTE (IDSL OCU-R)
GREEN Loop synchronized.
RED Loop not synchronized.
ON Errors on 2-wire loop.
ON Customer DSU/CSU not responding/installed.
ON Remotely provisioned option set in effect.
FLASHING Remote control link active.
OFF DIP switch option set in effect.
ON OCU loopback toward network exists.
FLASHING Channel loopback at CSU exists.
ON IDSL OCU-R in loopback toward customer.
FLASHING Loopback toward the customer at the ADTRAN U-BR1TE.
CAUTION: On span-powered units, ensure ground
continuity exists between the unit, the housing,
and a known approved ground source.
For a complete Installation and Maintenance Practice faxback: (877) 457-5007, Document #574. Please have your fax number available.
INSTALLATION & TURNUP
1. Select desired options with front panel DIP switches SW1 and SW4.
2. Insert the IDSL OCU-R into its designated slot ensuring the edge connector seats firmly into the
backplane.
3. After insertion the IDSL OCU-R will run a self-test and synchronization phase during which all LEDs
undergo an On/Off sequence. Refer to Status LEDs section for descriptions.
4. After synchronization, which may take up to 50 seconds, the following LED indication will show:
SYNC LED - Green.
All other LEDs will be Off until network occurrences cause them to turn On.
If LEDs in step 4 are as noted, proceed with loop testing per specifications.
If LEDs in step 4 are in any other configuration, refer to Troubleshooting Guide section.
CAUTION: This product is intended for installation
in a restricted access location in a Type "B" or "E"
enclosure only.
Max input current @ max load = 32 mA @ -48 VDC
with an output of 6 mA @ 10 VDC.
WIRING CONNECTIONS
Pair Terminal Strip Designations
To/From Network TT, TR
To Customer DRT, DRR
From Customer DTR, DTT
Frame Ground GND
Local -48 Vdc GND
Local -48 Vdc PWR
HARDWARE VERSUS SOFTWARE PROVISIONING
When SW1 and SW4 are used for option selection the options take effect when the card is inserted in the
mounting. Subsequent software provisioning will override hardware options. Depressing the LBK
pushbutton for five seconds will toggle between the two option sets.
INSERTION LOSS MEASUREMENTS
IDSL Design Limits at Traditional 4-Wire
Frequencies.
TYPICAL APPLICATION
Channel Bank
2-Wire Loop
T-Carrier
U-BR1TE
T/R Pair
JOB
61220010L2-22C
Code Input
Power Code (PC) F
Telecommunication Code (TC) X
Installation code (IC) A
T400 PIN Number Customer RJ-48
41, 47
5, 15
49, 55
11, 27
17
35
Customer 4-Wire Qualifying IDSL Loss
Rate Frequency (kHz) Limit (dB)
2.4 1.2
2.4/SC 1.6
4.8 2.4
4.8/SC 3.2
9.6 4.8
9.6/SC 6.4
19.2 9.6
19.2/SC 12.8
56 28.0
56/SC & 64 36.0
Customer Premises
4-Wire Customer
Interface
IDSL
DSU/CSU
OCU-R
A
ID
0111
Output
C
–
–
–
7, 8
1, 2
14
14.5
16
17
19
20.5
24
27
35
36
