Sauder Beginnings 410421 Manual
  1. Manuals
  2. Brands
  3. Sauder Manuals
  4. Indoor Furnishing
  5. Beginnings 410421
  6. Manual

Sauder Beginnings 410421 Manual

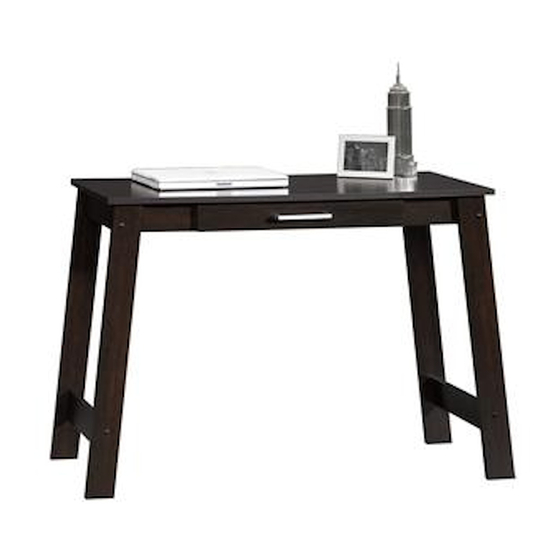

Writing table
Hide thumbs

Advertisement

Quick Links

Download this manual
sauder.com
Writing Table
Beginnings Collection | Model 410421
Need help? Visit Sauder.com to view video assembly tips or chat with a live rep.
Prefer the phone? Call 1-800-523-3987.
Share your journey!
You could totally write
a novel on this.
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-14
Français pg 15-17
Español pg 18-20
Lot # 386660
11/18/15
Purchased: __________________
Be sure to give us a ring before
making any returns. 1-800-523-3987

Advertisement

loading
Need help?

Need help?

Do you have a question about the Beginnings 410421 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sauder Beginnings 410421

Summary of Contents for Sauder Beginnings 410421

  • Page 1 Beginnings Collection | Model 410421 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. Need help? Visit Sauder.com to view video assembly tips or chat with a live rep. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Prefer the phone? Call 1-800-523-3987.
  • Page 2 Assembly Tools Required Part Identifi cation No. 2 Phillips Screwdriver Tip Shown Actual Size Hardware Identifi cation Assembly Steps 5-14 Hammer Not actual size Français 15-17 Español 18-20 Skip the power trip. Safety 21-22 This time. Warranty Page 2 410421 www.sauder.com/services...
  • Page 3 LEFT FRONT/RIGHT REAR LEG (2) DRAWER FRONT (1) D266 RIGHT DRAWER SIDE (1) D267 LEFT DRAWER SIDE (1) D268 DRAWER BACK (1) D269 DRAWER BOX FRONT (1) D622 DRAWER BOTTOM (1) D268 D266 D622 D269 D267 www.sauder.com/services 410421 Page 3...
  • Page 4 BLACK 1-7/8" FLAT HEAD SCREW - 16 CONNECTOR SCREW - 8 BLACK 1-1/8" PAN HEAD SCREW - 8 BLACK 7/8" LARGE HEAD SCREW - 2 BLACK 1-5/8" PAN HEAD SCREW - 2 30S BLACK 1-9/16" FLAT HEAD SCREW - 4 Page 4 410421 www.sauder.com/services...

  • Page 5: Hidden Connector

    Look for this icon. It means a Step 1 video assembly tip is available at www.sauder.com/services/tips Insert a CONNECTOR SCREW (8S) into each å HIDDEN CONNECTOR (5F). Scan this QR code or go to this address: http://qr.sauder.com/?ID=1334 to watch a video on how to assemble your unit.

  • Page 6: Black 1-7/8" Flat Head Screw

    STRETCHERS (G). Use eight BLACK 1-7/8" FLAT HEAD SCREWS (2S). Surface with HIDDEN CONNECTOR These edges should be even. These edges should be even. Surface with HIDDEN CONNECTOR These edges should be even. These edges should be even. Page 6 410421 www.sauder.com/services...

  • Page 7: Black 1-1/8" Pan Head Screw

    fi nish as this surface. This surface should be the same fi nish as this surface. BLACK 1-1/8" PAN HEAD SCREW (8 used for the LEGS) BLACK 1-7/8" FLAT HEAD SCREW (4 used for the ENDS) www.sauder.com/services 410421 Page 7...
  • Page 8 HIDDEN CONNECTORS, insert your screwdriver, at an angle, into the slot in the HIDDEN CONNECTOR. While pushing the screw into the hole of the adjoining part, turn the screwdriver clockwise to tighten. Long fi nished edge Page 8 410421 www.sauder.com/services...
  • Page 9 Fasten the UPRIGHTS (B and C) to the BACK (E) å and FRONTS (F). Use four BLACK 1-7/8" FLAT HEAD SCREWS (2S). BLACK 1-7/8" FLAT HEAD SCREW (4 used in this step) Surface with HIDDEN CONNECTORS Finished edge Surface with HIDDEN CONNECTORS www.sauder.com/services 410421 Page 9...
  • Page 10 UPRIGHT (B) and the CABINET LEFT (35DB) to the LEFT UPRIGHT (C). Use four GOLD 5/16" FLAT HEAD SCREWS (3S) through holes #1 and #3. GOLD 5/16" FLAT HEAD SCREW (4 used in this step) Roller end Page 10 410421 www.sauder.com/services...
  • Page 11 Slide the DRAWER BOTTOM (D622) into the grooves å in the DRAWER SIDES (D266 and D267) and DRAWER BACK (D268). BLACK 1-9/16" FLAT HEAD SCREW (2 used in this step) D268 D267 D266 Groove D267 D268 D622 D266 www.sauder.com/services 410421 Page 11...
  • Page 12 Fasten the DRAWER FRONT (J) to the DRAWER BOX FRONT (D269). å Use two BLACK 7/8" LARGE HEAD SCREWS (17S). BLACK 7/8" LARGE HEAD SCREW (2 used for the DRAWER FRONT) D267 D622 D269 D266 BLACK 1-9/16" FLAT HEAD SCREW (2 used in this step) Page 12 410421 www.sauder.com/services...

  • Page 13: Black 1-5/8" Pan Head Screw

    BOX FRONT, through the DRAWER FRONT, and into the PULL. Roller end BLACK 1-5/8" PAN HEAD SCREW (2 used for the PULL) D267 Roller end D266 104K GOLD 5/16" FLAT HEAD SCREW (4 used for the SLIDES) www.sauder.com/services 410421 Page 13...
  • Page 14 NOTE: Please read the back pages of the instruction booklet for important safety information. å This completes assembly. Clean with your favorite furniture polish or a damp cloth. Wipe dry. å And to celebrate, why not share your success story? 5 lbs. (8 used) To cover screws 40 lbs. Page 14 410421 www.sauder.com/services...
  • Page 15 élément et conserver le livret pour future référence. EXTRÉMITÉ ..............2 35DA ÉLÉMENT DROITE............1 Pour contacter Sauder MONTANT DROIT ............1 35DB ÉLÉMENT GAUCHE ...........1 en ce qui concerne cet MONTANT GAUCHE ..........1 35DC TIROIR DROIT ..............1 élément, faire référence...
  • Page 16 Fixer l'ARRIÈRE (E) et les DEVANTS (F) aux PIEDS (H et I). Utiliser huit VIS NOIRES TÊTE GOUTTE DE SUIF 28 mm (9S). Fixer l'EXTRÉMITÉS (A) aux ARRIÈRE (E) et DEVANTS (F). Utiliser quatre VIS NOIRES TÊTE PLATE 48 mm (2S). Page 16 410421 www.sauder.com/services...
  • Page 17 REMARQUE : Prière de lire attentivement les importantes informations concernant la sécurité qui fi gurent sur la couverture arrière du manuel d'instructions. Ceci complète l'assemblage. Pour nettoyer, utiliser l'encaustique pour meubles préférée ou un chiff on humide. Essuyer. www.sauder.com/services 410421 Page 17...
  • Page 18 35DA GABINETE DERECHO ..........1 et conserver le livret pour future référence. PARAL DERECHO ............1 35DB GABINETE IZQUIERDO ...........1 Pour contacter Sauder PARAL IZQUIERDO .............1 35DC CAJÓN DERECHO ............1 en ce qui concerne cet PANEL SUPERIOR ............1 35DD CAJÓN IZQUIERDO ...........1 élément, faire référence...
  • Page 19 I). Utilice ocho TORNILLOS NEGROS DE CABEZA REDONDA de 28 mm (9S). Fije los EXTREMOS (A) a el DORSO (E) y a las PARTES DELANTERAS (F). Utilice cuatro TORNILLOS NEGROS DE CABEZA PERDIDA de 48 mm (2S). www.sauder.com/services 410421 Page 19...
  • Page 20 NOTA: Por favor lea las páginas fi nales del folleto de instrucciones para información importante sobre la seguridad. Esto completa el ensamblaje. Limpie con su pulimento para muebles preferido o un paño húmedo. Seque con un paño. Page 20 410421 www.sauder.com/services...
  • Page 21 à Les téléviseurs peuvent être particulièrement un téléviseur. cet eff et. lourds. De plus, le poids et l’emplacement du tube image ont tendance à rendre les téléviseurs instables et enclins à tomber vers l’ a vant. www.sauder.com/services 410421 Page 21...
  • Page 22 Además, el peso y la ubicación del tubo de imagen tienden a causar la inestabilidad de televisores y propensa a volcarse hacia adelante. Page 22 410421 www.sauder.com/services...
  • Page 23 GARANTIE LIMITÉE DE 1 AN 1. Sauder Woodworking Co. (Sauder®) off re une couverture de garantie limitée à l’ a cheteur 4. La présente garantie ne s’ a pplique qu’ a ux défauts garantis qui se produisent pour initial du présent produit pendant une période un an à...
  • Page 24 Dear Valued Customer: So, how did it go? Thanks so much for choosing Sauder® furniture. I hope the Set a world record for speed? purchase and assembly process was a positive experience Feeling good about yourself? and you feel good about the furniture you just built. If you Nice.
