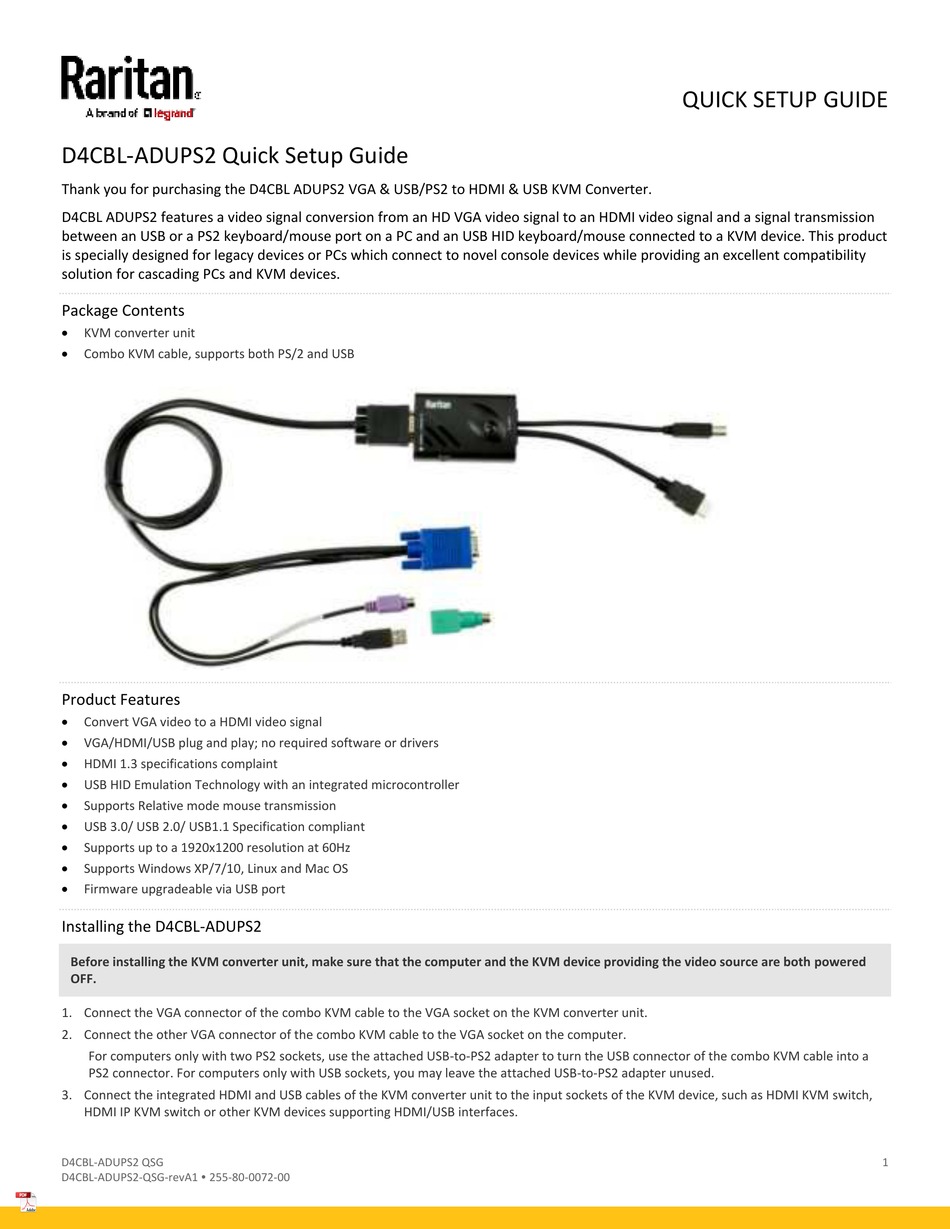

D4CBL-ADUPS2 Quick Setup Guide
Thank you for purchasing the D4CBL ADUPS2 VGA & USB/PS2 to HDMI & USB KVM Converter.
D4CBL ADUPS2 features a video signal conversion from an HD VGA video signal to an HDMI video signal and a signal transmission
between an USB or a PS2 keyboard/mouse port on a PC and an USB HID keyboard/mouse connected to a KVM device. This product
is specially designed for legacy devices or PCs which connect to novel console devices while providing an excellent compatibility
solution for cascading PCs and KVM devices.
Package Contents
•
KVM converter unit
•
Combo KVM cable, supports both PS/2 and USB
QS Rule
Product Features
•
Convert VGA video to a HDMI video signal
•
VGA/HDMI/USB plug and play; no required software or drivers
•
HDMI 1.3 specifications complaint
•
USB HID Emulation Technology with an integrated microcontroller
•
Supports Relative mode mouse transmission
•
USB 3.0/ USB 2.0/ USB1.1 Specification compliant
•
Supports up to a 1920x1200 resolution at 60Hz
•
Supports Windows XP/7/10, Linux and Mac OS
•
Firmware upgradeable via USB port
QS Rule
Installing the D4CBL-ADUPS2
Before installing the KVM converter unit, make sure that the computer and the KVM device providing the video source are both powered
OFF.
1. Connect the VGA connector of the combo KVM cable to the VGA socket on the KVM converter unit.
2. Connect the other VGA connector of the combo KVM cable to the VGA socket on the computer.
For computers only with two PS2 sockets, use the attached USB-to-PS2 adapter to turn the USB connector of the combo KVM cable into a
PS2 connector. For computers only with USB sockets, you may leave the attached USB-to-PS2 adapter unused.
3. Connect the integrated HDMI and USB cables of the KVM converter unit to the input sockets of the KVM device, such as HDMI KVM switch,
HDMI IP KVM switch or other KVM devices supporting HDMI/USB interfaces.
D4CBL-ADUPS2 QSG
D4CBL-ADUPS2-QSG-revA1  255-80-0072-00
