The purpose of this Quick Guide is to help you
understand the operation of the TENS unit
much more quickly, and the contents of the
quick guide are not a substitute for the user
manual. Please read the user manual careful-
ly before use to understand the contraindica-
tions and warnings. Please consult your doctor
before use if you're not sure whether you can
use this device.
Note: Do not use it while charging.

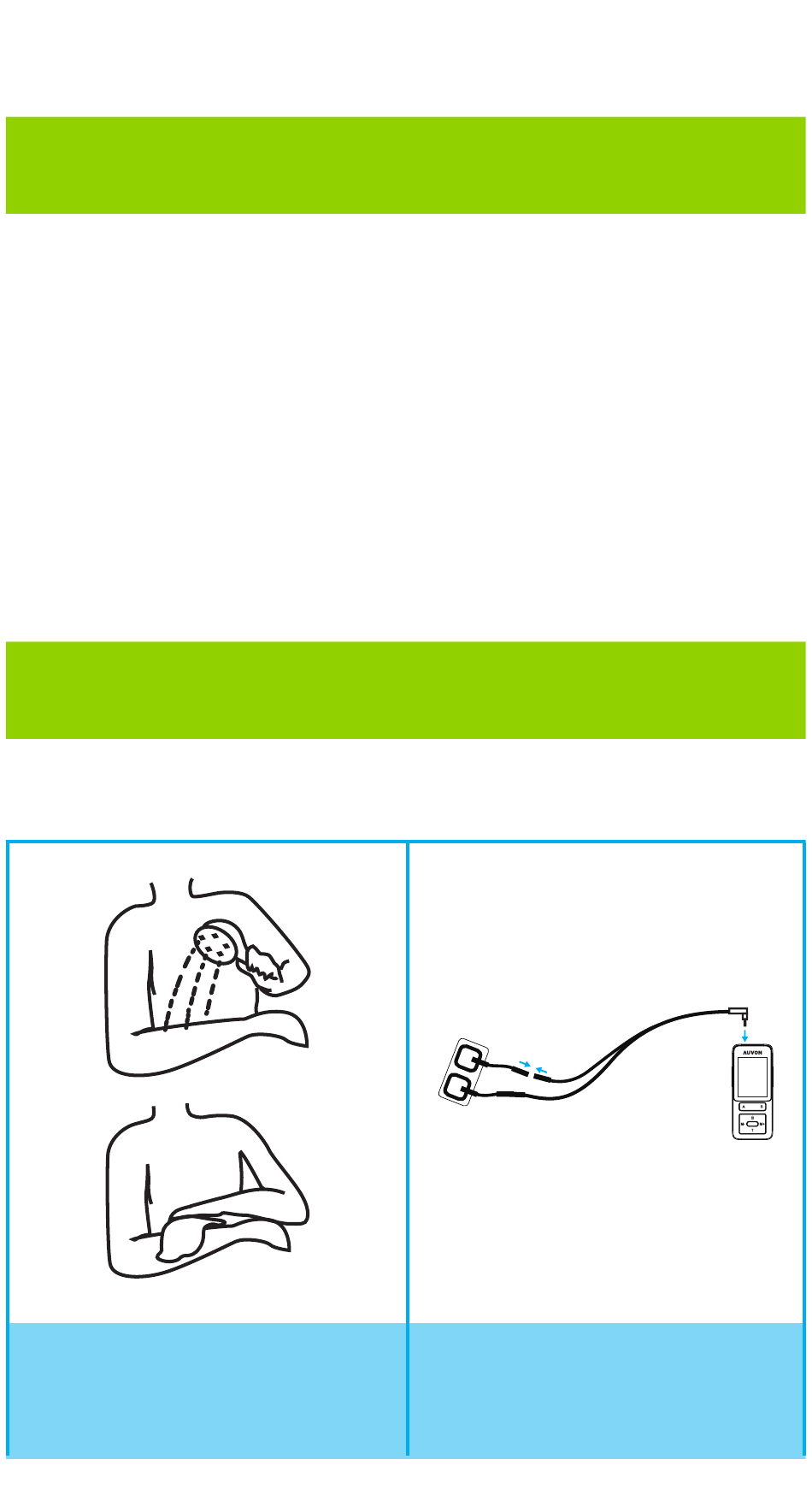

1. Clean and dry the
application areas.
Quick Guide
Attention
Operation
2. Connect the lead
wire to a pair of
pads and the device.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Auvon TU2224-A
Summary of Contents for Auvon TU2224-A
- Page 1 Quick Guide Attention The purpose of this Quick Guide is to help you understand the operation of the TENS unit much more quickly, and the contents of the quick guide are not a substitute for the user manual. Please read the user manual careful- ly before use to understand the contraindica- tions and warnings.
- Page 2 4. Long press the 3. Attach a pair of button to turn on pads. the device. 5. Choose the con- 6. Choose a mode. nected channel.
- Page 3 7. Adjust intensity. 8. Set time. 10. Remove the 9. Long press to turn pads. Do not pull off the device. the wire.
- Page 4 Pad Placement Suggestion Square Electrodes Neck Shoulder Elbow Upper Back Lower Back/Waist Buttock Sciatica Abdomen Knee Thigh Calf Ankle...
- Page 5 Small Round Electrodes Shoulder Elbow Neck Wrist Finger Upper Back Lower Back/Waist Buttock Abdomen Knee Thigh Calf Foot Ankle...
- Page 6 Rectangular Electrodes Neck Shoulder Elbow Upper Back Lower Back/Waist Buttock Sciatica Abdomen Knee Thigh Calf Ankle...
- Page 7 USER MANUAL TENS and Powered Muscle Stimulator Relaxation, Anywhere, Anytime Model TU2224-A Device Name: TENS and Powered Muscle Stimulator...
-
Page 8: Table Of Contents
TABLE OF CONTENTS 1. Explanation of TENS & EMS ......9 2. Standard Package ........... 9 3. Illustrations of the Device ......10 4. Operating Instructions ........12 4.1 Note Before Use ........12 4.2 How to Use ........... 12 4.3 After Use .......... -
Page 9: Explanation Of Tens & Ems
It will force the muscles to rapidly contract and relax. 2. Standard Package ● AUVON TENS and Powered Muscle Stimulator ® ● Pin Pads ● Pads Holder ●... -
Page 10: Illustrations Of The Device
Email: support@iauvon.com 3. Illustrations of the Device... - Page 11 Email: support@iauvon.com ① Lock indicator ② Time indicator ③ TENS modes (P1-P16) ④ Intensity Increase button (Channel A) ⑤ Intensity decrease button (Channel A) ⑥ Intensity indicator (Channel A) ⑦ EMS modes (P17-P24) ⑧ Channel A choose button ⑨ Lock button ⑩...
-
Page 12: Operating Instructions
Email: support@iauvon.com 4. Operating Instructions 4.1 Note Before Use ● Do not use this device during charging. (Fully charged in 2-3 hours.) ● The backlight of the screen will automatically come off after 20 seconds of no operation; when the device has no output, it will automatically shut down if there is no further operation within 5 minutes. - Page 13 Email: support@iauvon.com 2. Connect a pair of electrode pads to one lead wire and plug the other end to the device. 3. Attach at least one pair of electrode pads to the massage area and press the edge of the pads firmly on your skin to make sure full contact.
- Page 14 Email: support@iauvon.com 4. Press the button for 2-3 seconds to turn on the unit. NOTE: Do not move the electrode pads or remove the lead wires during the use, or you may be shocked. 5 . C h a n n e l O p t i o n : Choose channel A/B by pressing the “A”/ “B”...
- Page 15 Email: support@iauvon.com 6. Mode Option: Press the “M-”/“M+” button to choose the mode. If “A” is flashing, it means the mode of channel A is selected. (If “B” is flashing, it means the mode of channel B is selected). NOTE: The intensity of the channel will revert to the lowest setting with each mode selection.
- Page 16 Email: support@iauvon.com 7. Intensity Option: Press the “+”/”-” button on the left/right side of the machine to adjust the intensi- ty for the channel on which the icon is flashing. NOTE 1: The intensity of the channel will revert to the lowest setting with each mode selection.
- Page 17 Email: support@iauvon.com 8. Time Option: Increase time by pressing the T button, and the time will increase by 10 minutes for each tap from 10 to 90 minutes and the C mode (infinite time). The device will automatically turn off when time is reached. NOTE 1: When the device is set in C mode and the channel has output, the massage will go on until the battery is exhausted unless it is manually...
-
Page 18: After Use
Email: support@iauvon.com 9. Lock Function: Press button lock/unlock the screen. And the in- tensity, mode and time option can be adjusted only when the screen is unlocked. 4.3 After Use 4.3.1 Turn off the device by pressing the button for 2-3 seconds. -
Page 19: Charge The Battery
Email: support@iauvon.com 4.4 Charge the Battery 4.4.1 When the battery icon shows “ ” or the mas- sage strength decreases, it indicates that the battery needs to charge. Turn off the unit. 4.4.2 Connect the device and the charger with a USB extension cord. - Page 20 Email: support@iauvon.com The modes 1 to 16 are TENS and modes 17 to 24 are EMS. Number of Main Mode Mode Type Mode TENS TENS TENS TENS TENS TENS TENS TENS TENS TENS TENS TENS TENS TENS TENS TENS...
-
Page 21: Pad Placement Suggestion
Email: support@iauvon.com 5.2 Pad Placement Suggestion Neck Pain Shoulder Pain Modes: 5, 6, 7, 8, 14, Modes: 9, 10, 12, 16 17, 23 Carpal Tunnel Syn- Tennis Elbow drome Modes: 16, 19, 20 Modes: 3, 22 Back Pain Sciatica Modes: 1, 3, 4, 5, 8, 17, Modes: 1, 2, 3, 4, 5, 14... - Page 22 Email: support@iauvon.com Hip/Thigh Pain Period Pain Modes: 15, 17, 18, 19, 20, Modes: 1, 4, 11 21, 22, 23, 24 Knee Pain Claf Pain Modes: 4, 9, 10, 12, 13, Modes: 3, 6, 13, 15, 17, 16, 19 Ankle Pain Plantar Fasciitis Modes: 6, 17, 18, 20 Modes: 9, 10, 12...
- Page 23 Email: support@iauvon.com Biceps Modes: 19, 20 Modes: 23, 24 Glutes Hamstrings Modes: 21, 22, 23, 24 Modes: 18, 20, 21 Quadriceps Calves Modes: 17, 19, 20 Modes: 17, 18...
-
Page 24: Tens Electrode Pads & Pads Holder
Email: support@iauvon.com 6. TENS Electrode Pads & Pads Holder 6.1 Features High-quality ABS material to make sure you use it safely. Widely compatible for pads in different sizes. The salient points are designed specially to lessen damage to the pads. -
Page 25: Instruction
Email: support@iauvon.com 6.2 Instruction Stick the electrode pads on the holder to Step 1 avoid getting dust. Wind the thread around the holder for Step 2 easy use as the picture shown. -
Page 26: Electrode Pads Care And Storage
Email: support@iauvon.com Step 3: Store the electrodes in the storage Step 3 bag and reseal them. 6.3 Electrode Pads Care and Storage ● Do not cover the sticky side of the electrode pads with subjects like dry paper or dust, if you do, please drop a few drops of water and clean with finger pulp to remove dirt. -
Page 27: Electrode Pads Precautions
Email: support@iauvon.com ● Please store the electrode pads in a cool (between 5°C-35°C/41°F-95°F) and dry place. Do not expose the electrode pads to sunlight or any extreme tem- peratures to prolong the lifespan of the electrode pads. ● When the electrode pad has the following condi- tions, please do not use it and promptly replace it: gel melting;... -
Page 28: Safety Precautions & Warnings
Email: support@iauvon.com and the gel may be damaged when separating. The electrode pads should be at least one inch apart from each other. Changing the distance between the elec- trode pads or the orientation of the electrode pads can change the electrical sensation. * Ensure each connection port is well connected before use, or the current may be unstable. -
Page 29: Prohibited Individuals
Email: support@iauvon.com 7.2 Prohibited Individuals ● Pregnant women, infants and children. ● People who do not have the ability to express their thoughts or intentions. ● People who are incapable of operating the device by themselves. ● People who have a tendency to bleed internally after an injury or fracture. -
Page 30: Trouble Shooting
Email: support@iauvon.com ● Driving or operating machines. ● Exercising. ● Any activities that cannot be interfered with. 8. Trouble Shooting If your device is not operating properly, please check below for common problems and suggested solu- tions. If the recommended action does not solve the problem, please contact customer service: sup- port@iauvon.com Possible... - Page 31 Email: support@iauvon.com Possible Problem Solution Cause Different body Try to exchange the position areas react of the electrode pads. differently. Plug the wire into the output electrode Poor wire port completely. If it does not pad feels connection. work, replace the wire and stronger try again.
- Page 32 Email: support@iauvon.com Possible Problem Solution Cause If you want to adjust the Adjust the intensity for channel A, make intensity for sure the “A” icon is selected the wrong and flashing. Channel B is Can’t channel. the same. adjust the mode/ If there’s a lock icon on the intensity/...
- Page 33 Email: support@iauvon.com Possible Problem Solution Cause Charge the battery and a full Low battery. charge may need 2-3 hours. Power cuts off during use. Set the time for your device The count- with the “T” button from 10- down is 90 minutes and the continu- finished.
-
Page 34: Symbols
Email: support@iauvon.com 9. Symbols Symbol Meaning Attention, consult accompanying documents BF Isolated Applied Part Class II equipment Disposal in accordance with Directive 2002/96/EC MANUFACTURER Date when the medical device was manufac- tured. AUTHORISED REPRESENTATIVE IN THE EUROPEAN COMMUNITY Pls read the user manual before use CE Mark, meets compliance of applicable directives and regulation in EU... -
Page 35: Certification
Email: support@iauvon.com Symbol Meaning IIIP Classification: The first number 2: Protect- ed against access to hazardous parts with a finger, and the jointed test finger of 12 mm Ф, 80 mm length, shall have adequate clearance from hazardous parts, and protected against solid foreign objects of 12.5 mm Ф... - Page 36 Auvon-US-TU2224-sms-v1.2-221012...
