The purpose of this Quick Guide is to help you
understand the operation of the TENS unit much
more quickly, and the contents of the quick guide
are not a substitute for the user manual. Please
read the user manual carefully before use to un-
derstand the contraindications and warnings.
Please consult your doctor before use if you're not
sure whether you can use this device.
Note: Do not use it while charging.

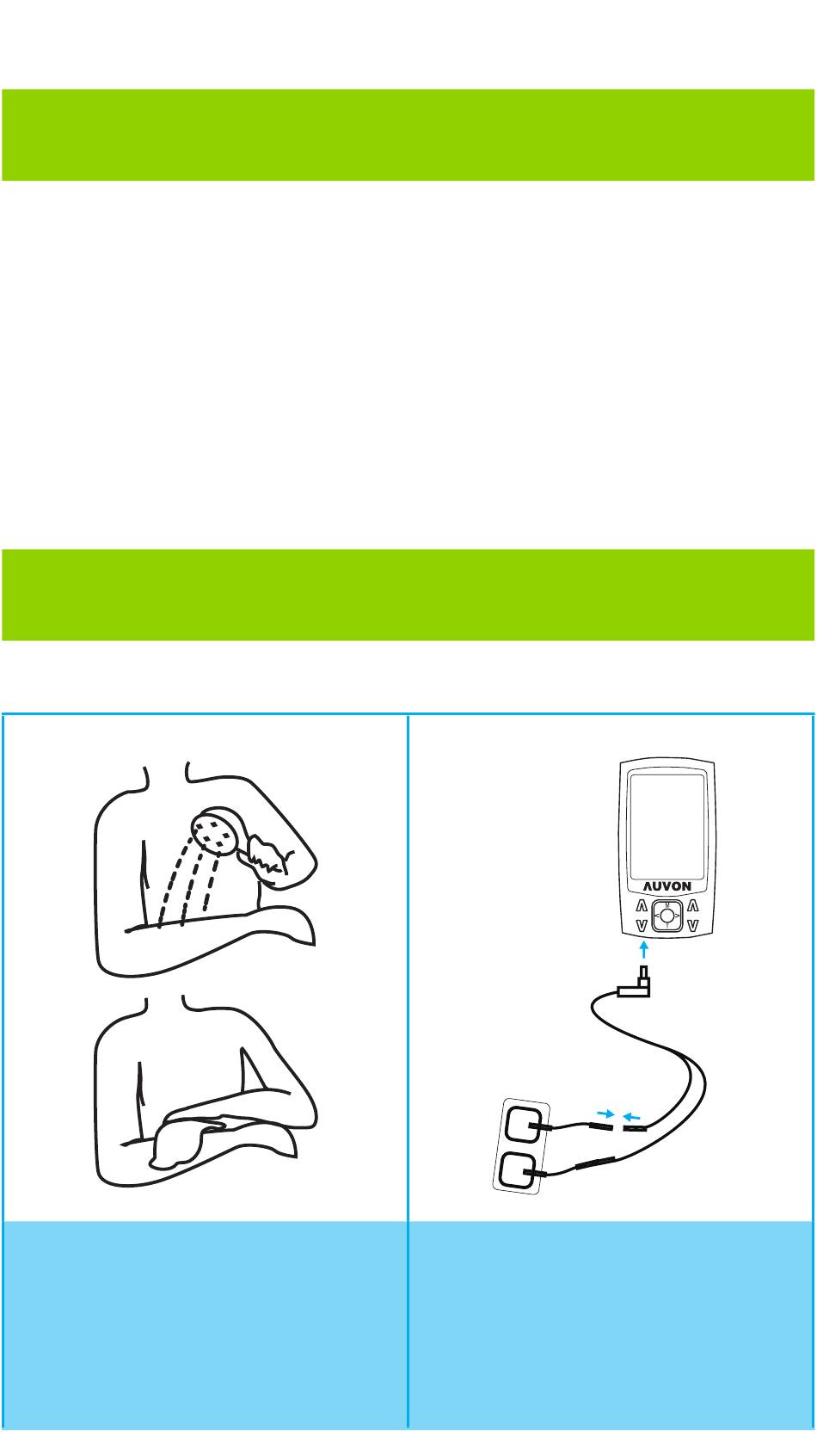

1. Clean the applica-
tion areas.
Quick Guide
Attention
Operation
2. Connect the lead
wire to a pair of pads
and the device.
Note: Keep the unit
off.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Auvon AS8012C
Summary of Contents for Auvon AS8012C
- Page 1 Quick Guide Attention The purpose of this Quick Guide is to help you understand the operation of the TENS unit much more quickly, and the contents of the quick guide are not a substitute for the user manual. Please read the user manual carefully before use to un- derstand the contraindications and warnings.
- Page 2 3. Attach the pads. 4. Turn on the device. 5. Choose the con- 6. Choose mode. nected channel.
- Page 3 7. Adjust intensity. 8. Set time.
- Page 4 9. Long press to lock/ 10. Turn off the device unlock the screen. after massage. 11. Remove the pads, do not pull the wire.
- Page 5 Pad Placement Guide Notes: 1. Do not overlap the pads. 2. Do not place the pads on the artery. 3. Only place the pads on the same side of the arm/leg. If you want to know more details about the mode, please read the user manual, and if you encounter any problem during the use, please check the user manual for “Trouble...
- Page 6 USER MANUAL Dual Channel TENS Massager Relaxation, Anywhere, Anytime Model AS8012C Device Name: TENS and Powered Muscle Stimulator...
-
Page 7: Table Of Contents
TABLE OF CONTENTS 1. Explanation of Pain ..........8 2. Explanation of TENS ..........8 3. Standard Package ..........8 4. Features ..............9 5. Product Illustrations ..........11 6. Operating Instructions .......... 13 6.1 How to Use ..........13 6.2 After Use ............ 17 7. -
Page 8: Explanation Of Pain
TENS does not work for everyone, however, for most pa- tients, it is effective in reducing or eliminating pain, allowing them to return to normal activities. 3. Standard Package ● AUVON Dual Channel TENS Massager ® ● Pin Pads ● Pads Holder ●... -
Page 9: Features
Email： support@iauvon.com ● USB Cable ● User Manual 4. Features Mechanism Technical Description Isolated channel with independent Dual-channel mode and intensity 0-150 mA at 500 ohm load each Pulse channel. Amplitude Symmetrical Bi-Phasic Square Wave Form 0- 50V (Load: 500 ohm) Pulse Voltage 180mA lithium battery Power source... - Page 10 Email： support@iauvon.com P1-8: TENS; P9-16: PMS; Modes P17-24: MASSAGE. 2 outputs with 24 modes 20 levels of intensity Intensity 20-minute default timer. Adjustable between 10-90 minutes. Increases/decreases in 10-minute intervals. Timer Set the timer by pressing the “T” button and the unit will turn off when the time is up.
-
Page 11: Product Illustrations
Email： support@iauvon.com 5. Product Illustrations... - Page 12 Email： support@iauvon.com On/Off switch ① USB port ② Time ③ Battery indicator ④ Adjustable Intensity (A Channel) ⑤ Adjustable Intensity (B Channel) ⑥ Lock ⑦ Intensity Increase/ Channel A ⑧ Intensity Decrease/ Channel A ⑨ Time Selection ⑩ Mode Selection ⑪...
-
Page 13: Operating Instructions
Email： support@iauvon.com 6. Operating Instructions 6.1 How to Use 1. Clean your skin before use. Use the pads on clean and flat areas, no sweat and no oil. 2. Connect a pair of electrode pads to one lead wire; connect the other end of the wire to the left output of the device. - Page 14 Email： support@iauvon.com 3. Attach one pair or two pairs of the electrode pads to the massager area, such as shoulder and leg. Note: Adding a few drops of water on the pads and drying the pads naturally will increase their longevity. Make sure both pads on the skin are not overlapping.
- Page 15 Email： support@iauvon.com 6. Press the "M" button t o c h o o s e 6 m a s t e r modes, and press the "<" and ">" button to choose sub-modes. If "A" is flashing, it means the mode of channel A is selected.
- Page 16 Email： support@iauvon.com 8. The recommended usage time is 10-90 minutes. Press “T” on the device can increase the usage time for each s e l e c t e d m o d e ( 1 0 minutes interval). The device will automatical- ly turn off when time is reached.
-
Page 17: After Use
Email： support@iauvon.com 6.2 After Use 1. Turn off the device by sliding the on/off switch on the top of the unit. 2. Remove lead wire pin from electrode connector by gently twisting and pulling it out. 3. Lift a corner of the electrode pad and slowly peel it away. - Page 18 Email： support@iauvon.com Back Modes:1-4，17 Attach the two pads on the sides of the back, do not attach it on the spine or backbone. Waist Modes: 1-11,19,13-16 Attach the two pads on the sides of the lower back, do not attach it on the spine or backbone.
- Page 19 Email： support@iauvon.com Wrist Modes: 10 Attach the pads on the upper and lower side of the same wrist. (Do not place the pads on the pulse.) Modes: 1,3,4,5,6,9,13,15,19,22 Attach the pads above and below the pain area of your hip. (NOT on the back) Modes: 15 Attach the pads on both sides of...
-
Page 20: Mode Instruction
Email： support@iauvon.com Calf Modes: 1,2,3,4,7,8,9,10,11,13, 14,15 ,16,17,18,19,22 Attach both pads on the calf/ leg where you feel pain. (Do not place electrode pads simultane- ously to the calves of both legs.) Ankle/Foot Modes: 1,4,11,13,19 Attach pads per the illustration, on the left/ on the outside of your ankle/foot for pain. -
Page 21: Expected Feelings
Email： support@iauvon.com 8.3 Expected Feelings Master Sub- Program Feeling Mode Mode Continuous comfort- able tingling. TENS Comfortable tingling For TENS, and pulsing sensation. it is used for temporary Comfortable rhythmic relief of pain tingling. associated with sore Continuous comfort- and aching able tingling. - Page 22 Email： support@iauvon.com Low frequency slight beating firstly and then comfortable pulsing sensation. Low frequency slight beating. Low frequency beat- ing. Beating from low fre- For PMS, it quency to a little high is intended frequency. to be used to stimulate healthy Muscle twitches at a muscles...
- Page 23 Email： support@iauvon.com This program gently warms up the muscles prior to exercise; it feels like a rhythmic massage. Increase intensity until you get a strong but comfortable muscle movement. For PMS, it is intended This program uses a to be used pulse frequency appro- to stimulate priate to fast twitching...
- Page 24 Email： support@iauvon.com Comfortable tingling from shallow to deep with 3-4 seconds pause. Comfortable pulsing sensation from shal- low to deep with 3-4 seconds pause. Variable comfortable MASSAGE tingling, slight beating and scrapeing sensa- tion. For Mas- sage, it is Comfortable slight used to get tingling from shallow to your mus-...
-
Page 25: Mode Specification
Email： support@iauvon.com 8.4 Mode Specification Number Type of Pulse Rate Pulse Width of Mode Mode TENS 81~89 TENS 51~59 TENS 95~100 TENS 75~85 TENS 10~100 TENS TENS 2/95~100 200/150 TENS 2/40~50 200/150 40~45 35~40 2~130 38~45 39~46 6~10 40~48 2~45 MASSAGE MASSAGE MASSAGE... -
Page 26: Tens Pads Holder
Email： support@iauvon.com 9. TENS Pads Holder 9.1 Features High quality ABS material to make sure you use it safely. Wide compatibility for patches in different sizes. The salient points are designed specially to lessen damage to the pads. -
Page 27: Instruction
Email： support@iauvon.com 9.2 Instruction Stick the electrode patches on the holder to Step 1 avoid getting dust. Wind the thread around the holder for easy Step 2 use as the picture shown. -
Page 28: Safety Precautions And Warnings
Email： support@iauvon.com 10. Safety Precautions and Warnings 10.1 Pain Management Warnings Pain is a very important signal to tell us something is wrong with our body. If you have received medical or physical therapy for pain, please consult your physician before using this device to confirm if you can use this pain relief device. -
Page 29: Prohibited Activities
Email： support@iauvon.com severe muscle spasms and lead to chocking ● The heart and its vicinity or genital area ● Open wounds or rash areas ● Swollen, red, infected or inflamed areas ● Areas of skin erosion (caused by varicose veins, phle- bitis, thrombophlebitis, and thrombosis) ●... -
Page 30: Trouble Shooting
Email： support@iauvon.com ● Ensure each connection port are tightly connected before use, otherwise the current may be unstable. ● Pads should not touch any metal objects like belt buck- le, necklace or other metal worn under clothes. Always place clean pads in accordance with illustrations provided. - Page 31 Email： support@iauvon.com Possible Problem Solution Cause The transpar- Peel off film on the adhe- ent film is still sive surface of pads. on the pad. Apply the pad immediately Dry the pad. after washing. Pads don’t The gel was Replace the pad. stick to damaged.
- Page 32 Email： support@iauvon.com Possible Problem Solution Cause Drop a few drops water on The gel was the pads to moisten gel or dry or con- clean it under the running taminated. water for few seconds. The skin turns Excessive red or usage time or Reduce the application time the skin...
- Page 33 Email： support@iauvon.com Possible Problem Solution Cause Low battery. Charging the battery. Find the on/off button ac- Operate the cording to the ILLUSTRA- wrong on/off TIONS on the user manual button. and turn it on again. Insensitive on/off button or the on/off Reset the on/off button and button didn’t turn it on.
- Page 34 Email： support@iauvon.com Possible Problem Solution Cause MODE - Find the mode button according to the ILLUSTRATIONS on the user manual and operate it again. MODE - Press “<” and “>” Operate the to switch the mode of the wrong but- same line, and see whether tons.
- Page 35 Email： support@iauvon.com Possible Problem Solution Cause Pads are not attached Attach both pads firmly to to the body the skin. firmly. The transpar- ent films are Peel the film off the pads. still on the pads. The pads Do not stack pads together stack together or overlap pads.
- Page 36 Email： support@iauvon.com Possible Problem Solution Cause Find the charging port according to the ILLUS- Operate the TRATIONS on the user wrong port. manual and plug the cable and charge it again. The charging port is narrow The USB is at the top and wide at the Can not not connect- bottom, so please check...
-
Page 37: Symbols
Email： support@iauvon.com 12. Symbols Symbol Meaning Attention, consult accompanying docu- ments BF Isolated Applied Part Class II equipment Disposal in accordance with Directive 2002/96/EC MANUFACTURER Date when the medical device was manu- factured. AUTHORISED REPRESENTATIVE IN THE EUROPEAN COMMUNITY Pls read the user manual before use CE Mark, meets compliance of applicable directives and regulation in EU... -
Page 38: Certification
Email： support@iauvon.com Symbol Meaning IIIP Classification: The first number 2: Pro- tected against access to hazardous parts with a finger, and the jointed test finger of 12 mm Ф, 80 mm length, shall have ad- equate clearance from hazardous parts, and protected against solid foreign objects IP22 of 12.5 mm Ф... - Page 39 AS8012C-sms-v1.6-220420-80×130mm...
