- Page 1 USER MANUAL Dual Channel TENS Massager Relaxation, Anywhere, Anytime Model AS8012 Device Name: TENS and Powered Muscle Stimulator...
-
Page 2: Safety Precautions And Warnings

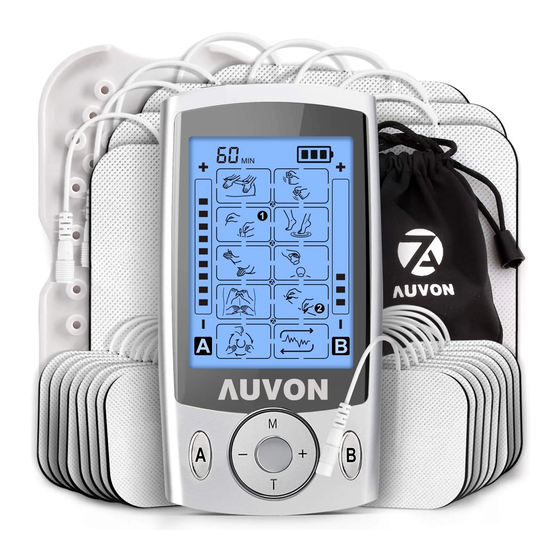

INCLUDED IN THIS STANDARD PACKAGE ® ● AUVON Dual Channel TENS Massager ● Square Pin Pads ● Rectangle Pin Pads ● Pads Holder ● Pouch ● Set of Lead Wires (½ Wire) ● USB Cable & USB Adapter ● User Manual ● Happy Card FEATURES ● 2 output with 20 modes ● 20 level intensity ● 20 minutes default timer, can adjustable from 10-60 minutes ● Rechargeable lithium battery ● Battery indicator to know when need to recharge battery ● AC adapter 110-240V, USB Charger 5V SAFETY PRECAUTIONS AND WARNINGS... - Page 3 Consult with your physician before using this unit. The unit may cause lethal rhythm disturbances in certain susceptible individuals. If you have had a recent surgical procedure, the stimulation may disrupt the healing process. Before using your unit, inspect these things. 1. Cord is not broken. 2. Pad gel is not damaged. 3. Electrode cord connection is not broken. 4. Unit is intact and working. 5. There is no battery leakage. DO NOT USE ON THESE INDIVIDUALS ● Pregnant women ● Do not use on children or infants because the device has not been evaluated for pediatric ● Keep out of the reach of young children because the electrode cord could cause strangulation ● Persons incapable of expressing their thoughts or intentions. ● Persons incapable of operating the unit by themslelves. ● Use with caution if you have a tendency to bleed internally, such as following an injury or...
- Page 4 fracture. ● If you have suspected or diagnosed heart disease, you should follow precautions recommended by your physician. ● If you have suspected or dignosed epilepsy, you should follow precautions recommended by your physician ● Use caution if stimulation is applied over the menstruating uterus. NEVER APPLY THE PADS TO THESE BODY AREAS: ● The head, the mouth, or any area of the face. ● The neck or any area of the throat because this could cause severe muscle spasms resulting in closure of the airway, difficulty in breathing, or adverse effects on heart rhythm or blood pressure. ● Do not use near the heart, or on genital area. ● Both sides of the thorax simultaneously (lateral or front and back), or across your chest because the introduction of electrical current may cause rhythm disturbances which could be lethal. ● On the calves of both legs at the same time...
- Page 5 because this may cause cardiac disturbance. ● On the bottom of both feet at the same time because this may cause cardiac disturbance. Open wounds or rashes or over swollen, red, infected or inflamed areas or skin eruptions (such as varicose veins, phlebitis, thrombophlebitis and thrombosis), or on top of or close to cancerous lesions, or over areas of skin that lack normal sensation. DO NOT USE THIS UNIT DURING THESE ACTIVITIES ● When in bath or shower; ● While sleeping; ● While driving, operating machinery, or during any activity in which electrical stimulation can put you at risk of injury. PAIN MANAGEMENT WARNINGS ● If you have had medical or physical treatment for your pain, consult with your physician before using this unit. ● If your pain does not improve, becomes serious chronic or severe, or continues for more than five years, stop using the unit and consult with your physician.
- Page 6 very important warning telling us that something is wrong. Therefore, if you suffer from any serious illness, consult your physician in order to confirm that it is advisable for you to use this Power Relief unit. PRECAUTIONS REGARDING THE PADS ● Do not move the pads to another location while the unit is on. ● Therapy won't work with just one pad. You MUST USE TWO PADS at the same time. ● Make sure the components are connected well and the pads are fixed on the part of the body you wish to treat or the therapy may not be effective. ● Pad should not touch any metal object, such as belt buckle, necklace, or other metal worn under clothing. ● Do not overlap pads or put pads on top of each other. It may weaken or stop therapy, or the unit may stop working. Gel pads may also stick together and cause gel to be removed when separating. ● Do not share pads with another person. This may cause a skin irritation or infection. Pads are intended for use by one person.
-
Page 7: How Does It Work
● Do not leave pads attached to the skin after treatment. ● Do not bend or fold because the gel may get damaged and it won't stick or function properly. ● To avoid damage to the adhesive surface to the pads, put the pads only on the skin or on the plastic pad holder provided to avoid damage to the adhesive surface of the pads. ● Always place clean pads in accordance with illustrations provided. ● Do not apply ointment or any solvent to the pads or to your skin because it will disrupt the pads from functioning properly. The self- adhesive pads will adhere to your skin. HOW DOES IT WORK? Scientific theory suggests that electrical stimulation therapy may work in several ways: 1. The gentle electrical pulse move through the skin to nearly nerves to block or shut out the pain message from the source of the pain to reaching the brain. 2. The gentle electrical pulse increases the production of the body's natural painkiller, such as endorphins. 3. Furthermore, it is thought that the electrical stimulation improves blood circulation as well. - Page 8 Muscles contract and relax with the flow of the electrical stimulation. With the replated contracting and relaxing, the blood flows in and out and the blood circulation improved. OPERATING INSTRUCTIONS HOW TO USE 1. Clean your skin before use. Use the pads on clean and flat areas, no sweat, no oil. 2. Attach one pair or two pairs of the electrode pads to the massager area, such as shoulder and leg. Note: Adding a few drops of water on the pads and drying the pads naturally will increase their longevity. Make sure both pads on the skin and not overlapping. 3. Connect a pair of electrode pads to one lead wire by plug them on; the other end of the wire is connected to the left output of the device. Similarly, the other pair of electrode pads is connected to the remaining wire end and the right output of the device. 4. Turn on the device by sliding the on/ off switch on the top of the unit. 5. Press the A button to choose Channel A.
-
Page 9: After Use
Press the M button to try different mode and press +/- to increase or decrease intensity. Press the B button to choose Channel B and select your favorite mode and intensity (The modes on Channel A can be different with that on Channel B). Note: Remember the strength will default to the lowest setting by each mode selection. 6. Recommended application is 10-60 minutes. Increase 10 minutes by each setting by pressing the T on the device. The time remaining is automatically counted down until it turns off once the time finishes. 7. Press and hold the center button for 3 seconds to lock the screen, 3 seconds again to unlock the screen. AFTER USE 1. Turn off the device on by sliding the on/ off switch on the top of the unit. 2. Remove lead wire pin from electrode connector by gently twisting and pulling it out. 3. Lift a corner of the electrode and slowly peel it away. Avoid touching the gel as much as possible. DO NOT peel the electrode off by the wire. - Page 10 4. Remove the electrodes back to the storage bag and reseal tightly to prevent dry-out. Store at room or cool temperature and keep out of direct sunlight. RECOMMEND MASSAGE POINTS...
- Page 11 ILLUSTRATIONS OF THE DEVICE AND ACCESSORIES...
- Page 12 On / off switch ① USB port ② Time ③ Battery indicator ④ Adjustable Intensity (A Channel) ⑤ Adjustable Intensity (B Channel) ⑥ Intensity Decrease ⑦ Channel A ⑧ Lock ⑨ Mode Selection ⑩ Intensity Increase ⑪ Channel B ⑫ Time Selection ⑬ Two output connector ⑭ Icon & Mode Name Description Simulating Tuina Tuina is a hands-on body treatment which Tuina-...
- Page 13 Icon & Mode Name Description Acupuncture Simulating acupuncture provides the same sensation Acupuncture- without needles Combination Thai Simulating massage Thai massage to relex your Thai deep layers of massage- muscles Combination Simulating the Palm feeling of using kneading fingers and palm to apply Palm weight to the kneading- body Combination Stimulating...
- Page 14 Icon & Mode Name Description Lifting pinching Simulating the manipulation thumb and index finger lift Lifting the skin pinching- Combination Stimulating the Scrapeing feeling of scrap over skin with a Scrapeing- smooth edged Combination instrument Tapping- Auto Kneading- combination Pushing of Tapping- Auto- Kneading- Combination Pushing Auto- Combination Auto combination of several modes Auto- for relaxation...
-
Page 15: Troubleshooting
TROUBLE SHOOTING If your device is not operating properly, please check below for common problems and suggested solutions. If the recommended action does not solve the problem, please contact the seller. Possible Problem Solution Cause This is One pad Nothing needs to normal. feels be done. Make Different area sure the pads are stronger of your body than the moist and making will react other good contact. differently Wash adhesive the The adhesive surface of pads the surface gently with your of the pads is fingertips for about dirty or dry... - Page 16 Possible Problem Solution Cause Pads are not attached Attach both pads to the body firmly to the skin firmly transparent Peel off film on the films are still adhesive surface stuck to the of pads pads The pads Do not stack pads intensity stack together or overlap is not felt together or pads with a overlap The cord is very weak Connect cord not properly intensity correctly into the connected to level jack...
- Page 17 Possible Problem Solution Cause Have you remove the Peel off film on the transparent adhesive surface film from the of pads pad? Was the It is difficult pad applied to attach immediately Dry the pad the pad to after the skin washing? Is the adhesive on the surface Replace the pad of the pad damaged? The battery is Power cuts Charge the battery weak off during The cord is Replace the cord broken Pads get...
- Page 18 * The AUVON ® TENS Massager is with 10 Massage Modes, and totally 20 Sub-mode Choices. TENS PADS HOLDER FEATURES High quality ABS material to make sure your use safely. Wide compatibility for patches in different sizes. The shape of salient point designed specially to lessen damage to the patches.
-
Page 19: Maintenance And Care
INSTRUCTION Stick the electrode patches on Step 1 the holder to avoid getting dust. Wind the thread around the holder Step 2 for easy use as the picture shown. MAINTENANCE AND CARE l. When you are finished using the device, turn it off and take off the pads. Store the unit in a cool,dry place until next use. - Page 20 2. After usage, please cover the pads with the protective film and put them back in their zip lock bags. Applying a few drops water before and after usage will increase the longevity of the pads. Or stick the electrode patches on the holder and wind the thread around the holder. 3. Charge the unit at least every 3 month in event it is not used regularly.You can also use the unit with wall charger or directly from your computer using the USB cable. Warning： 1. The stimulator has no any output when it is being charged. You must take off the electrode pads from your body before the stimulator charged. 2. Charging only with this AC adaptor (Model: GDP06AV-0500550-UL, manufacturer: Shenzhen Guandexin Technology Co., Ltd ). Operation environmental for adapter Normal working ambient 5~40℃ temperature Normal working ambient ≤80%RH; Atmosphere humidity and Atmosphere Pressure: 700 ~1060hPa pressure Store and transport -20~55℃ ambient temperature Store and transport ≤93%RH; Atmosphere ambient humidity and Pressure: 700 ~1060hPa Atmosphere pressure...
- Page 21 Input:100-240V 50/60Hz 0.18A Max Output: DC5V---250mA Class II ,not applied part, not suitable for use in the Charger presence of a flammable anaesthetic mixture with air or with oxygen or nitrous oxide, continuous operation The combination of stimulator and AC adaptor is considered as medical electrical system. The AC adaptor is not considered as part of ME equipment ME system Charging the Battery 1. Turn off the controller. 2. Connect the controller and the charger with USB extension cord. Plug charger into any power outlet, green light shows charging. The charging process will last approximately 1 hour. Note: Only charge the controller when battery is completely drained the first 2 times. Unplug charger from power outlet when charging is complete. When massage strength decreases, it indicates that the device needs charging. Recharge it and then continue to use the device. Do not use the controller when charging.
-
Page 22: Customer Service
100-240V AC General - Input 50/60Hz 0.25A technological characteristics - Output DC5V---550mA Complied standards IEC60950 Labeling on the AC charger How it is connected to the device CUSTOMER SERVICE ● 24-Month Limited Warranty ● Lifetime Technical Support Warranty Extension: Register with https://www.iauvon.com/register, you could have 36 Months Free warranty AS8012-sms-v3.3-201104-70×120mm...
