- Page 1 NEON -40(HV) Vers.3.3 MULTI VOLTAGE RANGE MULTI VOLTAGE RANGE SOLAR MPPT CHARGE CONTROLLER SOLAR MPPT CHARGE CONTROLLER USER MANUAL...
-
Page 2: Salient Features

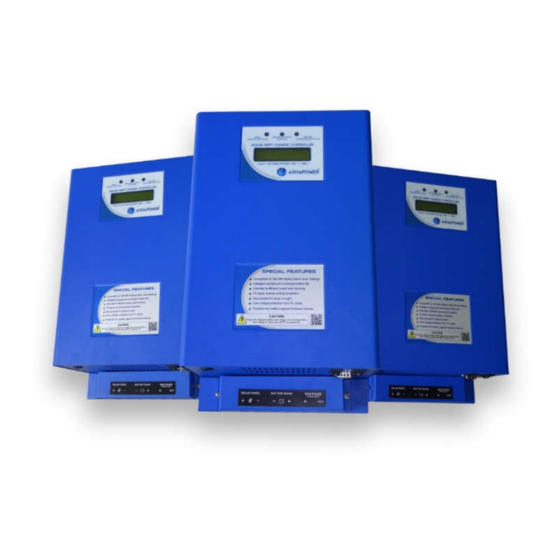

NEON -40 SOLAR MPPT CHARGE CONTROLLER ASHAPOWER® NEON-40HV Solar MPPT Charge Controllers are multi voltage range devices that are unique in its kind in the market. The same device can be used for battery banks ranging from 1 Battery(12V) up to a battery bank of 4 batteries (48V) in series. - Page 3 NEON 40 SPECIFICATIONS Max PV Array Open Circuit Voltage (Voc) 185V Max PV Array Watts Applicable 2000W 12/24/36/48 V Nominal Battery Voltage (Auto Setting) Maximum Charging Current 40A (Configurable) Maximum Tracking Efficiency 98.9% Standby Power Consumption <1.5W Overload Protection ✔ Over Charge Protection ✔...
-
Page 4: Know Your Device
KNOW YOUR DEVICE INDICATOR BLINKING BLINKING BLUE BATTERY LOW BATTERY LOW LOAD IS ON LOAD IS ON GRID WARNING TO WARNING TO SOLAR/GRID SOLAR POWER POWER AVOID AVOID HEAVY POWER STATUS LOADS PV PANEL PV PANEL VOLTAGE IS BATTERY BATTERY GREEN VOLTAGE IS LOWER THAN... - Page 5 INSTALLATION & OPERATION 1.PV Panel Grouping Using required Solar MC4 connectors and parallel connectors, group the PV panel array according to the recommended grouping chart provided. Good quality weather proof solar cables must be used. 2.Battery Bank Setup If more than one battery is used, Connect the interlinking cables (16 sq.mm minimum) tightly and check each battery separately for specific gravity and backup.
- Page 6 RECOMMENDED GROUPING OF PV PANELS Recommended PV Panel Input voltage for maximum MPPT Performance. Max.PV Panel Max.PV Panels Examples for Grouping of PV Voltage Range Battery Bank Volt Applicable Panels in Series (Voc) in Watts 36V Voc(260w panel) x 2 in series 30-120V 550W =72Voc=520w...
- Page 7 CONNECTION DIAGRAM...
- Page 8 CONNECTION DIAGRAM...
- Page 9 CONNECTION DIAGRAM...
- Page 10 CONNECTION DIAGRAM...
-
Page 11: Troubleshooting
TROUBLE SHOOTING ERROR DESCRIPTION SOLUTION CODE PV PANEL VOLTAGE IS NOT IN THE SPECIFIED LIMIT. PV PANEL VOLTAGE CHECK FOR PV PANEL GROUPING. REFER PV PANEL ERROR GROUPING MANUAL PROVIDED. CONNECTED BATTERY BANK VOLTAGE IS NOT IN BATTERY BANK VOLTAGE THE SPECIFIED LIMIT. -
Page 12: Entering Setup Mode
SETUPMODE Note: Before changing the default settings values of the device, ensure the maximum ● ampere and voltage ratings applicable for your battery type (SMF,LEAD ACID etc) and brand. Blind settings may cause severe damage to the batteries and charge controller. batteries. -
Page 13: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS 1) Solar panels should be grouped in such a way that the maximum Open Circuit Voltage (Voc) of the panels connected in series should not exceed the Maximum PV panel voltage recommended. 2) Safety precautions must be taken while grouping and connecting PV panels to the charge controller with high Voc input. - Page 14 contact@ashapower.in...
