Summary of Contents for ASHAPOWER NEON-30

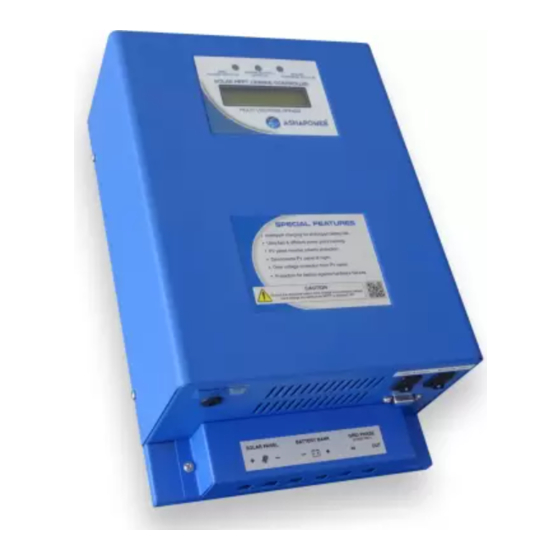

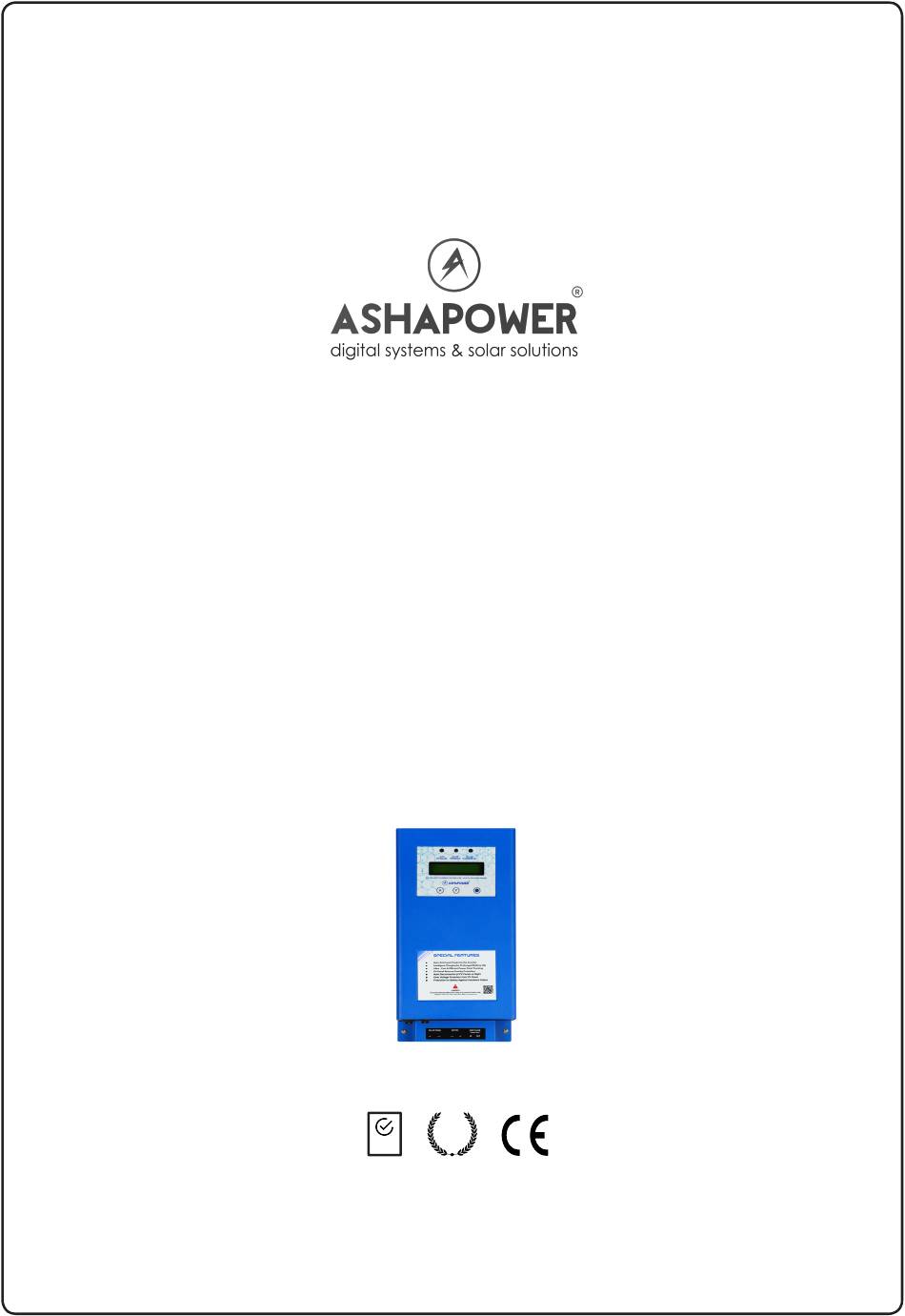

- Page 1 SOLAR MPPT CHARGE CONTROLLER NEON-30 Vers.6 9001:201 5 CERTIFIED COMPLIANT USER MANUAL...
-
Page 2: Salient Features
NEON-30 Vers.6 SOLAR MPPT CHARGE CONTROLLER ® ASHAPOWER NEON-30Vers.6 Solar MPPT Charge Controllers are multi voltage range devices with unique features.The same device can be used for battery banks ranging from 1 Battery (12V) up to a battery bank of 4 batteries (48V) in series. The battery voltage is selected by the device itself when we connect the battery bank across its terminal. - Page 3 NEON-30 Vers.6 SPECIFICATIONS 12V/100V Voc 24V/150V Voc Max PV Array Open Circuit Voltage (Voc) 36V/160V Voc 48V/185V Voc 12V/600Wp 24V/1100Wp Max PV Array in Watts Applicable 36V/1600Wp 48V/2000Wp 12V/24V/36V/48 V Nominal Battery Voltage (Auto Setting) Maximum Charging Current 98.9% Maximum Tracking Efficiency <1.5W...
-
Page 4: Know Your Device
KNOW YOUR DEVICE NEON-30 Vers.6 LED INDICATORS 2x16 LCD SETTINGS BUTTON [ENTER] SETTINGS BUTTON [ SETTINGS BUTTON [ MPPT ON/OFF SWITCH GRID BYPASS SWICH TERMINAL COVER SOLAR/GRID MONITOR PORT I/O POWER TERMINALS INDICATOR BLINKING BLUE LOAD IS ON LOAD IS ON GRID... - Page 5 NEON-30 Vers.6 INSTALLATION & OPERATION 1.PV Panel Grouping : Using Solar MC4 connectors and parallel connectors, group the PV panel array according to the examples given. Good quality weather proof solar DC cables must be used 2.Battery Bank Setup : If more than one battery is used, connect the inter linking cables tightly and check each battery separately for speci c gravity and backup .The...
- Page 6 NEON-30 Vers.6 EXAMPLES FOR GROUPING OF PV PANELS *Follow These Examples to Achieve maximum MPPT performance* Battery Bank Max.PV Panel Examples for Grouping Max.PV Panels Volt Voltage Range Applicable PV Panels in Series in Watts (Voc) 1) 21 voc(100w panel)x4panel...
- Page 7 CONNECTION DIAGRAM...
- Page 8 CONNECTION DIAGRAM...
- Page 9 CONNECTION DIAGRAM...
-
Page 10: Troubleshooting
TROUBLE SHOOTING ERROR CODE DESCRIPTION SOLUTION PV PANEL VOLTAGE IS NOT IN THE SPECIFIED LIMIT. CHECK FOR PV PV PANEL VOLTAGE PANEL GROUPING. ERROR REFER PV PANEL GROUPING MANUAL PROVIDED. CONNECTED BATTERY BANK VOLTAGE IS NOT IN THE SPECIFIED BATTERY BANK VOLTAGE LIMIT. -
Page 11: Entering Setup Mode
ENTERING SETUP MODE ● Note: Before changing the default settings values of the device, ensure the maximum ampere and voltage ratings applicable for your battery type and brand (SMF, LEAD-ACID, GEL) This device is not suitable for Lithium Phosphate battery charging. -
Page 12: Mppt Settings
MPPT SETTINGS MENU TYPE DESCRIPTION RANGE When MPPT is charging the battery, note DEFAULT the charging Amp reading in MPPT display. Connect a true RMS DC clamp 1.CAL-AMP (AMPS meter (FLUKE brand) to the +ve wire of calibration CALIBRATION) the battery and note the reading in its display.If there is difference in reading increase / decrease the default value till both readings are same... - Page 13 IMPORTANT SAFETY PRECAUTIONS Lead Acid batteries produce Hydrogen gas which is highly flammable 1) Never use a ame or any kind of spark producing device near fully charged batteries as it may cause an explosion of the batteries and re hazard (eg: Checking battery water level under a candle ame, spark from metal cutter or spark from loose contact of battery connecting wires ) 2) Maintenance of the batteries and pv panel array at regular intervals make the solar...
- Page 14 NOTES www.ashapower.in...
