- Page 1 INNOVATING TOMORROW SOLAR MPPT CHARGE CONTROLLER MULTI VOLTAGE RANGE 12V/24V SELF SETTING SURYA-50 9001:201 5 CERTIFIED COMPLIANT USER MANUAL Vers.7.7...
-
Page 2: Salient Features

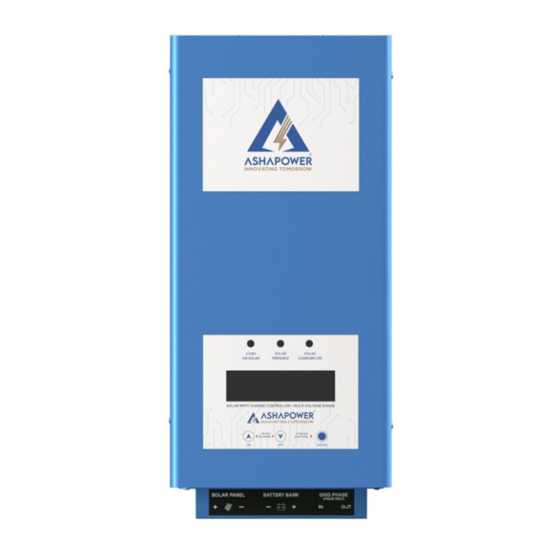

SOLAR MPPT CHARGE CONTROLLER SURYA-50 Vers.7.7 Thank you for purchasing ASHAPOWER® SURYA-50 Vers. MPPT charge controller.It is a multi voltage range device with unique features.The same device can be used for charging 1 battery (12V ) to a battery bank of 2x12V (24V) in series.The device automatically detects and con gures itself to the connected battery bank.The high Voc... - Page 3 LED INDICATORS 2x16 LCD DISPLAY SETTINGS BUTTON ( ) ENTER KNOW YOUR DEVICE SETTINGS BUTTON SURYA-50 Vers.7.7 SETTINGS BUTTON TERMINAL COVER IN/OUT POWER TERMINALS INDICATOR BLINKING LOAD IS ON GRID BLUE POWER BATTERY LOW LOAD IS ON WARNING INDICATION (IF ONLY GRID IS CONNECTED...
- Page 4 SURYA-50 Vers.7.7 Connect the cables from PV panels to the solar positive and negative terminals of the charge controller. If the PV panel voltage and polarity is correct green LED indicator on the front panel glows on. When the detected PV panel voltage is higher than the connected battery bank voltage red LED indicator glows on indicating battery charging.
- Page 5 SURYA-50 Vers.7.7 EXAMPLES FOR GROUPING OF PV PANELS Follow these examples to achieve maximum MPPT performance Max.PV Panel Battery Max.PV Panels PV Panels used in Watts Bank Volt Voltage Applicable in Range (Voc) Watts 45 Voc (445W PANEL) X 2...
-
Page 6: Connection Diagrams
890W/12V OFF GRID SOLAR POWER PLANT SURYA-50 Vers.7.7 CONNECTION DIAGRAMS ASHAPOWER CHARGE CONTROLLER LOAD LOAD LOAD GRID GRID GRID INVERTER INVERTER INVERTER 45Voc , 445W PV PANELS BAT IN BAT IN BAT IN 9 10 11 4 5 6 12V BATTERY BANK... -
Page 7: Troubleshooting
SURYA-50 Vers.7.7 TROUBLE SHOOTING ERROR DESCRIPTION SOLUTION CODE PV PANEL VOLTAGE PV PANEL VOLTAGE IS NOT IN THE SPECIFIED LIMIT. CHECK FOR PV PANEL GROUPING. ERROR REFER PV PANEL GROUPING MANUAL PROVIDED. BATTERY BANK VOLTAGE CONNECTED BATTERY BANK VOLTAGE IS NOT IN THE SPECIFIED LIMIT. CHECK FOR... - Page 8 charging voltage, to remove sulfation and bring all cells of the battery to similar levels by increasing the voltage to 2.50V/cell or 10 percent higher than the recommended charging voltage. Equalization charging also equalize acid stratification, a condition where acid concentration is greater at the bottom of stationary batteries than at the top level.
- Page 9 Changing the default settings of MPPT charge controller Before changing the default settings values of the device, ensure the maximum ampere and voltage Note: ratings applicable for your battery type and brand (SMF, LEAD-ACID, GEL) This device is not designed for direct charging of lithium Phosphate battery .
- Page 13 16/404-H Ashapower Tower, Kondotty-Areekode Main Road, Kizhisseri, Kuzhimanna PO, Malappuram DIST,Kerala-673641, INDIA. Support :+91 7594 82 1003 Email : contact@ashapower.in www.ashapower.in INNOVATING TOMORROW...
